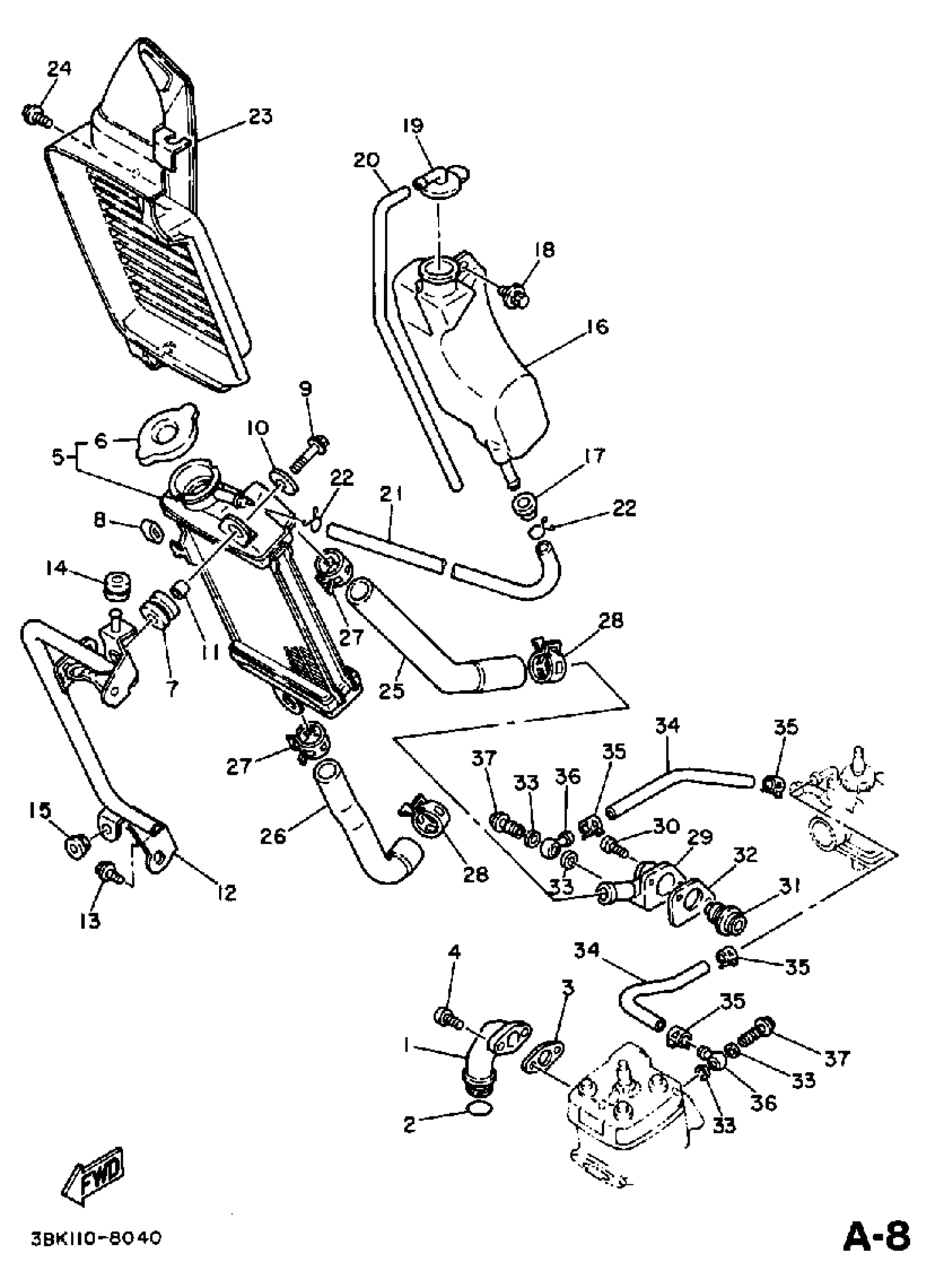

Yamaha DT50U (ENDURO) 1988 RADIATOR - HOSE Diagram

#

Description
Price

1

JOINT

5R2-12446-00-00

Unavailable

2

. O-RING

93210-16275-00

Unavailable

3

GASKET

5R2-12434-01-00

$8.99

4

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

5

RADIATOR ASSEMBLY

17W-12460-01-00

Unavailable

6

CAP, RADIATOR

4FL-12462-00-00

$62.99

7

GROMMET (29L)

90480-15363-00

$8.49

8

GROMMET

90480-01438-00

Unavailable

9

BOLT, FLANGE

95817-06020-00

$3.81

10

WASHER, PLATE

90201-06086-00

$7.49

11

COLLAR

90387-07020-00

$8.49

12

STAY, RADIATOR

17W-12464-00-00

Unavailable

13

BOLT, FLANGE

95817-06012-00

$1.43

14

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

15

GROMMET

90480-10017-00

Unavailable

16

TANK, RECOVERY

(17W-21871-01-00)

Unavailable

17

GROMMET

(90480-13295-00)

Unavailable

18

BOLT, WITH WASHER

90119-06152-00

Unavailable

19

CAP

10X-21815-00-00

Unavailable

20

HOSE (L800)

90445-11083-00

Unavailable

21

PIPE 3

(17W-12483-00-00)

Unavailable

22

CLIP

90467-100A1-00

Unavailable

23

COVER, RADIATOR

17W-12467-00-00

Unavailable

23

COVER, RADIATOR

17W-12467-20-00

Unavailable

24

SCREW, BINDING (8J0)

90154-05005-00

Unavailable

25

PIPE 1

17W-12481-00-00

Unavailable

26

PIPE 2

17W-12482-00-00

Unavailable

27

CLIP, SCISSOR

90467-21058-00

Unavailable

28

CLIP (10V)

90467-23067-00

Unavailable

29

JOINT 1

30Y-12469-00-00

Unavailable

30

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

31

THERMOSTAT

30Y-12411-01-00

Unavailable

32

GASKET, COVER

4BA-12414-00-00

Unavailable

33

GASKET (4V2)

90430-06166-00

Unavailable

34

PIPE 3

1HK-12483-00-00

Unavailable

35

CLIP, SCISSOR

90467-11108-00

Unavailable

36

UNION(1HK)

90405-06037-00

Unavailable

37

BOLT, UNION

90401-06004-00

Unavailable
