1988 Yamaha Enduro (DT50U) Frame Diagram

← All diagrams

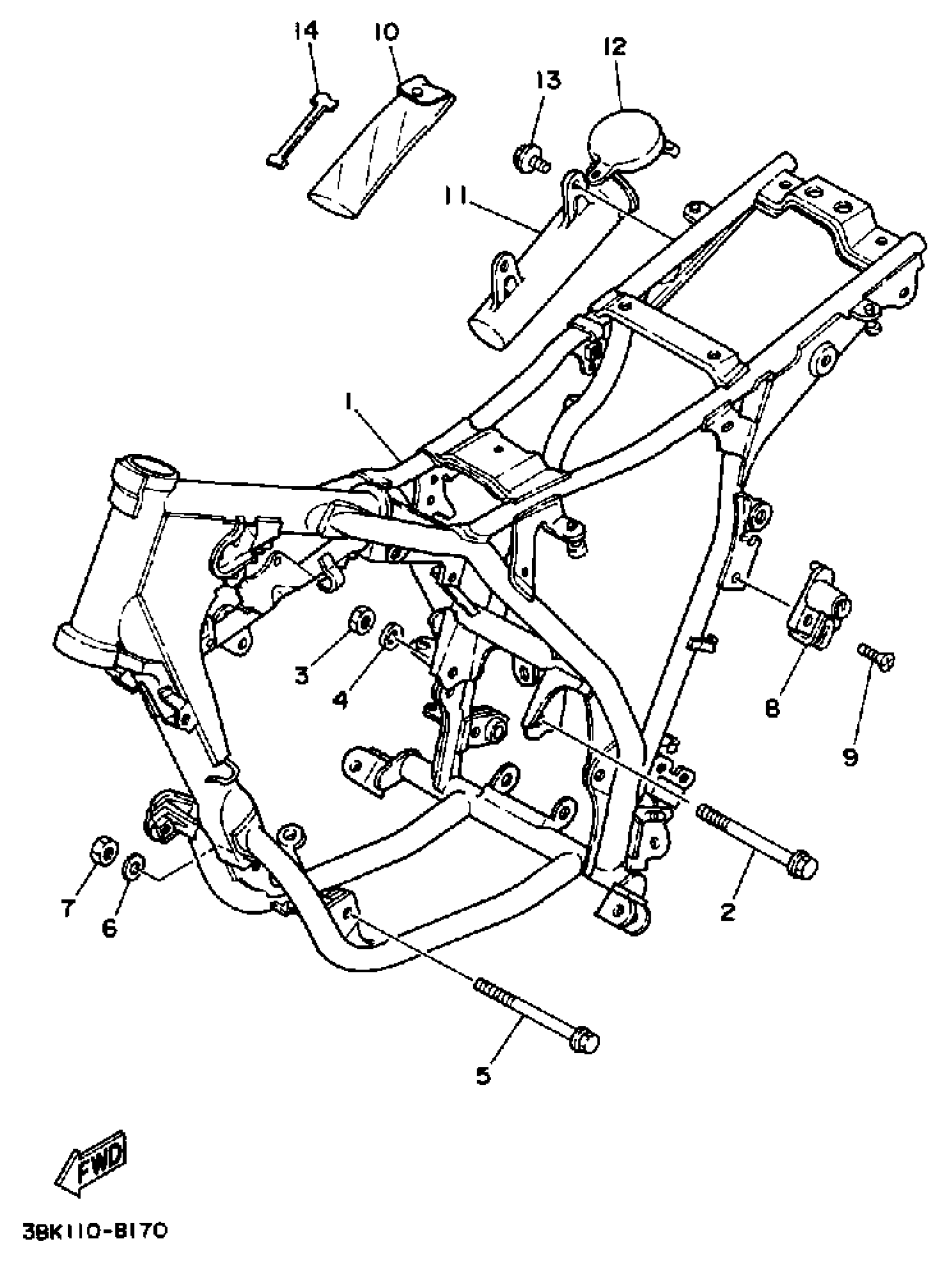

Find the part on the Frame diagram for your 1988 Yamaha Enduro (DT50U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Yamaha Enduro (DT50U) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

3BK-21110-00-33

1
Out of stock

1

FRAME

3BK-21110-00-UJ

1
Out of stock

2

BOLT(30W)

90109-101A0-00

—

$14.05

In stock

3

NUT, U

95614-10100-00

1

$5.86

In stock

4

WASHER, PLATE

92990-10600-00

1

$2.61

In stock

5

BOLT, FLANGE

95817-08125-00

1
Out of stock

6

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

7

NUT, U

95617-08100-00

1

$6.78

In stock

8

HELMET HANGER ASSY

5H0-21308-01-00

1
Out of stock

9

SCREW, FLAT

98707-06018-00

1

$5.09

In stock

10

TOOL KIT

2U2-W2810-00-00

1
Out of stock

11

BOX, TOOL

17W-28173-00-00

1
Out of stock

12

LID

17W-28185-00-00

—

$14.62

In stock

13

BOLT, WITH WASHER

90119-06152-00

1

$2.74

In stock

14

GAUGE, LEVEL

3M7-15361-00-00

1
Out of stock
