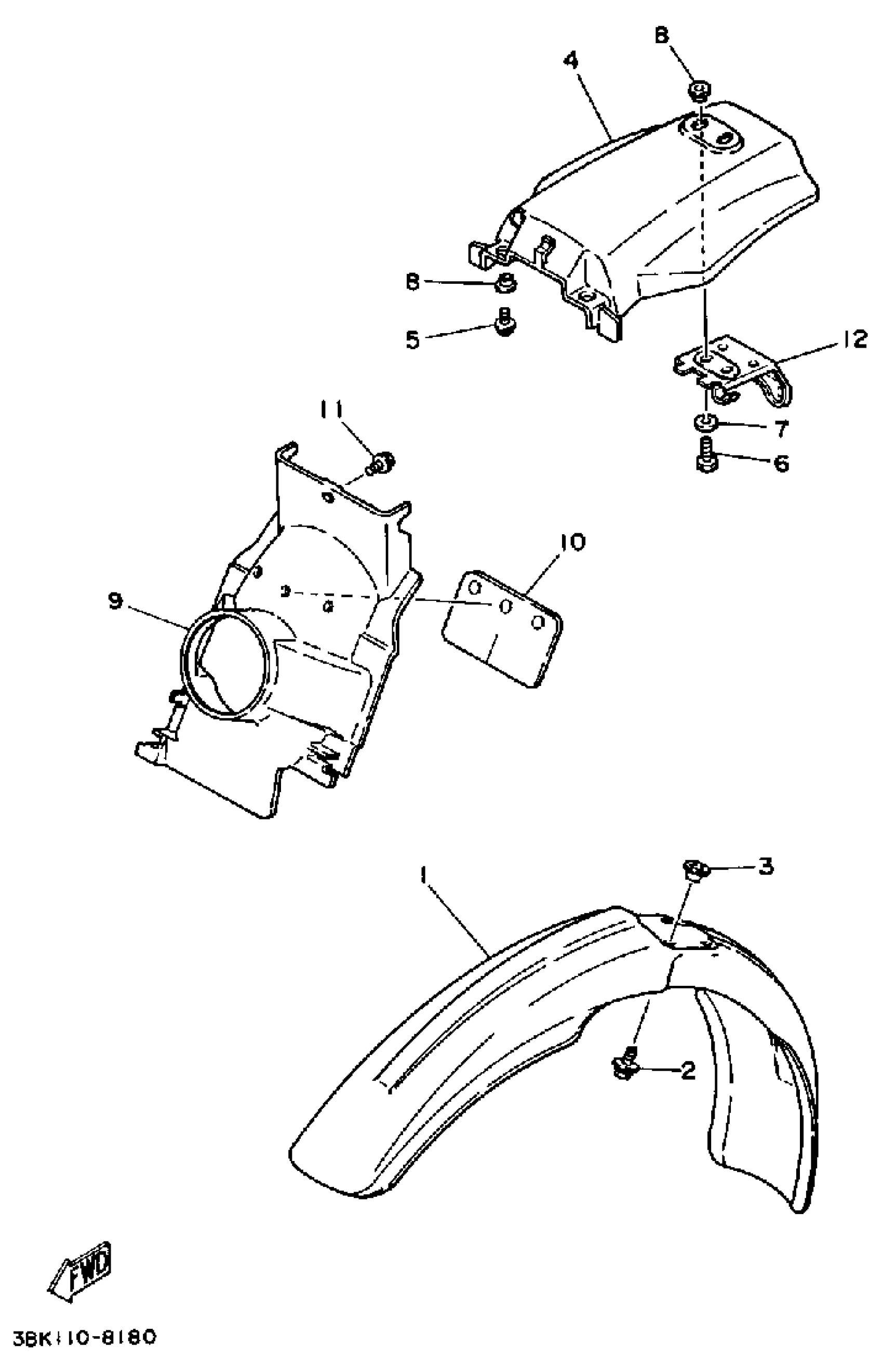

Yamaha DT50U (ENDURO) 1988 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

17W-21511-00-00

Unavailable

1

FENDER, FRONT

17W-21511-20-00

Unavailable

2

BOLT, WITH WASHER (10V)

90119-06063-00

$5.86

3

COLLAR (8G8)

90387-06681-00

$6.17

4

FENDER, REAR

17W-21611-00-00

Unavailable

4

FENDER, REAR

17W-21611-20-00

Unavailable

5

BOLT, WITH WASHER (10V)

90119-06063-00

$5.86

6

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

7

WASHER, SPRING

92995-06100-00

$2.95

8

COLLAR (899 INTAKE)

90387-06500-00

$6.28

9

GUARD, MUD

17W-21629-00-00

Unavailable

10

FLAP

1M1-21621-00-00

$12.80

11

BOLT, WITH WASHER

90119-06226-00

$2.12

12

BRACKET, REAR STAY

3BK-21688-00-00

Unavailable
