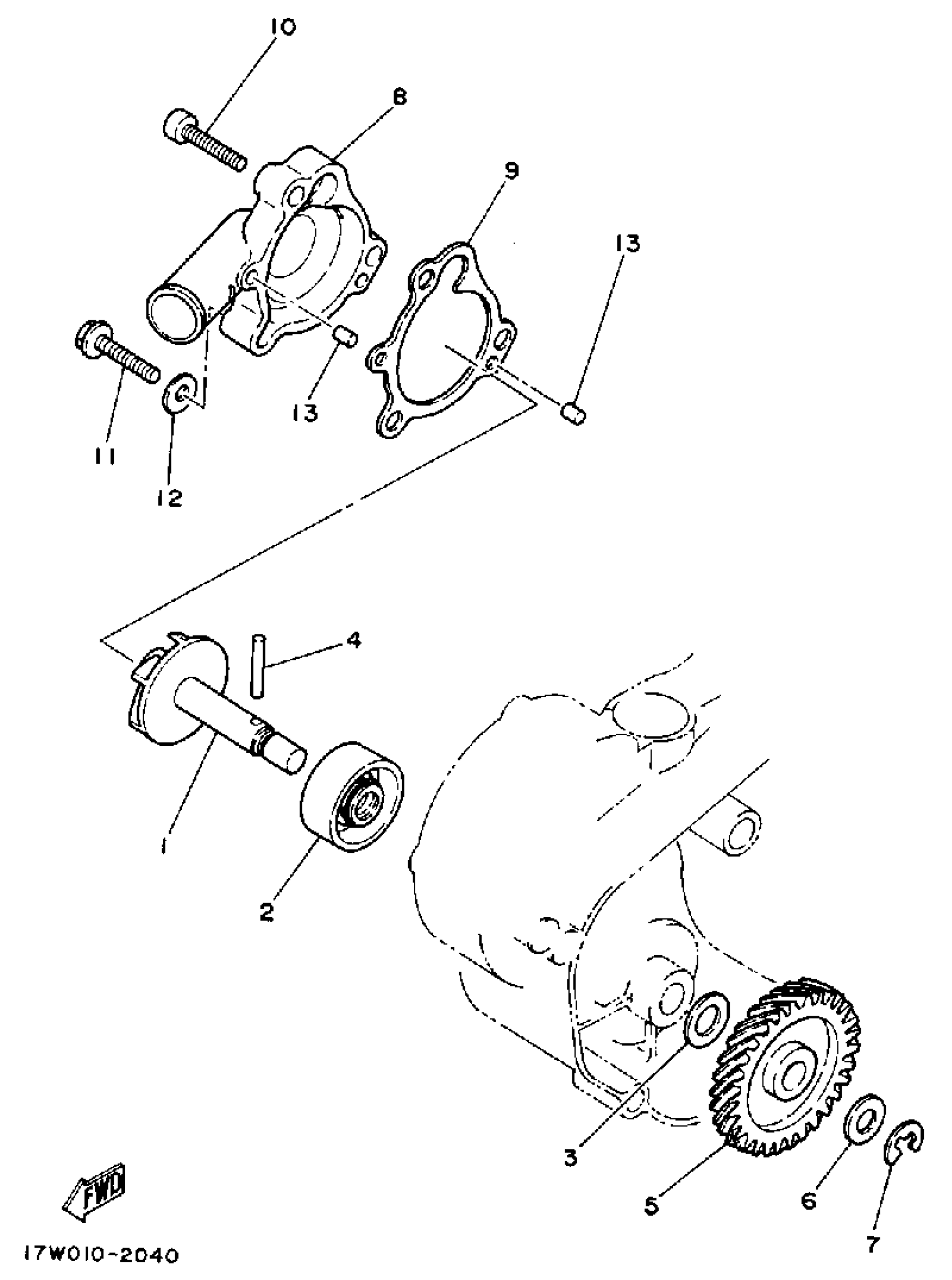

Yamaha DT50LC (DT50W) 1988 WATER PUMP Diagram

#

Description
Price

1

IMPELLER SHAFT ASSY

5R2-12450-00-00

Unavailable

2

OIL SEAL

93103-10011-00

$37.49

3

WASHER PLATE (3L6)

90201-08759-00

$2.34

4

PIN,DOWEL (137)

93603-22028-00

$2.04

5

GEAR, IMPELLER SHAF

5R2-12459-00-00

Unavailable

6

WASHER, PLATE (5F7)

90201-08512-00

$5.75

7

CIRCLIP

99080-07600-00

$2.82

8

COVER, HOUSING

5R2-12422-00-00

Unavailable

9

GASKET, HOUSING COVER

5R2-12428-02-00

$3.71

10

SCREW, PAN HEAD (76T)

98517-06025-00

$2.90

11

BOLT, FLANGE

95817-06025-00

Unavailable

12

GASKET (4V2)

90430-06166-00

$3.22

13

PIN,DOWEL (603)

93604-10011-00

$4.89
