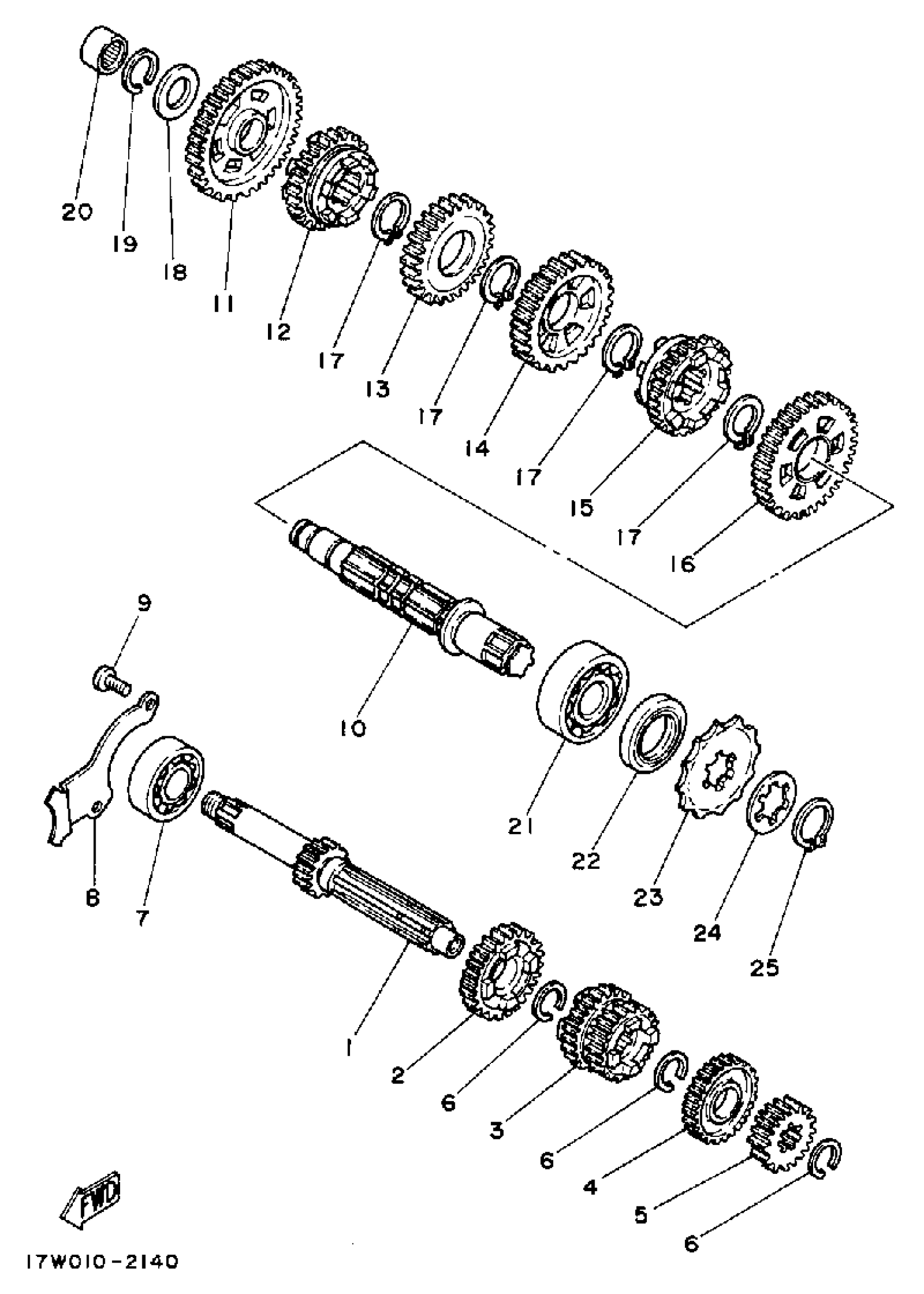

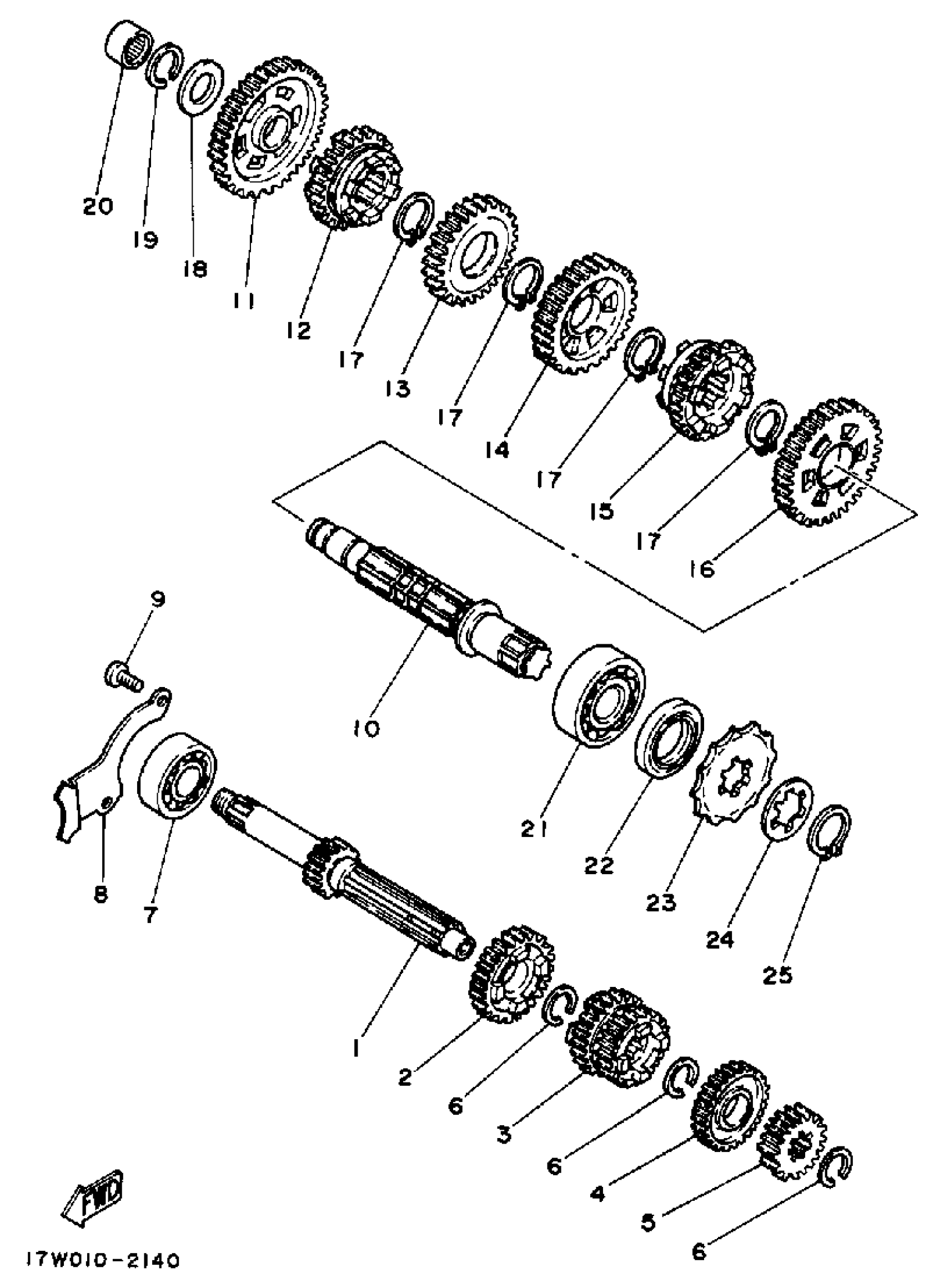

Yamaha DT50LC (DT50W) 1988 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

5R2-17411-00-00

Unavailable

2

GEAR, 5TH PINION

5R2-17151-00-00

Unavailable

3

GEAR, 3RD PINION

5R2-17131-01-00

Unavailable

4

GEAR, 6TH PINION

5R2-17161-01-00

Unavailable

5

GEAR, 2ND PINION

5R2-17121-00-00

Unavailable

6

CIRCLIP (4V0)

93440-16089-00

$7.49

7

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

8

PLATE, COVER

5R2-17471-00-00

Unavailable

9

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

10

AXLE, DRIVE

11A-17421-00-00

Unavailable

11

GEAR, 1ST WHEEL

5R2-17211-00-00

Unavailable

12

GEAR,5TH WHEEL

5R2-17251-01-00

Unavailable

13

GEAR, 4TH WHEEL

5R2-17241-00-00

Unavailable

14

GEAR, 3RD WHEEL

5R2-17231-00-00

Unavailable

15

GEAR, 6TH WHEEL

5R2-17261-01-00

Unavailable

16

GEAR, 2ND WHEEL

5R2-17221-00-00

Unavailable

17

CIRCLIP (525)

93410-20038-00

Unavailable

18

SHIM, DRIVE AXLE

164-17427-00-06

Unavailable

19

CIRCLIP

93440-15012-00

Unavailable

20

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

Unavailable

21

BEARING(1YW)

93306-20461-00

Unavailable

22

OIL SEAL (20X38X5-517)

93102-20143-00

Unavailable

23

SPROCKET,DRIVE 13T(5171746131)

93812-13022-00

Unavailable

24

WASHER (4V0)

90209-16206-00

Unavailable

25

CIRCLIP(13H)

99009-18400-00

Unavailable
