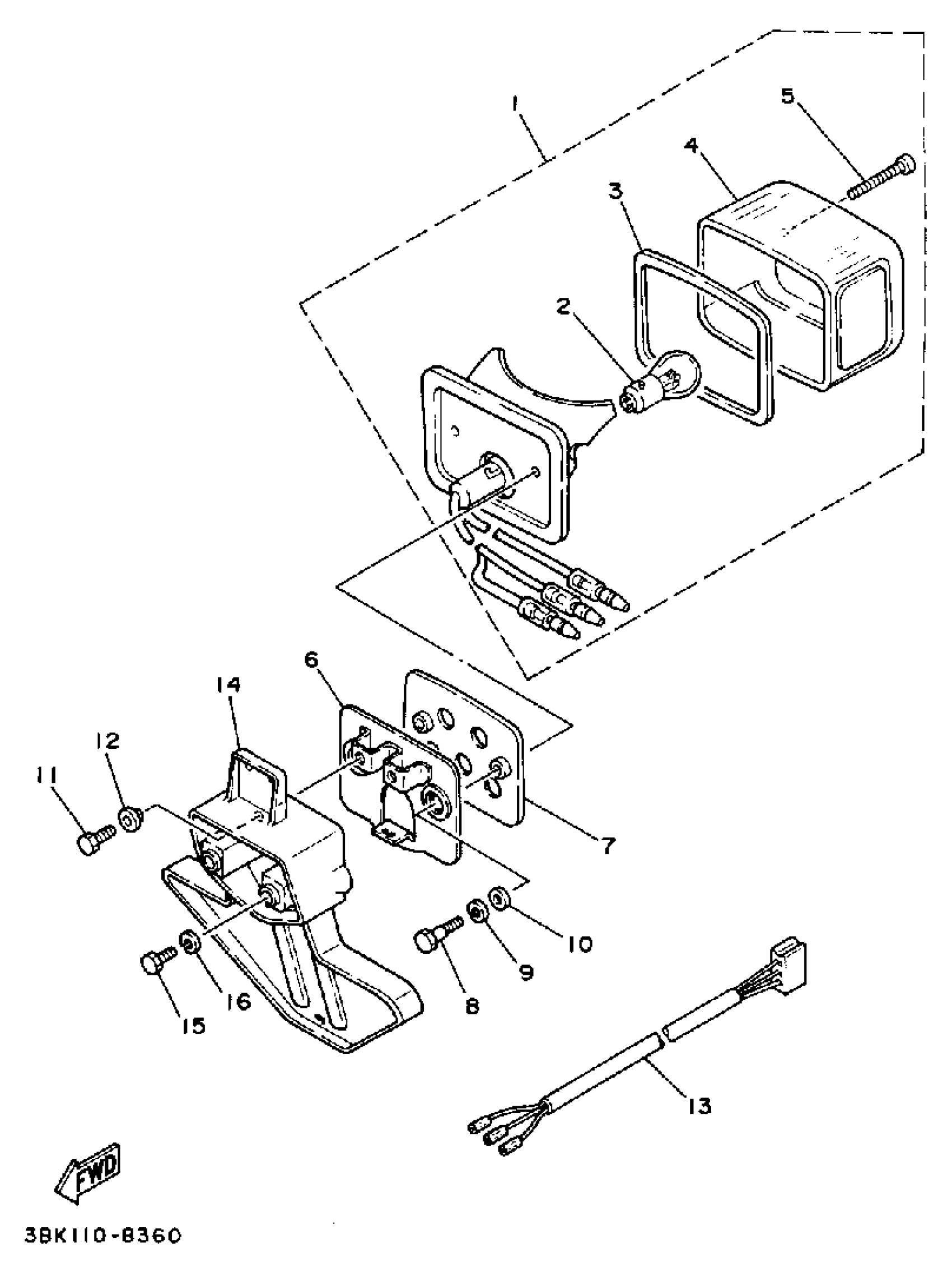

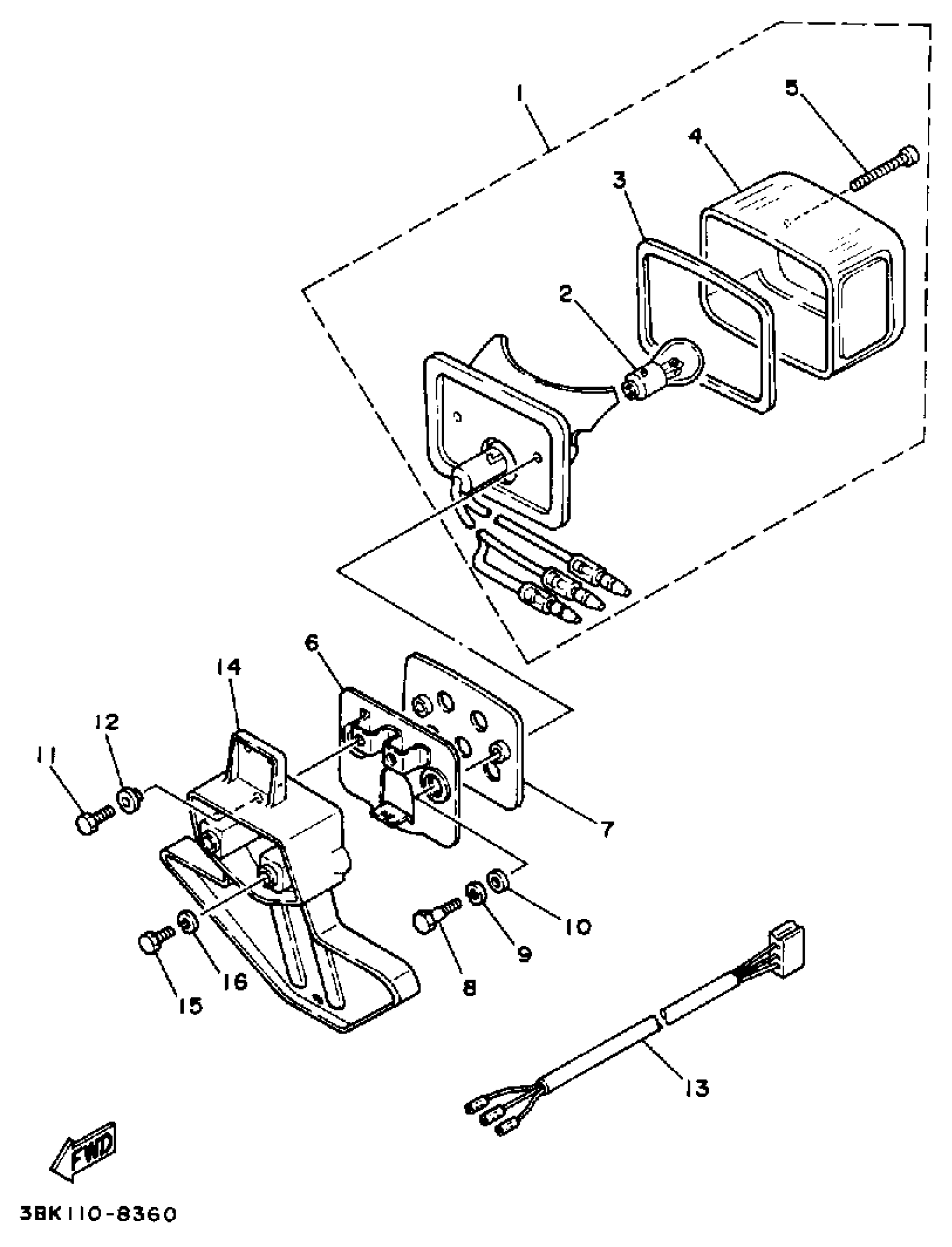

Yamaha DT50LC (DT50W) 1988 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLY

1M1-84510-60-00

Unavailable

2

. BULB

1M1-84514-60-00

Unavailable

3

GASKET, TAIL LENS

1M1-84523-60-00

$13.49

4

LENS, TAIL LAMP

1M1-84521-60-00

$39.99

5

SCREW, ADJUSTING

5BF-8433E-00-00

$7.99

6

BRACKET, TAILLIGHT

3BK-84519-00-00

Unavailable

7

DAMPER

4L0-84753-00-00

Unavailable

8

BOLT 337847520000

90109-06005-00

$7.49

9

WASHER, SPECIAL (498)

90209-08125-00

$11.49

10

WASHER, PLATE (4L0)

90201-083A0-00

$9.49

11

BOLT (661)

97013-06012-00

$5.60

12

C0LLAR

90387-062M9-00

$9.49

13

CORD, TAILLIGHT

3BK-84517-00-00

Unavailable

14

BRACKET, LICENSE

3BK-21685-00-00

Unavailable

15

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

16

WASHER, SPRING

92995-06100-00

Unavailable
