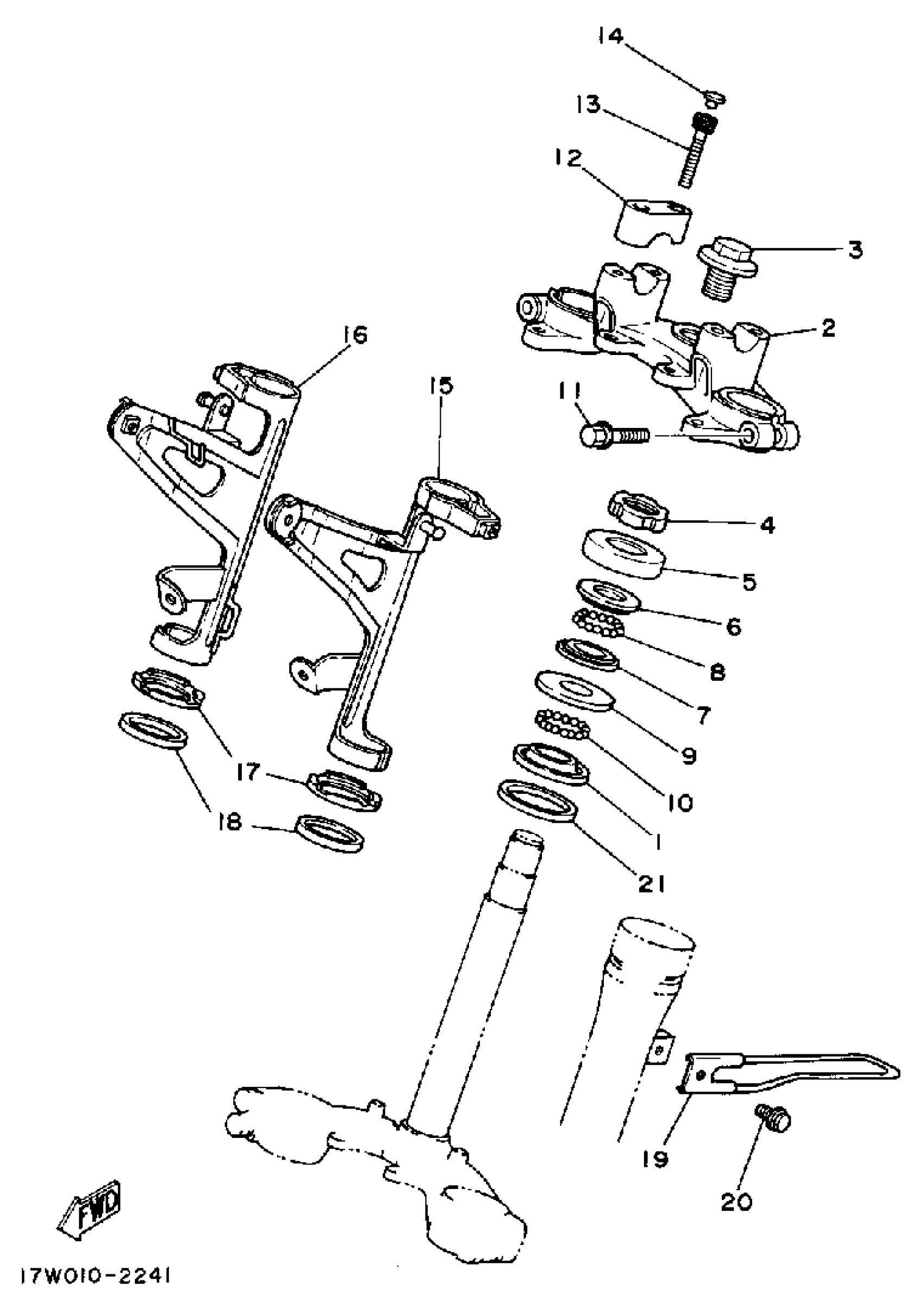

Yamaha DT50LC (DT50W) 1988 STEERING Diagram

#

Description
Price

1

RACE, BALL 1

B6E-23411-00-00

$8.49

2

CROWN, HANDLE

17W-23435-00-98

Unavailable

3

BOLT (2A2)

90105-14102-00

$5.60

4

NUT

90179-25004-00

$24.99

5

COVER, BALL RACE

122-23416-00-00

$7.99

6

RACE, BALL 1

BP2-23411-00-00

$11.49

7

RACE, BALL 2

BP2-23412-00-00

$7.49

8

BALL

93503-16003-00

$2.72

9

RACE, BALL 2

B6E-23412-00-00

$13.49

10

BALL

93501-04011-00

$8.49

11

BOLT, FLANGE

95814-08040-00

$4.72

12

HOLDER, HANDLE UPR

5R2-23441-00-98

Unavailable

13

BOLT,SOCKET

91317-06035-00

Unavailable

14

PLUG

90338-05010-00

$8.49

15

STAY, FLASHER

17W-23327-00-90

Unavailable

16

STAY, FLASHER

17W-23328-00-90

Unavailable

17

GASKET, UPPER CVR 1

5J0-23137-00-00

Unavailable

18

WASHER, SPECIAL 1

5J0-23385-00-00

Unavailable

19

HOLDER, CABLE 1

17W-23318-00-00

Unavailable

20

BOLT, FLANGE

95812-06010-00

Unavailable

21

SEAL, DUST

164-23462-00-00

Unavailable
