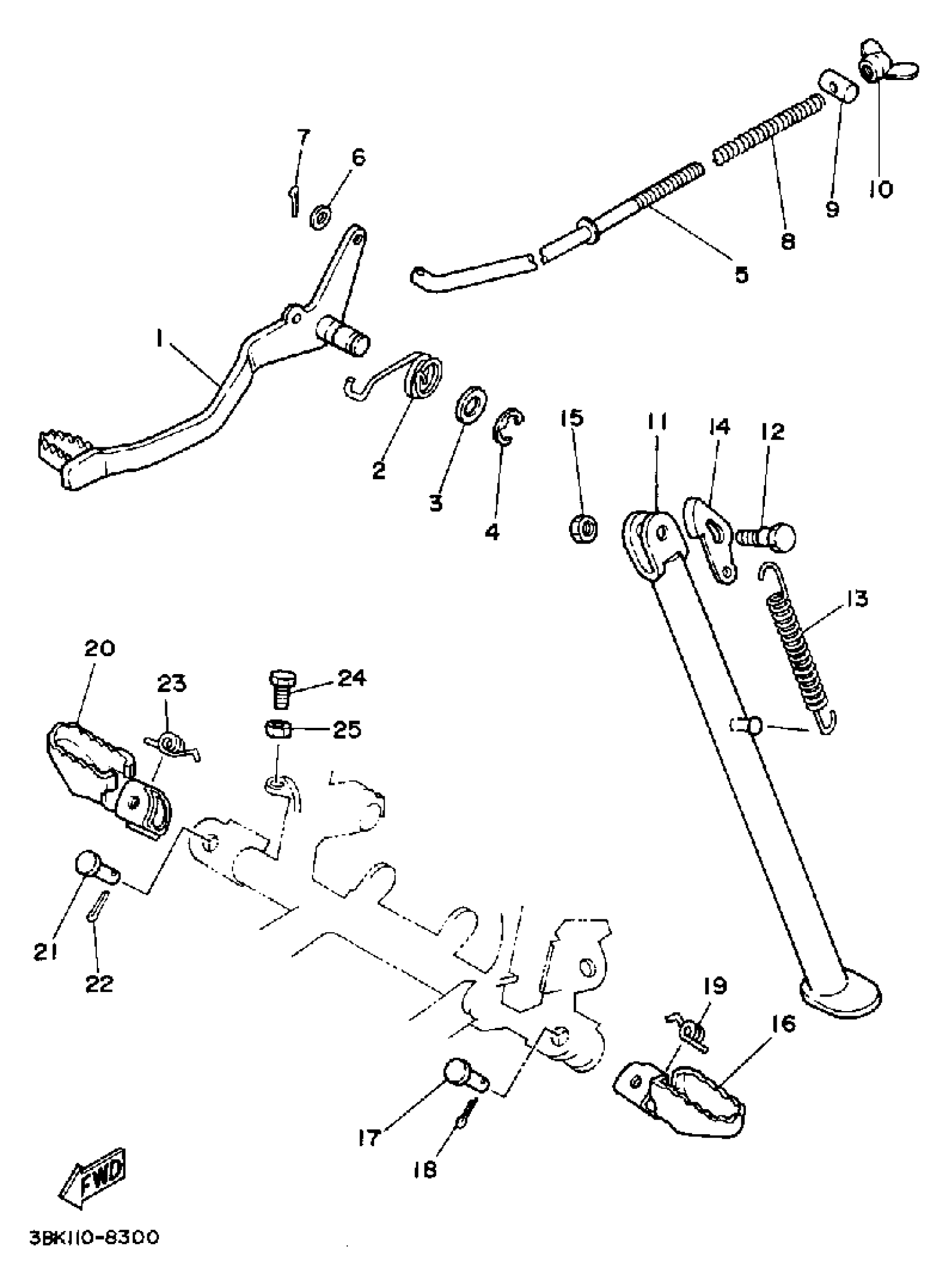

Yamaha DT50LC (DT50W) 1988 STAND - FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

33J-27200-00-00

Unavailable

2

SPRING, TORSION

90508-32560-00

Unavailable

3

WASHER PLATE 611441260000

90201-14212-00

$8.49

4

CIRCLIP (137)

93430-10015-00

$9.49

5

ROD, BRAKE

17W-27231-00-00

Unavailable

6

WASHER, PLAIN (646)

92990-06600-00

$2.80

7

PIN, COTTER

91490-20025-00

$1.99

8

SPRING, (180-27236-00)

90501-10245-00

$8.49

9

PIN 1562723700

90249-12008-00

$8.49

10

NUT (25K)

90179-06411-00

$8.49

11

STAND, SIDE

17W-27311-02-00

Unavailable

12

BOLT 122273170100

90109-08032-00

$8.49

13

SPRING, MAIN STAND

4KN-27116-00-00

$13.49

14

LINK, SIDE STAND

5Y1-27315-00-00

$15.49

15

NUT

90185-08055-00

$9.49

16

FOOTREST 1

22W-27411-01-90

Unavailable

17

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

18

PIN, COTTER

91490-20025-00

$1.99

19

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

20

FOOTREST 2

22W-27421-01-90

Unavailable

21

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

22

PIN, COTTER

91490-20025-00

$1.99

23

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

24

BOLT, HEXAGON

97017-06020-00

Unavailable

25

NUT(650)

95380-06700-00

Unavailable
