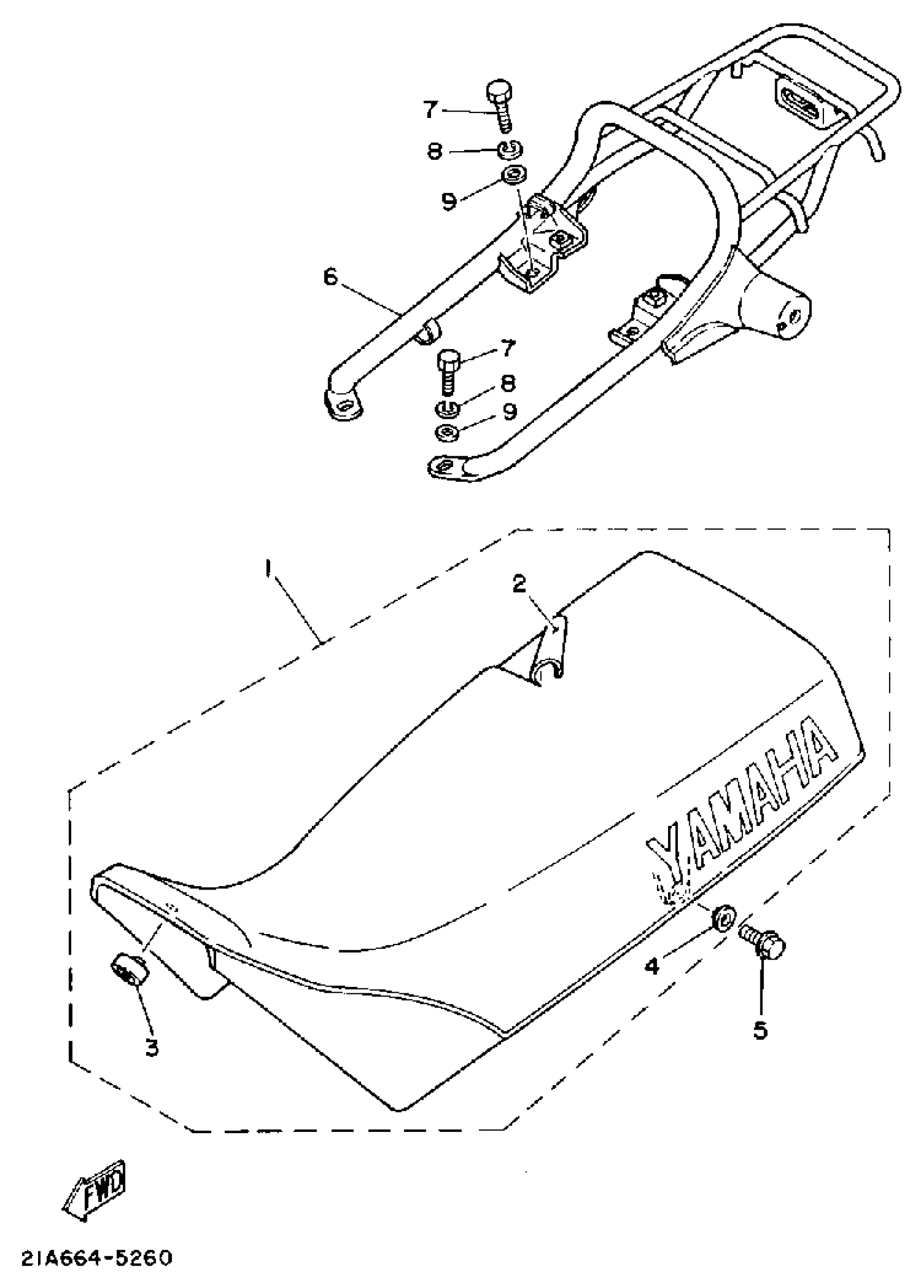

Yamaha DT50LC (DT50W) 1988 SEAT Diagram

#

Description
Price

1

SEMI-DBL SEAT ASSEMBLY

17W-24770-30-00

Unavailable

1

SEMI-DBL SEAT ASSEMBLY

33J-24770-20-00

Unavailable

2

. COVER, DOUBLE SEAT

17W-24731-30-00

Unavailable

2

. COVER, DOUBLE SEAT

33J-24731-20-00

Unavailable

3

STOPPER, MAIN STAND

371-27114-00-00

$5.42

4

COLLAR (899 INTAKE)

90387-06500-00

$6.28

5

BOLT, FLANGE

95817-06016-00

$1.40

6

SUB CARRIER ASY

17W-24830-02-00

Unavailable

7

BOLT, HEXAGON

97013-08016-00

$1.24

8

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

9

.. WASHER, PLATE

92990-08600-00

$2.17
