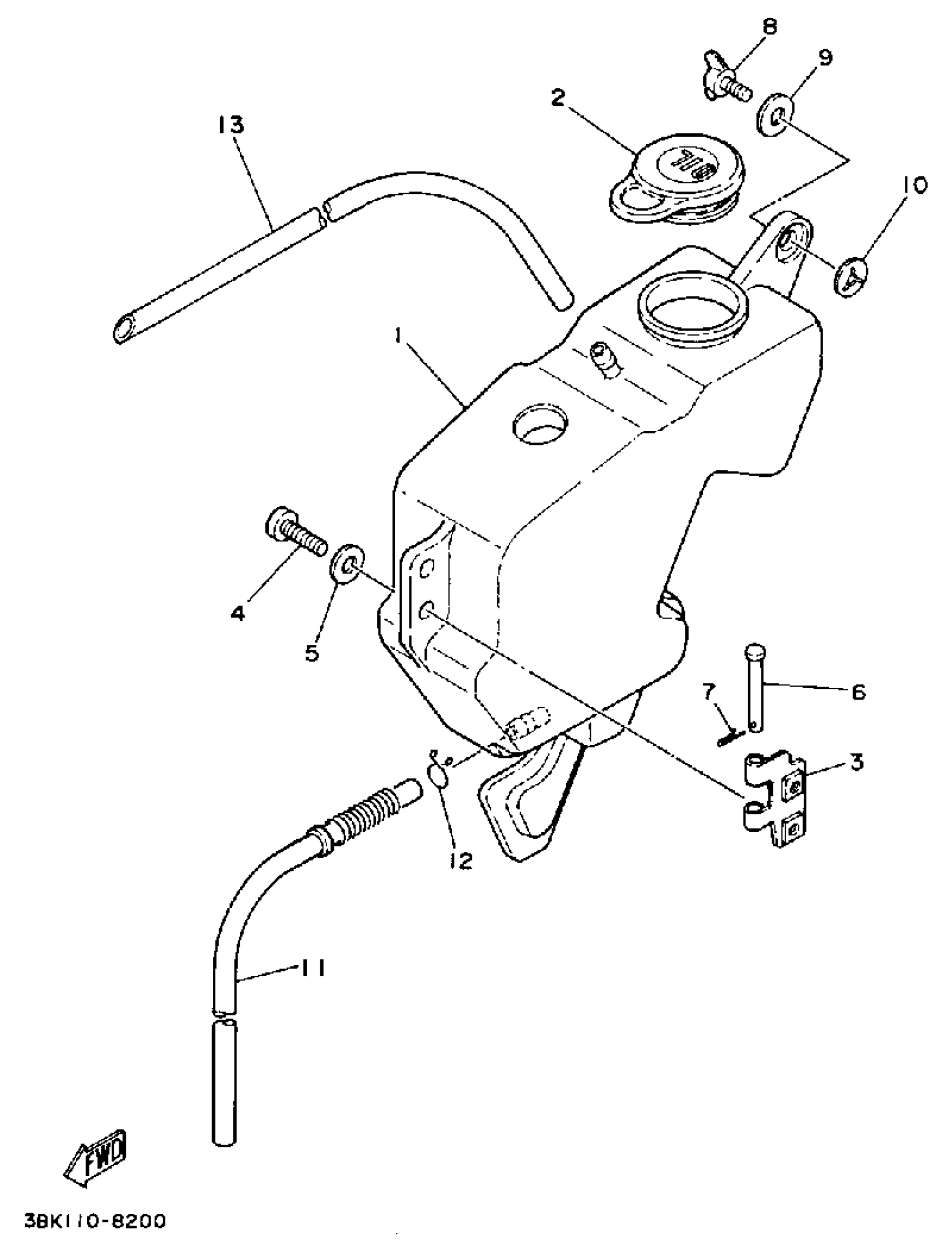

Yamaha DT50LC (DT50W) 1988 OIL TANK Diagram

#

Description
Price

1

TANK, OIL (17W)

99999-02903-00

Unavailable

2

BODY, CAP

10V-21771-00-00

$27.11

3

HINGE

(17W-21796-00-00)

Unavailable

4

SCREW, PAN

98507-06014-00

$5.76

5

WASHER, PLAIN (646)

92990-06600-00

$1.84

6

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

7

CLIP (156-83525-00)

90468-10050-00

$2.16

8

BOLT, WING

90122-06015-00

Unavailable

9

WASHER, PLATE

90201-06020-00

$5.86

10

PLATE

4U5-2176E-00-00

$5.99

11

PIPE, OIL

21A-21766-00-00

Unavailable

12

CLIP 101235600

90467-08003-00

$5.88

13

PIPE

22F-14197-00-00

Unavailable
