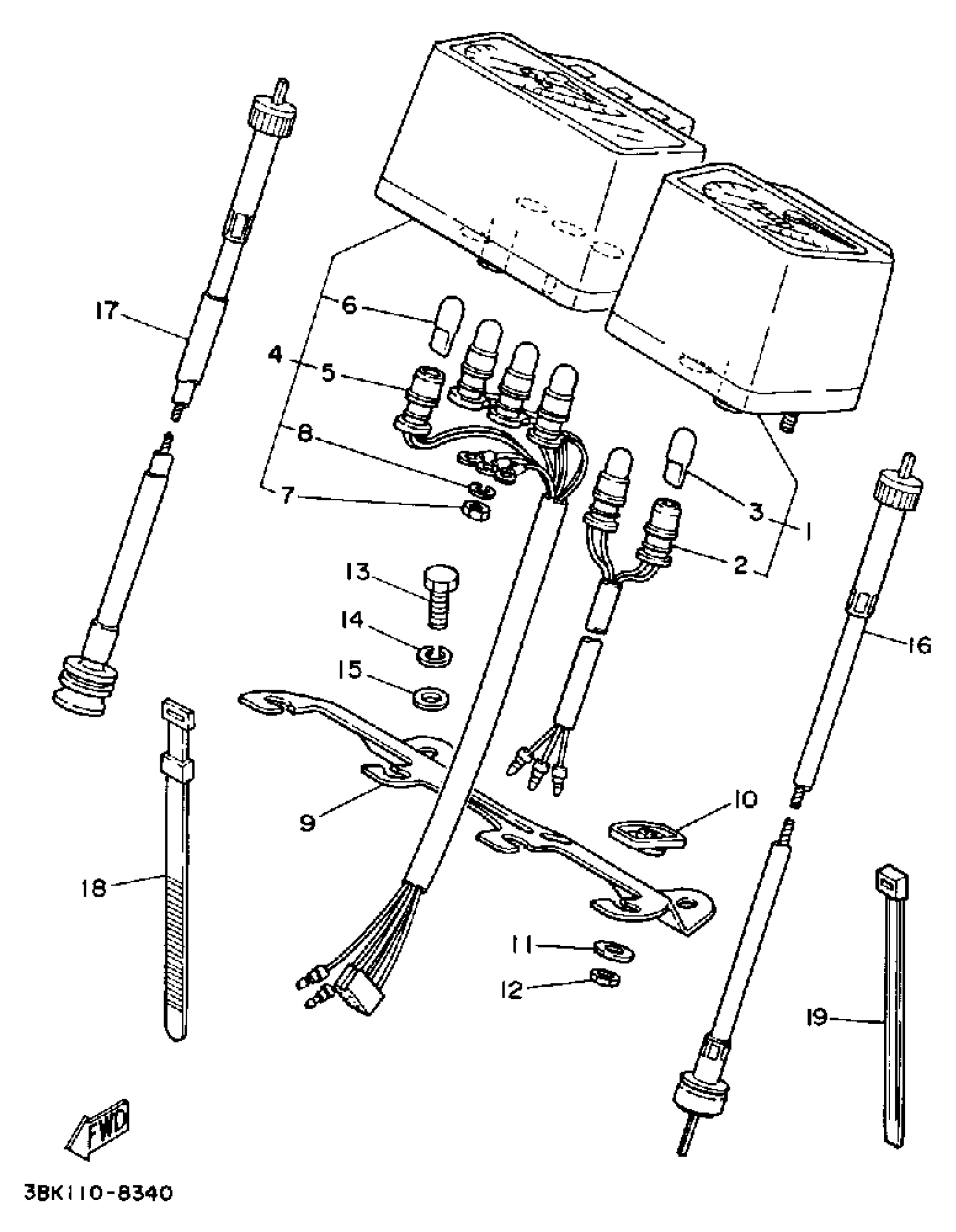

Yamaha DT50LC (DT50W) 1988 METER Diagram

#

Description
Price

1

SPEDOMETER ASSEMBLY

3BK-83510-00-00

Unavailable

2

. SOCKET, METER

3BK-83536-00-00

Unavailable

3

BULB (6V 3W)

4N0-83516-00-00

$3.22

4

TACHOMETER ASSEMBLY

3BK-83540-00-00

Unavailable

5

. SOCKET CORD ASSEMBLY

3BK-83509-00-00

Unavailable

6

BULB (6V 3W)

4N0-83516-00-00

$3.22

7

NUT, HEXAGON SMALL

95304-03700-00

Unavailable

8

WASHER, SPRING

92990-03100-00

$8.49

9

BRACKET, METER

54A-83519-00-00

Unavailable

10

DAMPER

17W-83523-00-00

Unavailable

11

WASHER PLATE 803835240000

90201-05032-00

Unavailable

12

NUT, HEXAGON

95317-05600-00

$2.34

13

BOLT, HEXAGON

97017-06016-00

$8.49

14

WASHER, SPRING

92907-06100-00

$4.25

15

WASHER(6TA)

92907-06600-00

$2.72

16

SPEEDOMETER CABLE

17W-83550-01-00

Unavailable

17

TACHOMETER CABLE ASSY

37A-83560-01-00

Unavailable

18

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

19

BAND

1UA-82591-00-00

Unavailable
