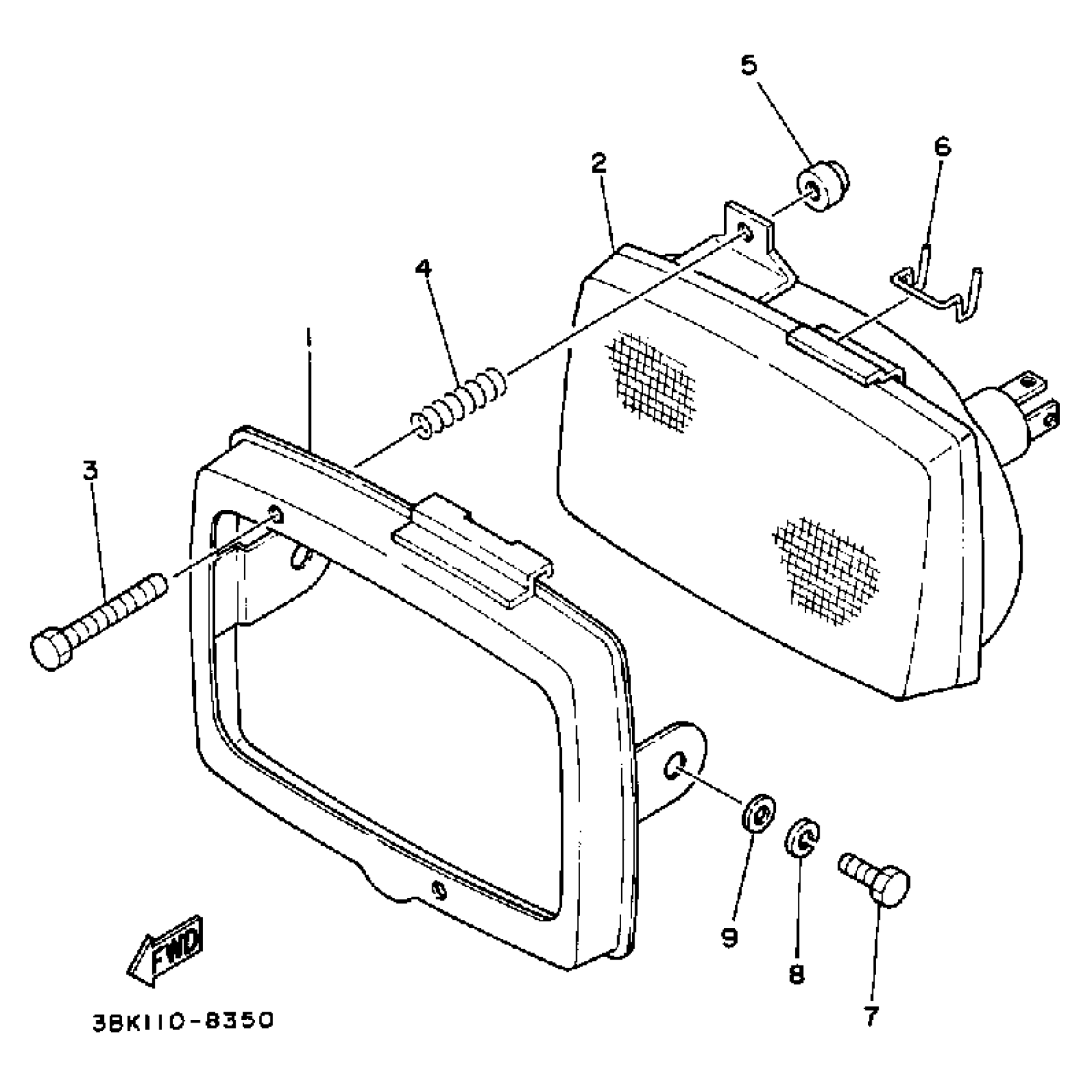

Yamaha DT50LC (DT50W) 1988 HEADLIGHT Diagram

#

Description
Price

1

RIM, HEADLIGHT

3BK-84115-00-00

Unavailable

2

LENS ASSEMBLY

3BK-84120-00-00

Unavailable

3

SCREW, RIM ADJUSTER

43F-84131-00-00

$8.82

4

SPRING, ADJUST

341-84332-60-00

$7.96

5

NUT, ADJUST

198-84334-60-00

$5.99

6

SET SPRING

55X-84124-00-00

$10.65

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

8

WASHER, SPRING

92995-06100-00

$2.95

9

WASHER, PLAIN (646)

92990-06600-00

$1.84
