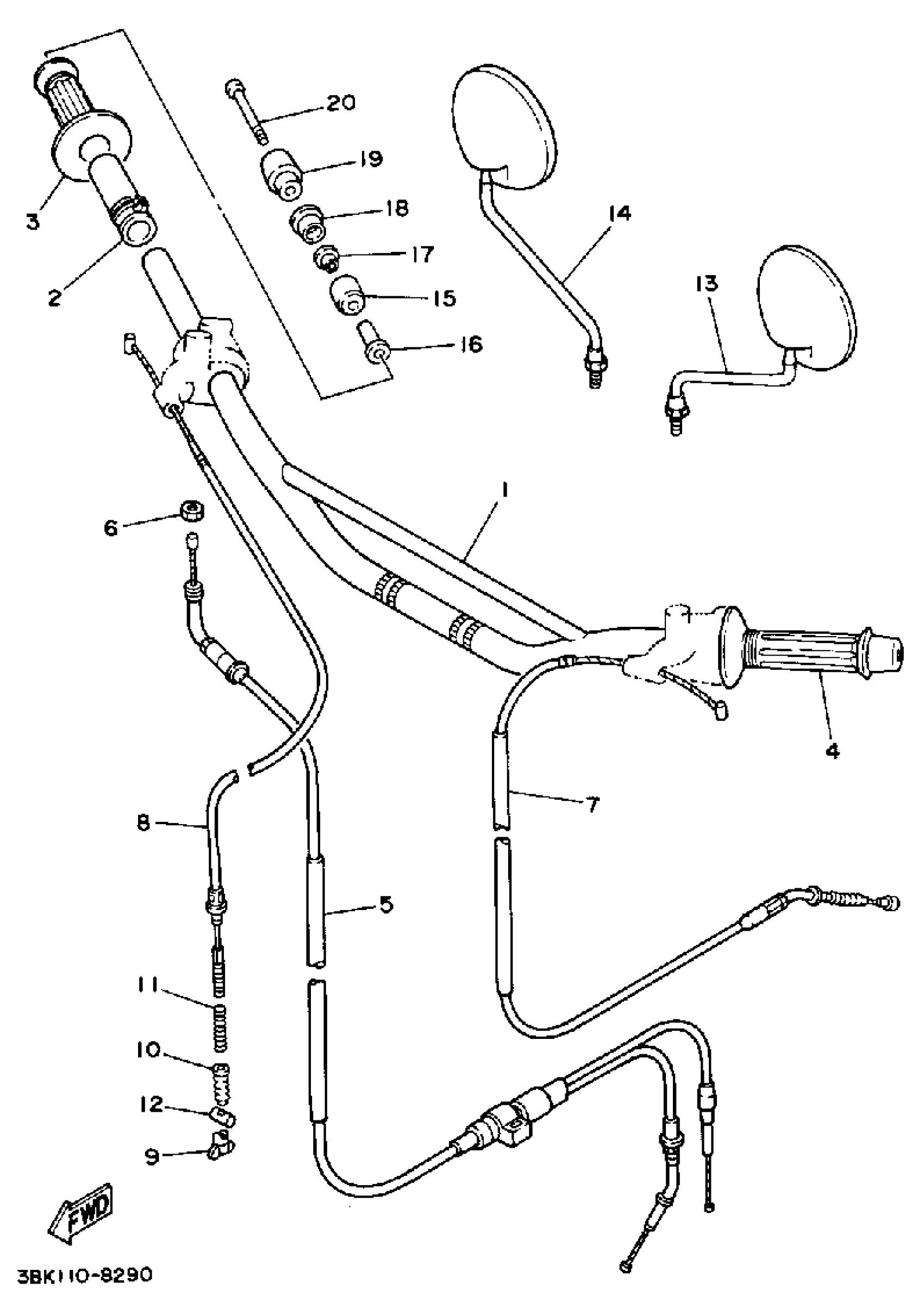

Yamaha DT50LC (DT50W) 1988 HANDLEBAR - CABLE Diagram

#

Description
Price

1

HANDLEBAR

3WC-26111-10-00

Unavailable

2

TUBE, THRTL GUIDE

3T5-26243-00-00

Unavailable

3

GRIP RH

21A-26242-00-00

Unavailable

4

GRIP

21A-26241-01-00

$18.49

5

CABLE ASSY, THROTTLE & PUMP

17W-26260-01-00

Unavailable

6

NUT, HEXAGON

90170-10038-00

$4.67

7

CABLE, CLUTCH

17W-26335-00-00

$30.99

8

CABLE, BRAKE

17W-26341-01-00

$37.99

9

NUT (25K)

90179-06411-00

$8.49

10

BOOT, CABLE

3M7-26342-00-00

Unavailable

11

SPRING, COMPRESSION

90501-09052-00

Unavailable

12

PIN 1562723700

90249-12008-00

$8.49

13

MIRROR ASSY., 2

5Y1-26290-11-00

$75.99

14

REAR VIEW MIRROR ASSY(RIGHT)

3Y1-26290-00-00

$53.99

15

DAMPER, LOCATING 1 (55V-2622F-00-00)

21A-2622F-00-00

Unavailable

16

NUT(1ET)

90179-06498-00

Unavailable

17

COLLAR (8G8)

90387-06681-00

Unavailable

18

DAMPER, LOCATING

21A-2622G-00-00

Unavailable

19

END, GRIP

21A-26246-00-00

Unavailable

20

BOLT,SOCKET

91317-06060-00

Unavailable
