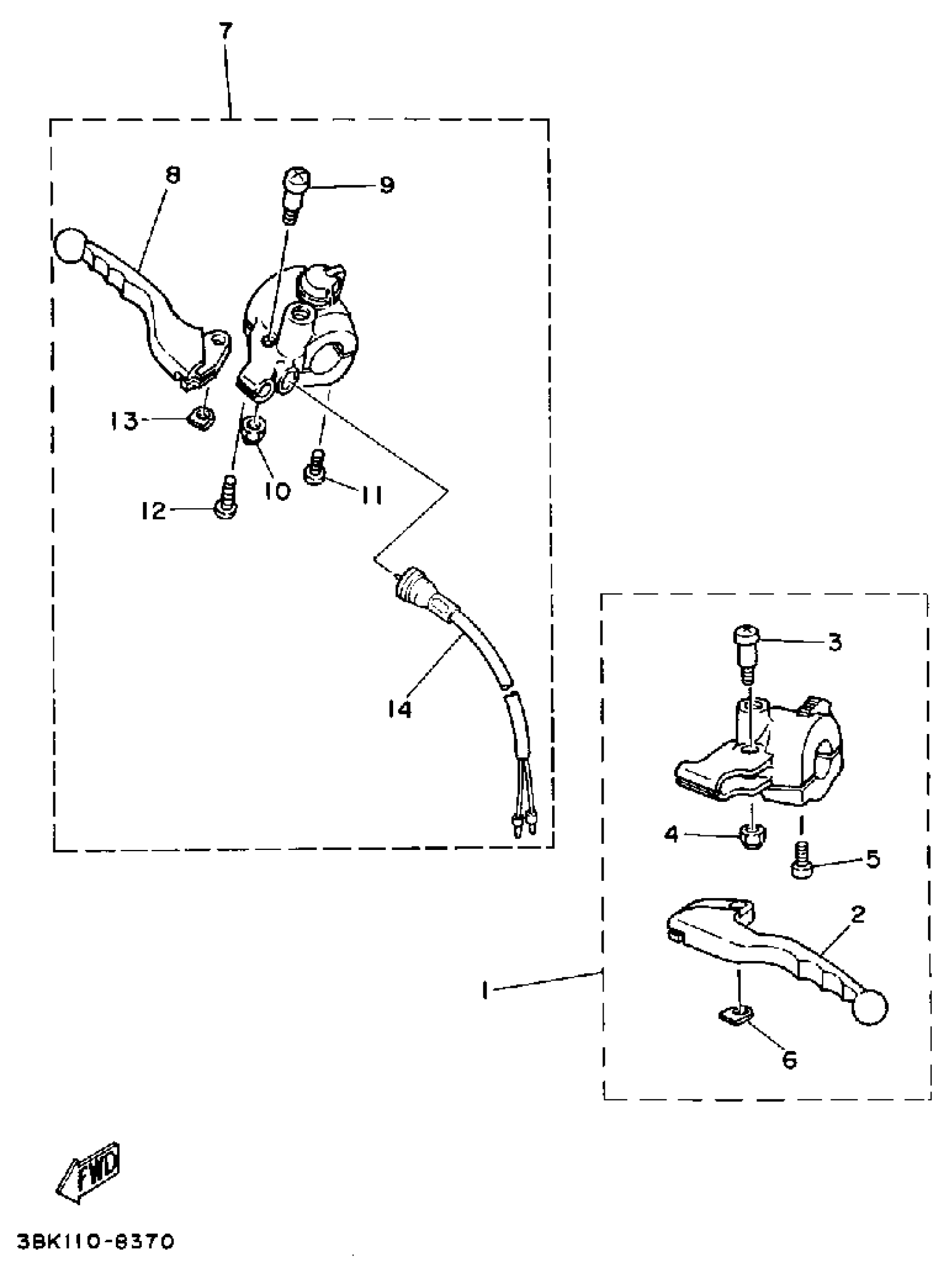

Yamaha DT50LC (DT50W) 1988 HANDLE SWITCH - LEVER Diagram

#

Description
Price

1

LEVER HOLDER ASSEMBLY L

3BK-82910-00-00

Unavailable

2

LEVER 1

5R2-83912-00-00

Unavailable

3

SCREW (1E2)

90149-05120-00

$9.49

4

NUT, U

95617-05100-00

$9.49

5

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable

6

PLATE, SPRING

3M5-83929-00-00

Unavailable

7

LEVER HOLDER ASY 2

3BK-82920-09-00

Unavailable

8

LEVER 2

17W-83922-00-00

Unavailable

9

SCREW (1E2)

90149-05120-00

$9.49

10

NUT, U

95617-05100-00

$9.49

11

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable

12

SCREW, PAN HEAD

98517-05030-00

$10.49

13

PLATE, SPRING

3M5-83929-00-00

Unavailable

14

FRONT STOP SWITCH ASSY

17W-83980-09-00

Unavailable
