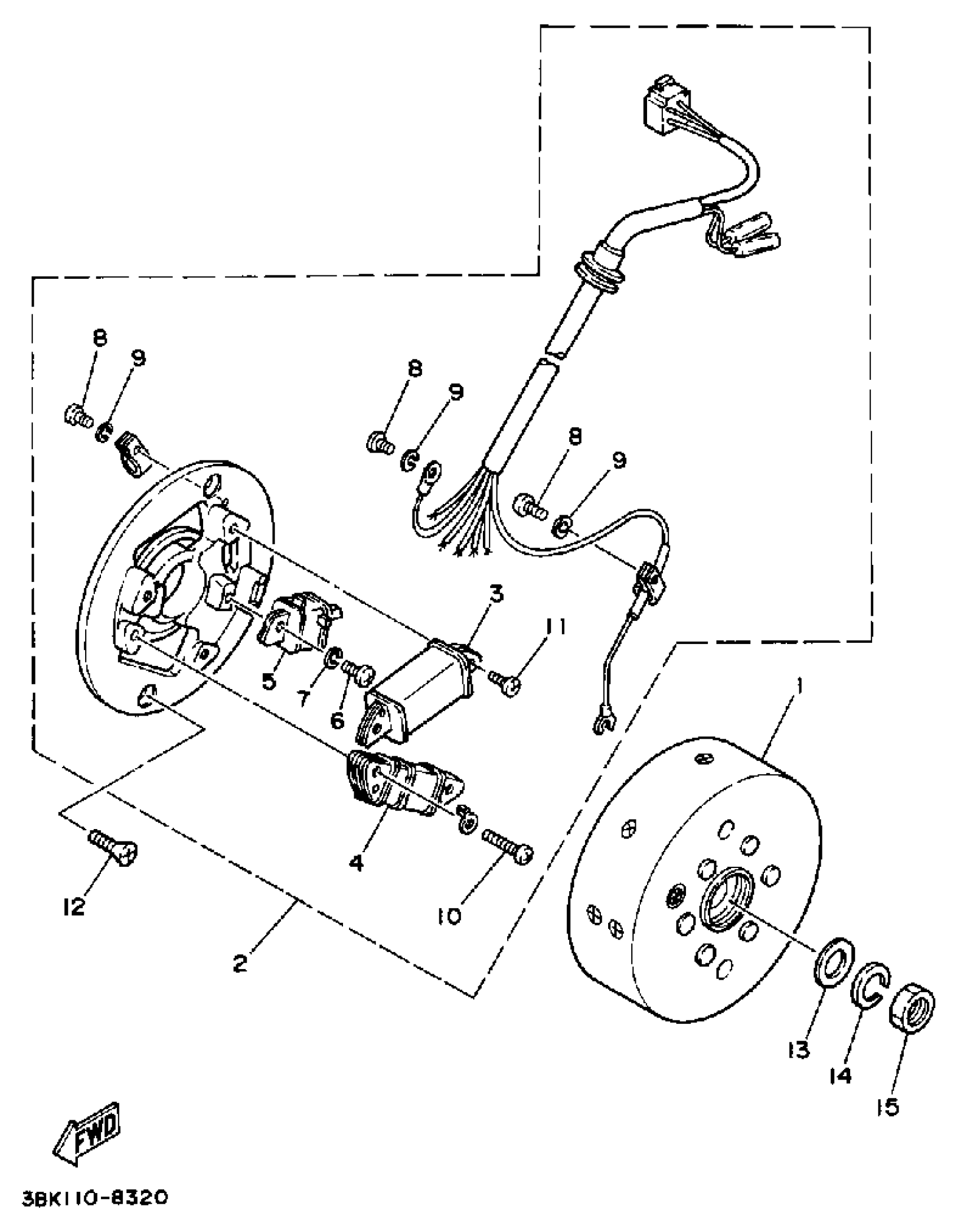

Yamaha DT50LC (DT50W) 1988 GENERATOR Diagram

#

Description
Price

1

ROTOR ASSEMBLY

3BK-85550-00-00

Unavailable

2

BASE ASSEMBLY

3BK-85560-00-00

Unavailable

3

COIL, CHARGE

4Y4-85520-M1-00

Unavailable

4

. COIL, LIGHTING 1

2RR-81313-M0-00

Unavailable

5

. COIL, PULSER

5R2-85580-M0-00

Unavailable

6

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

7

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

8

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

9

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

10

SCREW, PAN HEAD

98517-04025-00

Unavailable

11

SCREW, PAN HEAD

98511-04012-00

Unavailable

12

SCREW, FLAT

98707-06014-00

$8.49

13

WASHER, PLATE (583)

90201-12593-00

$9.49

14

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49

15

NUT, HEXAGON 98801-12200

90170-12175-00

$9.49
