Description

Price

1

FUEL TANK

17W-24110-00-X4

Unavailable

1

FUEL TANK

17W-24110-00-X6

Unavailable

2

. GRAPHIC SET

3BK-24240-00-00

Unavailable

2

. GRAPHIC, FUEL TNK 1 (SKY BLUE)

54A-24244-40-00

Unavailable

3

DAMPER, LOCATING

4U5-24181-00-00

$5.49

4

INACTIVE PART NUMBER

17W-24183-00-00

Unavailable

5

WASHER, PLATE (462)

90202-14077-00

$4.29

6

COLLAR (17W)

90387-075H4-00

$8.49

7

BOLT, HEXAGON

97017-06030-00

$3.61

8

WASHER, SPRING

92995-06100-00

Unavailable

9

FUEL COCK ASSY 1

17W-24500-00-00

$62.99

10

VALVE

355-24523-00-00

$33.99

11

GASKET

102-24522-02-00

$5.49

12

GASKET, NUT

122-24532-00-00

$8.99

13

HOSE (L420)

90445-092K1-00

$12.49

14

CLIP 101235600

90467-08003-00

Unavailable

15

CAP ASSY

3Y1-24610-01-00

Unavailable

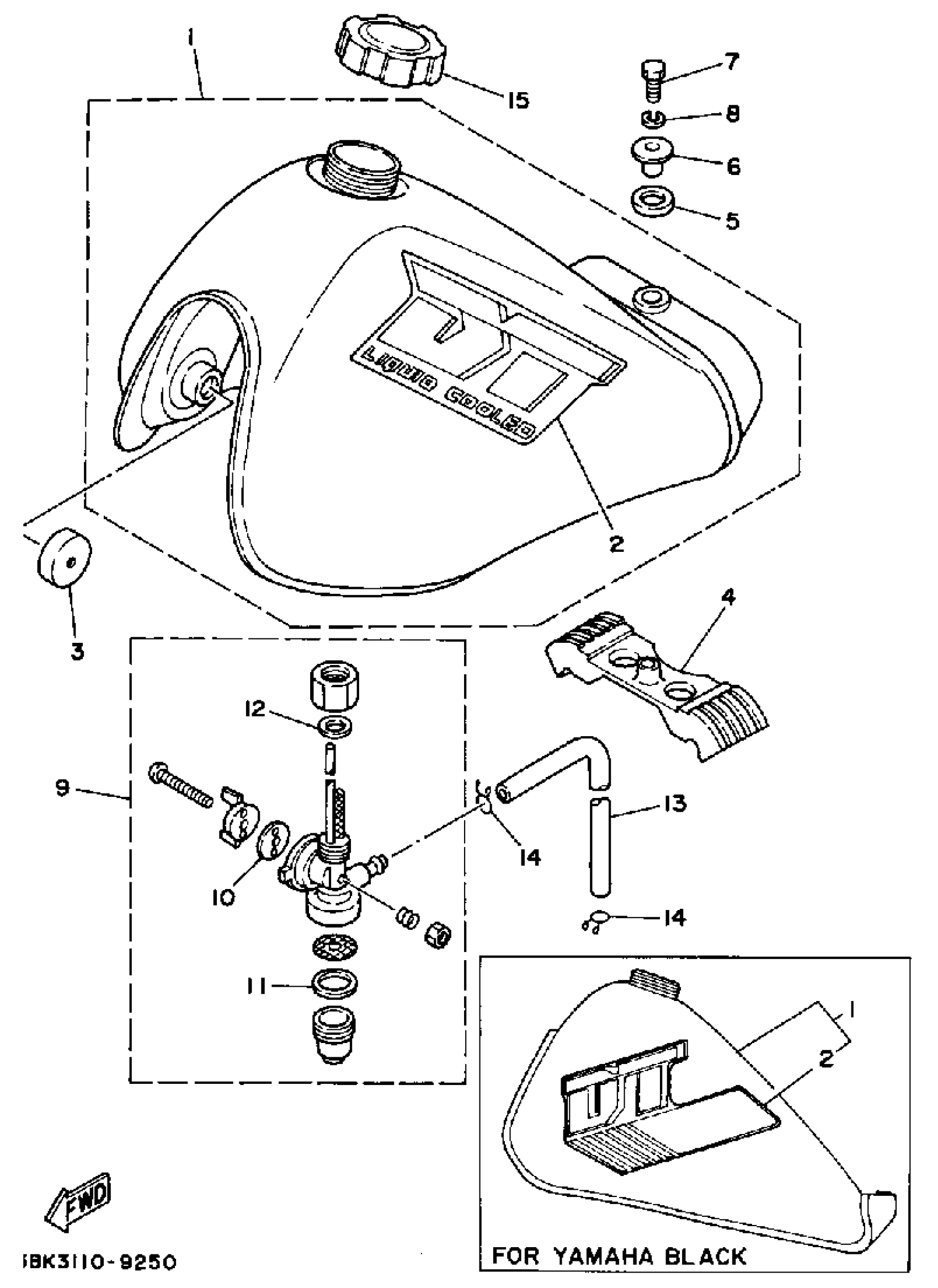

Yamaha DT50LC (DT50W) 1988 FUEL TANK Diagram

FUEL TANK

FUEL TANK

. GRAPHIC SET

. GRAPHIC, FUEL TNK 1 (SKY BLUE)

DAMPER, LOCATING

INACTIVE PART NUMBER

WASHER, PLATE (462)

COLLAR (17W)

BOLT, HEXAGON

WASHER, SPRING

FUEL COCK ASSY 1

VALVE

GASKET

GASKET, NUT

HOSE (L420)

CLIP 101235600

CAP ASSY
