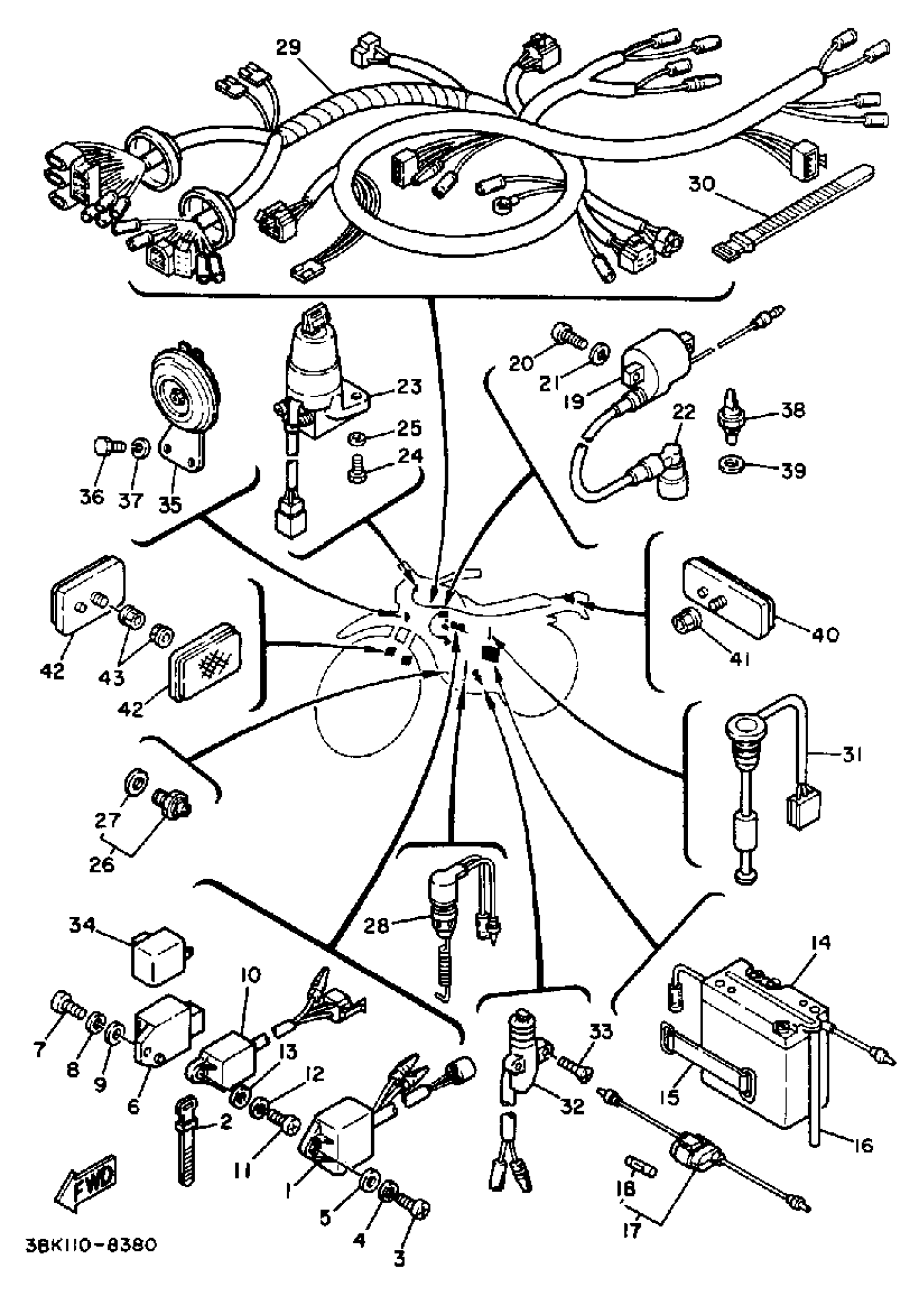

Yamaha DT50LC (DT50W) 1988 ELECTRICAL 1 Diagram

#

Description
Price

1

CDI UNIT ASSEMBLY

3BK-85540-00-00

Unavailable

2

BAND, SWITCH CORD

25G-83936-01-00

$4.78

3

SCREW, PAN

98507-06014-00

$8.49

4

WASHER, SPRING

92995-06100-00

Unavailable

5

WASHER, PLAIN (646)

92990-06600-00

$2.80

6

RECTIFIER/REG ASSY

1RH-81960-A0-00

Unavailable

7

SCREW PAN HEAD

98580-06020-00

$8.49

8

WASHER, SPRING

92995-06100-00

Unavailable

9

WASHER, PLAIN (646)

92990-06600-00

$2.80

10

CONTROL UNIT ASSEMBLY

4Y3-85590-M0-00

Unavailable

11

SCREW PAN HEAD

98580-06020-00

$8.49

12

WASHER, SPRING

92995-06100-00

Unavailable

13

WASHER, PLAIN (646)

92990-06600-00

$2.80

14

6N4B2A3 YUASA BATTERY

6N4-B2A3Y-00-00

Unavailable

15

BAND, BATTERY

2T4-82131-00-00

$8.99

16

HOSE (L340)

90445-08684-00

Unavailable

17

FUSE HOLDER ASSY

55K-82150-02-00

Unavailable

18

FUSE

1A0-82151-00-00

Unavailable

19

IGNITION COIL ASSY

4RP-82310-26-00

Unavailable

20

SCREW PAN HEAD

98580-06020-00

$8.49

21

WASHER, SPRING

92995-06100-00

Unavailable

22

PLUG CAP ASSY

166-82370-20-00

Unavailable

23

MAIN SWITCH STEERING LOCK

2HV-82501-00-00

Unavailable

24

SCREW(1KT)

90149-06228-00

Unavailable

25

WASHER, PLAIN (646)

92990-06600-00

$2.80

26

NEUTRAL SWITCH ASSY

4GY-82540-10-00

Unavailable

27

GASKET

296-82543-00-00

Unavailable

28

STOP SWITCH ASSY

5R2-82530-03-00

Unavailable

29

WIRE HARNESS ASSEMBLY

3BK-82590-00-00

Unavailable

30

BAND, SWITCH CORD

437-83936-01-00

Unavailable

31

OIL LVL GUAGE ASY

4L0-85720-00-00

Unavailable

32

SWICH, SIDE STAND

5Y1-82566-00-00

Unavailable

33

SCREW, FLAT

98707-05016-00

Unavailable

34

FLASHER RELAY ASSY

3BK-83350-00-00

Unavailable

35

HORN

2A7-83371-10-00

Unavailable

36

BOLT (661)

97013-06012-00

Unavailable

37

WASHER, SPRING

92995-06100-00

Unavailable

38

THERMO UNIT

17W-83591-00-00

Unavailable

39

GASKET

90430-10005-00

Unavailable

40

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

41

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

42

FRONT REFLECTOR ASSY

23V-85110-00-00

Unavailable

43

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
