Description

Price

1

CRANKSHAFT ASSEMBLY

3BK-11400-00-00

Unavailable

2

CRANKSHAFT ASSEMBLY

3BK-11400-00-00

Unavailable

3

CRANK 2

(3BK-11422-00-00)

Unavailable

4

ROD, CONNECTING

3R1-11651-01-00

$125.99

5

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

$48.99

6

. PIN, CRANK 1

4V0-11681-00-00

Unavailable

7

WASHER 132116850000

90209-18112-00

$10.49

8

BEARING(1GJ)

93306-20458-00

$43.99

9

OIL SEAL(4BA)

93102-20447-00

$11.49

10

OIL SEAL (28X40X8-132)

93103-28011-00

$14.99

11

PISTON (STD)

17W-11631-00-97

Unavailable

11

PISTON 1 O/S 0.25

17W-11635-00-00

Unavailable

11

PISTON 2 O/S 0.50

17W-11636-00-00

Unavailable

12

PISTON RING SET (STD)

4EU-11603-30-00

Unavailable

12

PISTON RING SET (0.25MM O/S)

4EU-11604-30-00

Unavailable

12

PISTON RING SET (0.50MM O/S)

4EU-11605-30-00

Unavailable

13

PIN, PISTON

517-11633-00-00

Unavailable

14

CIRCLIP 132116340000

93450-13022-00

Unavailable

15

BRG,CYL-CAL ROLLER 5G TM

93310-11268-00

Unavailable

16

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

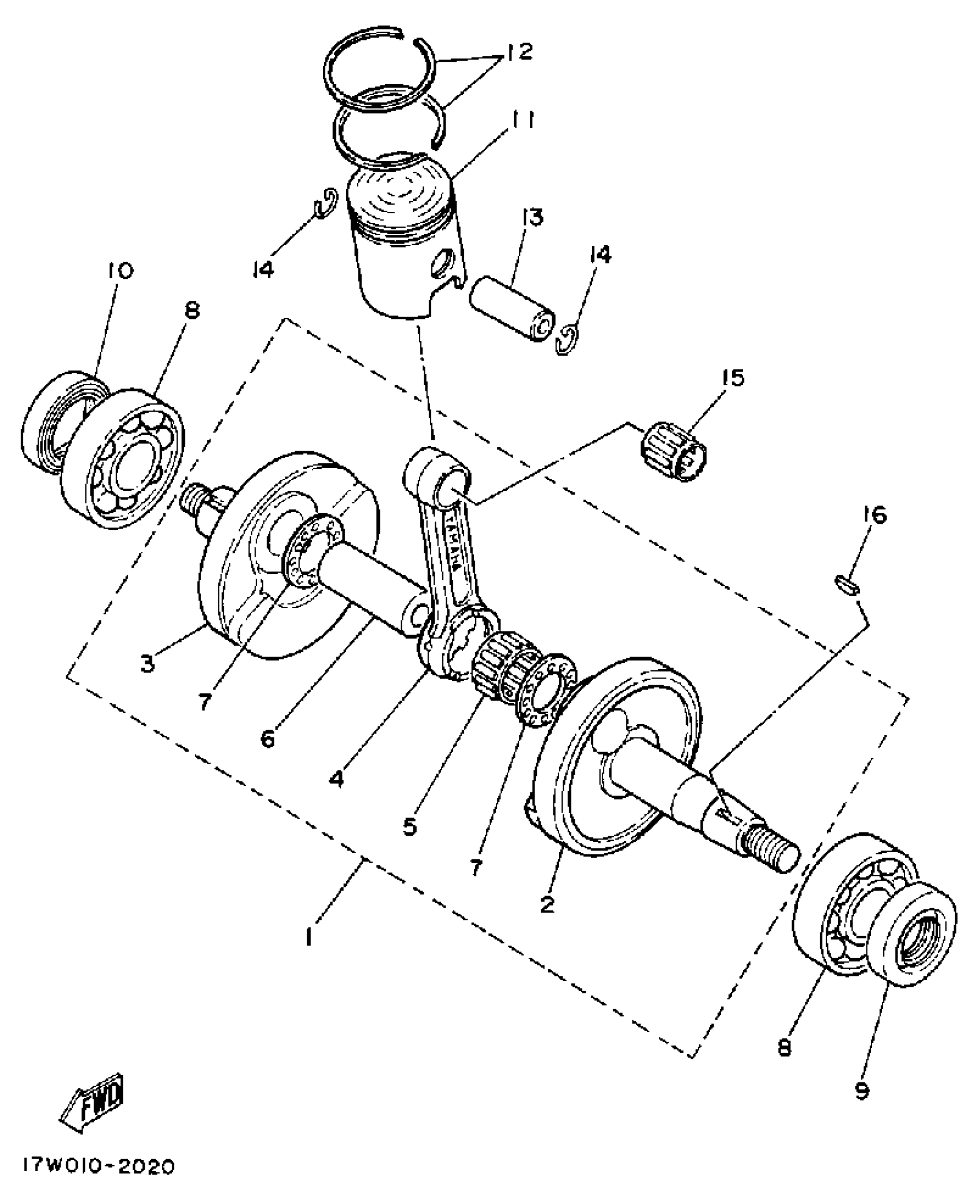

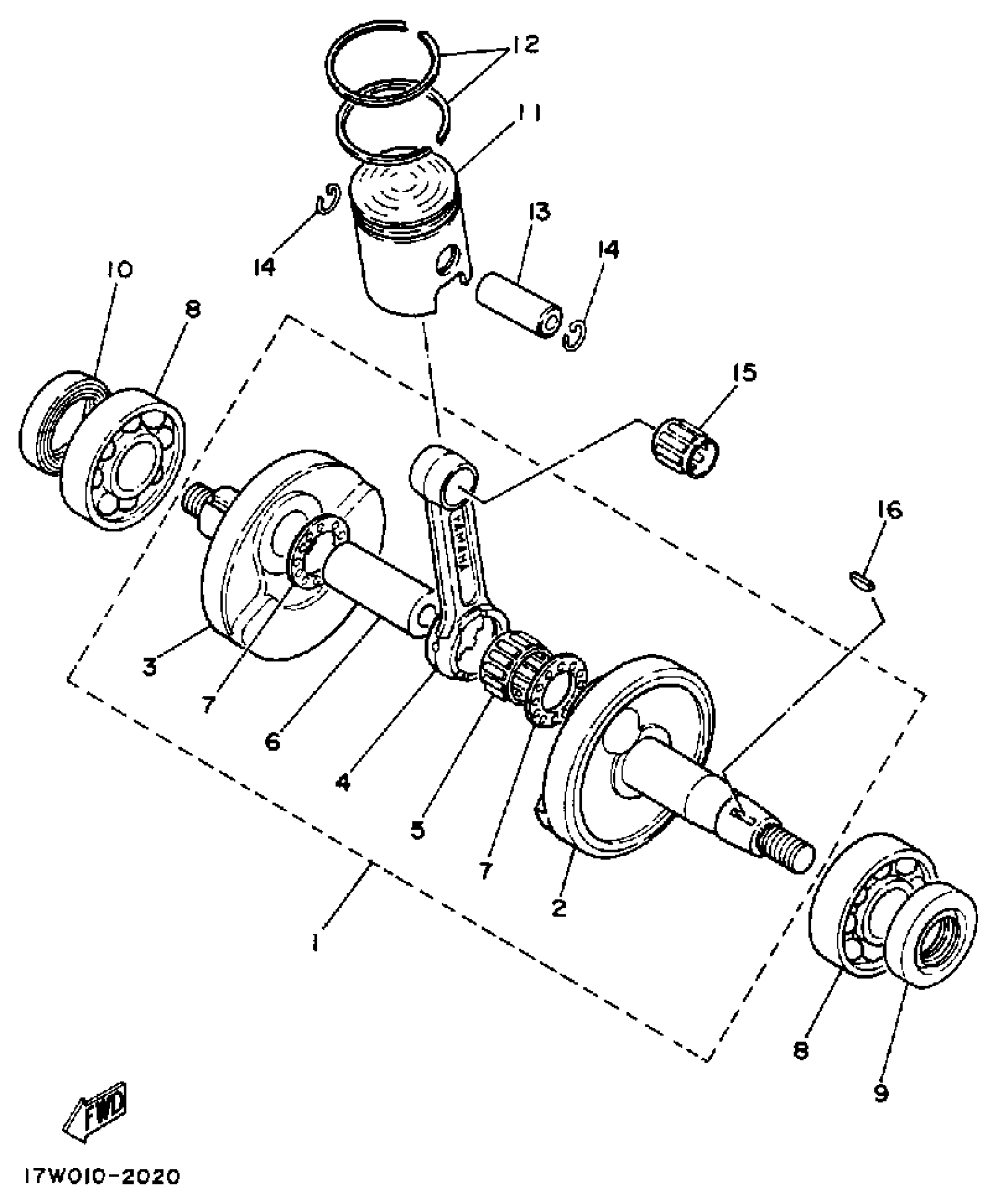

Yamaha DT50LC (DT50W) 1988 CRANKSHAFT - PISTON Diagram

CRANKSHAFT ASSEMBLY

CRANKSHAFT ASSEMBLY

CRANK 2

ROD, CONNECTING

BEARING, CYLINDRICAL(3TU)

. PIN, CRANK 1

WASHER 132116850000

BEARING(1GJ)

OIL SEAL(4BA)

OIL SEAL (28X40X8-132)

PISTON (STD)

PISTON 1 O/S 0.25

PISTON 2 O/S 0.50

PISTON RING SET (STD)

PISTON RING SET (0.25MM O/S)

PISTON RING SET (0.50MM O/S)

PIN, PISTON

CIRCLIP 132116340000

BRG,CYL-CAL ROLLER 5G TM

KEY WOODRUFF 146115450000
