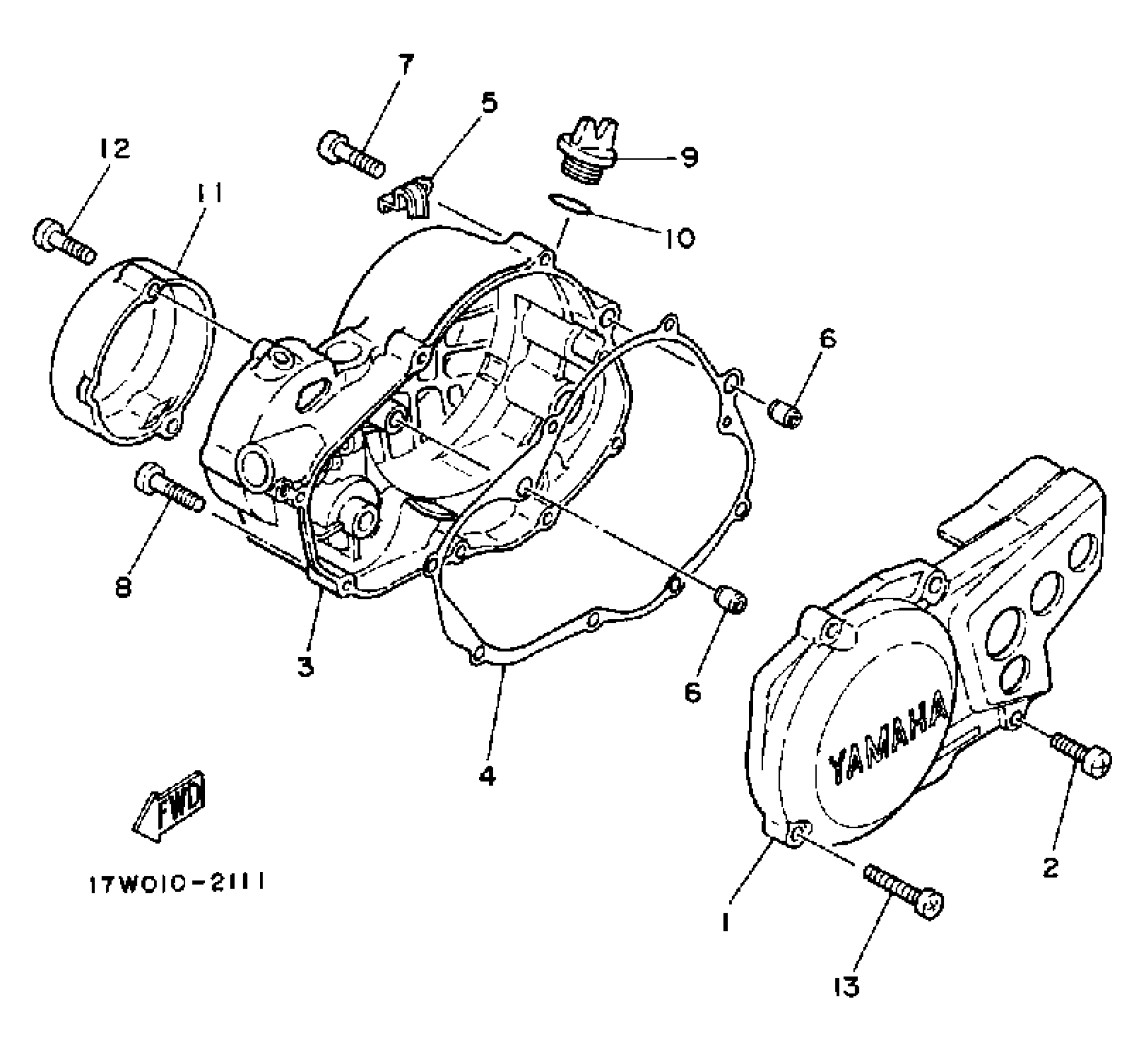

Yamaha DT50LC (DT50W) 1988 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE L

17W-15411-02-00

Unavailable

2

SCREW, PAN HEAD (76T)

98517-06025-00

$2.90

3

COVER, CRANKCASE R

5R2-15421-02-00

Unavailable

4

GASKET, CRANKCASE COVER 2

5R2-15461-04-00

$17.71

5

CLAMP

(90462-10120-00)

Unavailable

6

PIN, DOWEL(3VD)

99530-10114-00

$2.13

7

SCREW, PAN

98517-06030-00

$2.88

8

SCREW, PAN

98507-06035-00

$5.76

9

PLUG, OIL

3Y1-15363-10-00

$15.94

10

O-RING (646)

93210-19123-00

Unavailable

11

COVER, CRANKCASE 3

5R2-15431-00-00

Unavailable

12

SCREW, PAN

98517-06030-00

$2.88

13

SCREW, PAN

98507-06040-00

$2.08
