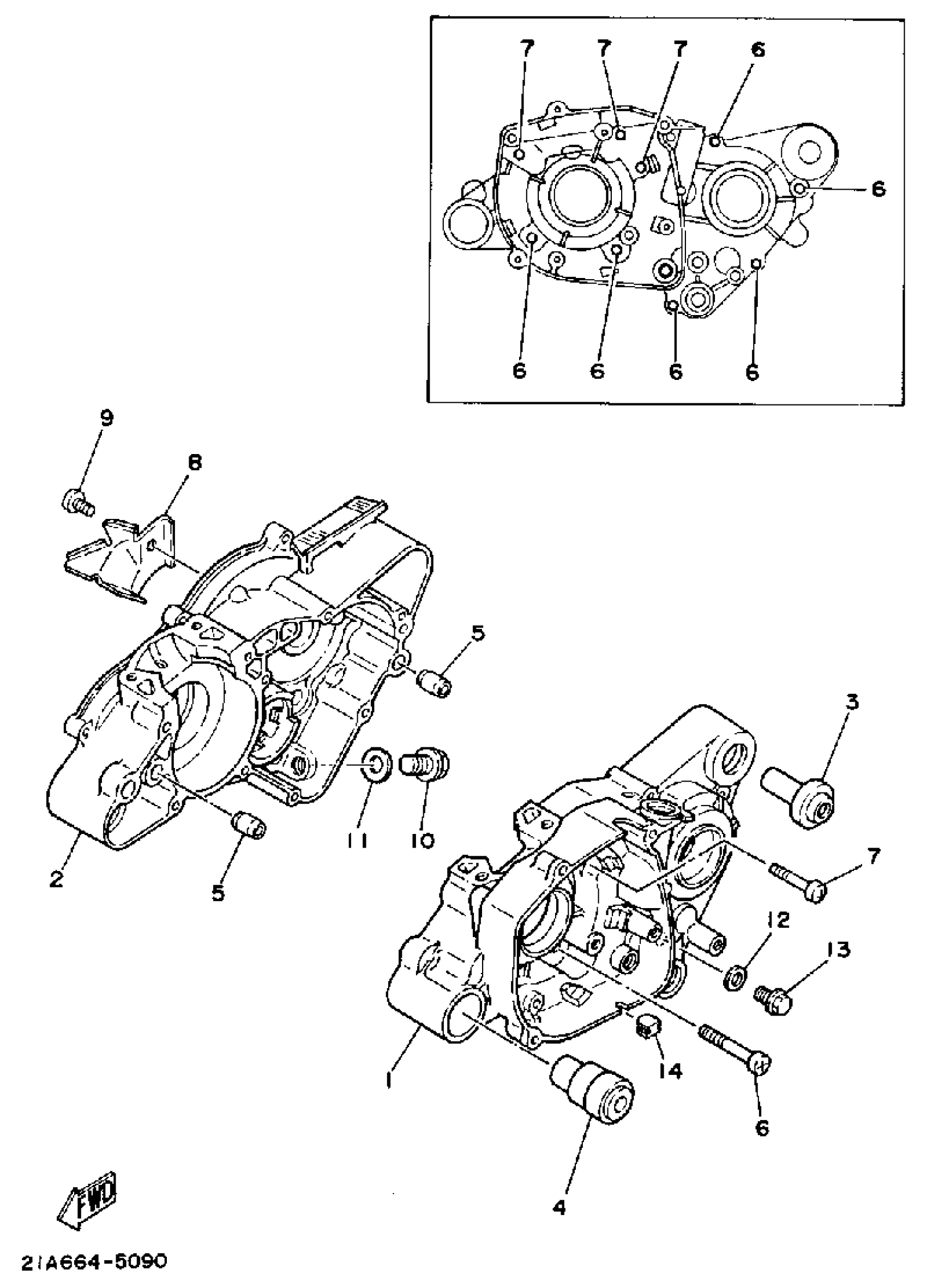

Yamaha DT50LC (DT50W) 1988 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE,1

5R2-15111-09-00

Unavailable

2

CRANKCASE 2

5R2-15121-02-00

Unavailable

3

SPACER, ENG MOUNT

(53V-15317-00-00)

Unavailable

4

SPACER, ENG MOUNT

(53V-15327-00-00)

Unavailable

5

PIN, DOWEL

99530-12016-00

$4.89

6

SCREW PAN HEAD

98580-06545-00

$5.60

7

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

8

PLATE

(5R2-15113-00-00)

Unavailable

9

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

10

PLUG, STRAIGHT SCREW (22F)

90340-12097-00

$3.08

11

GASKET (3JD1)

90430-12207-00

$7.99

12

GASKET (5R6)

90430-10171-00

$3.18

13

BOLT, WASHER BASED (7H3)

90105-10147-00

$10.49

14

PLUG(2XJ)

90338-09206-00

$9.49
