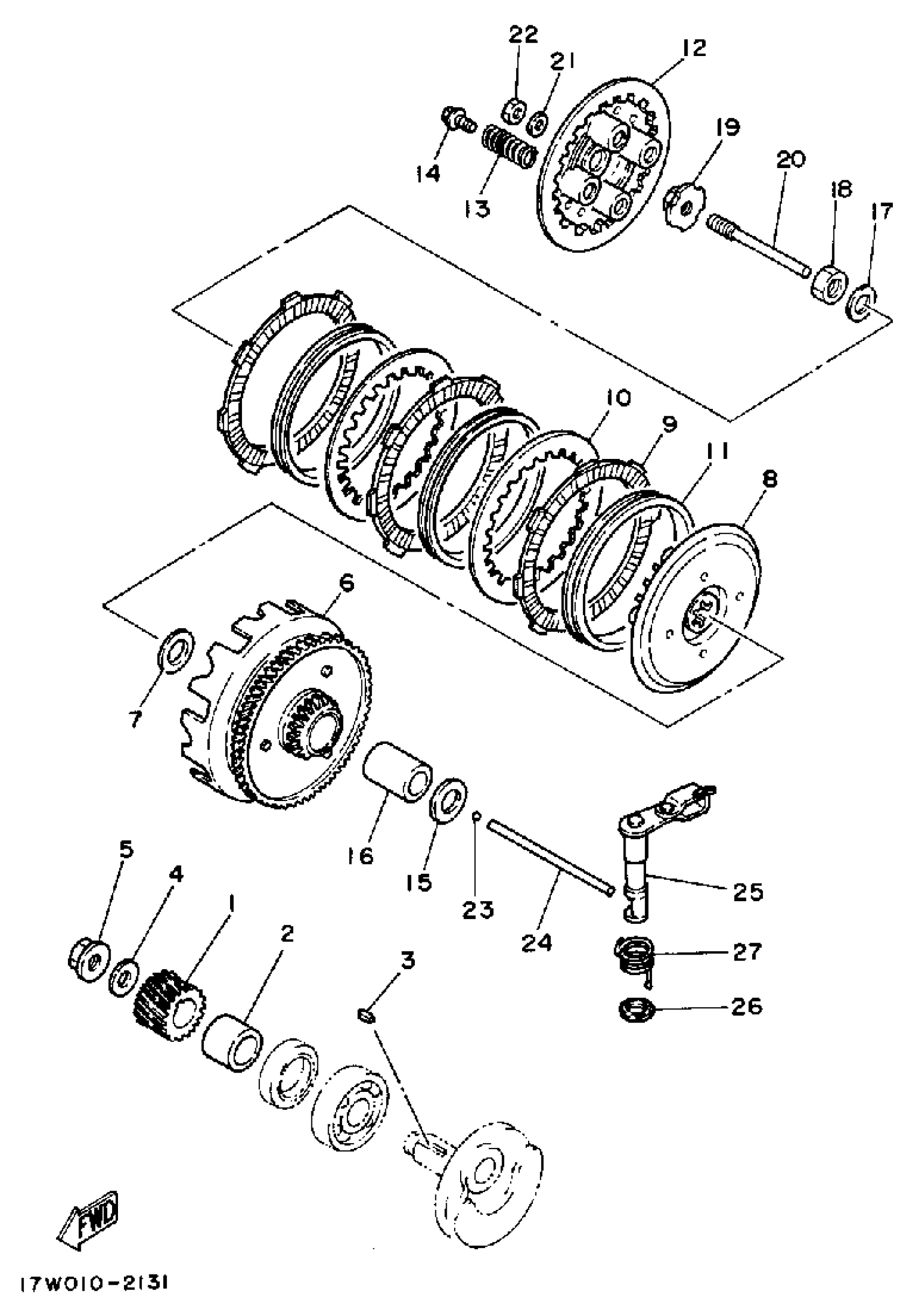

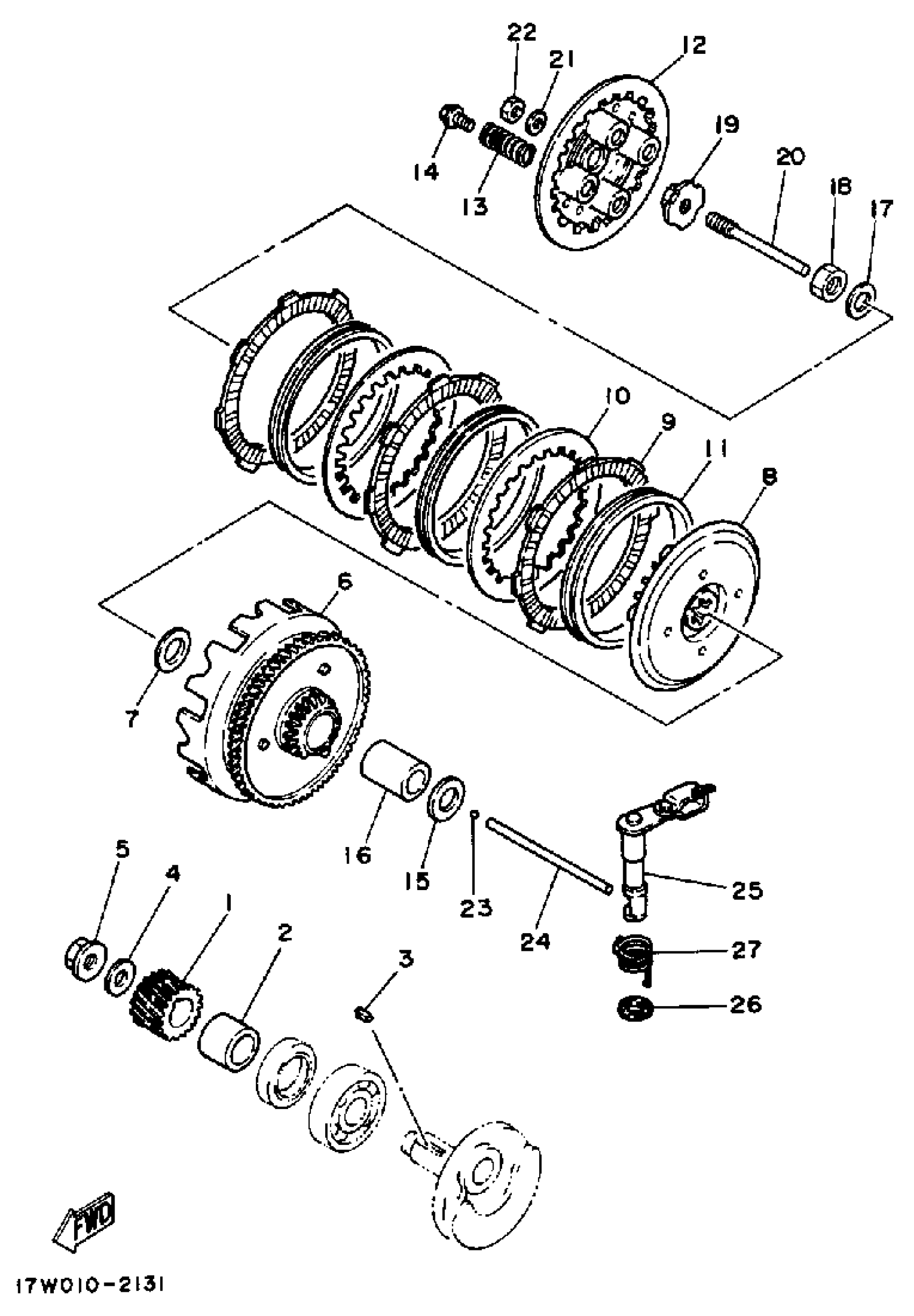

Yamaha DT50LC (DT50W) 1988 CLUTCH Diagram

#

Description
Price

1

GEAR, PRI DRIVE

(5R2-16111-00-00)

Unavailable

2

COLLAR

90387-20346-00

Unavailable

3

KEY, STRAIGHT (3L5)

90282-05034-00

$9.49

4

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

5

NUT(1EE)

90179-12659-00

$8.49

6

PRIMARY DRVN GEAR

3TU-16150-00-00

Unavailable

7

PLATE, THRUST

122-16164-00-00

$7.99

8

. BOSS, CLUTCH

353-16371-00-00

Unavailable

9

PLATE, FRICTION

4EU-16321-00-00

$25.99

10

PLATE, CLUTCH 1

257-16324-10-00

Unavailable

11

RING, CUSHION

131-16367-00-00

Unavailable

12

PLATE, PRESSURE 1

5R2-16351-00-00

Unavailable

13

SPRING COMPRESSION132163330000

90501-20125-00

$8.49

14

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

$8.49

15

PLATE, THRUST

122-16164-00-00

$7.99

16

SPACER (525)

90560-17147-00

Unavailable

17

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

18

NUT, HEXAGON 1371637700

90170-12060-00

Unavailable

19

PLATE, PUSH

1W1-16358-01-00

Unavailable

20

ROD, PUSH

1W1-16356-02-00

Unavailable

21

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

22

NUT, HEXAGON

95380-06600-00

Unavailable

23

BALL

93503-16003-00

Unavailable

24

ROD, PUSH 2

5R2-16357-00-00

Unavailable

25

PUSH LEVER ASSY

5R2-16380-00-00

Unavailable

26

OIL SEAL (2K8)

93109-14021-00

Unavailable

27

SPRING, TORSION

90508-18738-00

Unavailable
