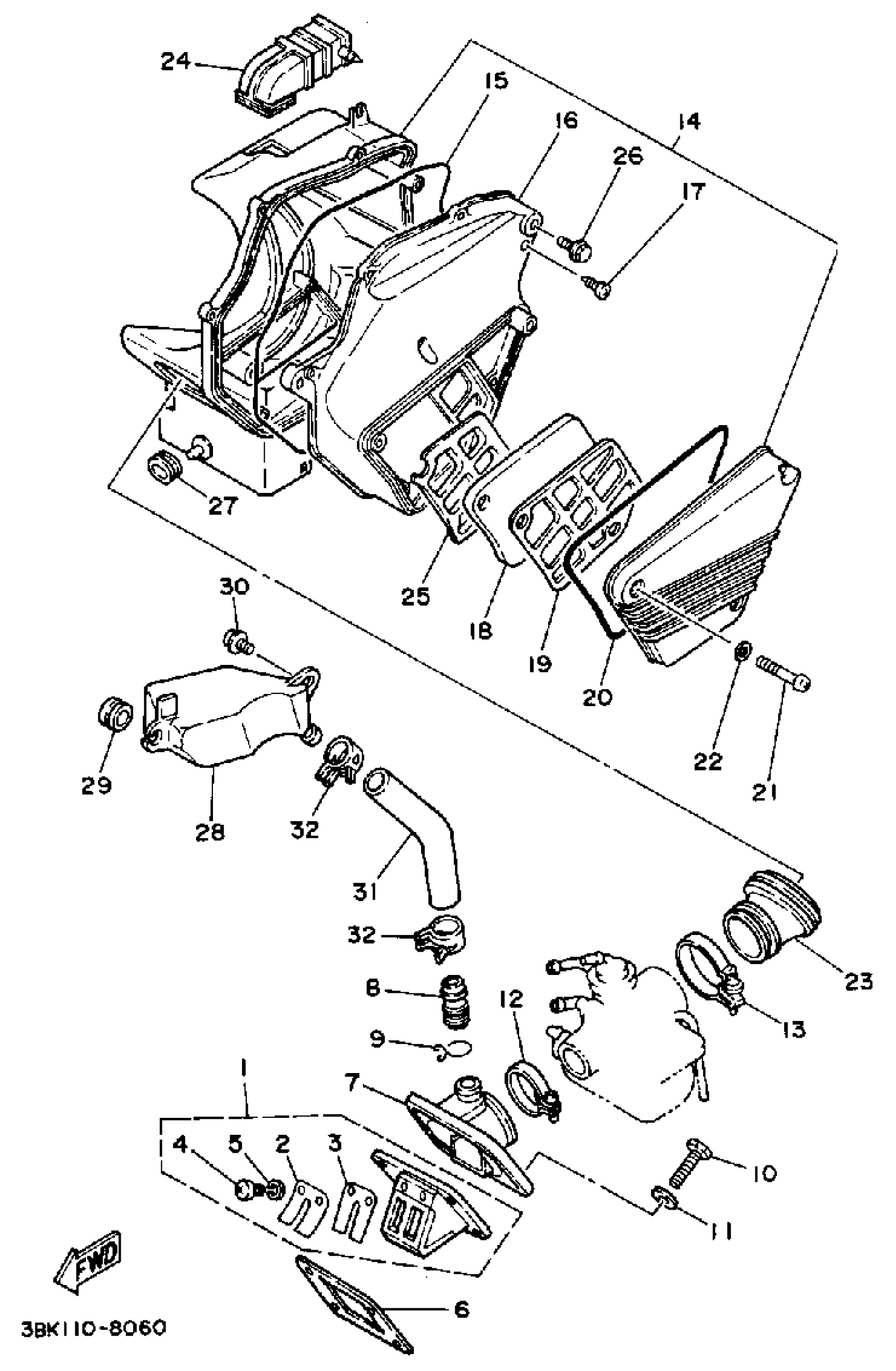

Yamaha DT50LC (DT50W) 1988 AIR FILTER Diagram

#

Description
Price

1

REED VALVE ASSY

53V-13610-00-00

$172.99

2

VALVE, REED

314-13613-01-00

Unavailable

3

. STOPPER, REED VALVE

10X-13616-00-00

Unavailable

4

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

5

WASHER, SPRING

92990-03100-00

$8.49

6

GASKET, VALVE SEAT

87A-13621-00-00

$8.99

7

JOINT, CARBURETOR

5R2-13565-01-00

$97.99

8

PIPE, MANIFOLD

20L-13584-00-00

Unavailable

9

CLIP (806-24358-00)

90467-15012-00

$8.49

10

BOLT, HEXAGON

97017-06020-00

$4.06

11

WASHER, PLAIN (646)

92990-06600-00

$2.80

12

CLAMP, HOSE

90460-36174-00

Unavailable

13

CLAMP, HOSE (5R2)

90460-41191-00

$16.99

14

AIR CLEANER CASE (17W-14477-00)

17W-W1441-00-00

Unavailable

15

SEAL

1VJ-14462-00-00

$18.49

16

CASE, AIR CLEANER 2

17W-14421-00-00

Unavailable

17

SCREW, OVAL HEAD TAPPING

97780-40112-00

Unavailable

18

ELEMENT, AIR CLEANER

17W-14451-00-00

Unavailable

19

PLATE, ELEMENT

17W-14472-00-00

Unavailable

20

SEAL

1VJ-14462-00-00

$18.49

21

SCREW, PAN

98507-06045-00

Unavailable

22

WASHER(6TA)

92907-06600-00

Unavailable

23

JOINT, AIR CLEANER 1

17W-14453-00-00

Unavailable

24

DUCT

10V-14437-00-00

Unavailable

25

AIR CLEANER CASE (17W-14477-00)

17W-W1441-00-00

Unavailable

26

BOLT, FLANGE

95817-06016-00

Unavailable

27

GROMMET (583 SIDE COVER)

90480-01176-00

Unavailable

28

CHAMBER, AIR

17W-13581-00-00

Unavailable

29

DAMPER, SIDE COVER (437)

90480-12053-00

Unavailable

30

SCREW, W/WASHER (4L0)

90159-06060-00

Unavailable

31

PIPE, MANIFOLD

(17W-13584-01-00)

Unavailable

32

CLIP (4V3)

90467-19051-00

Unavailable
