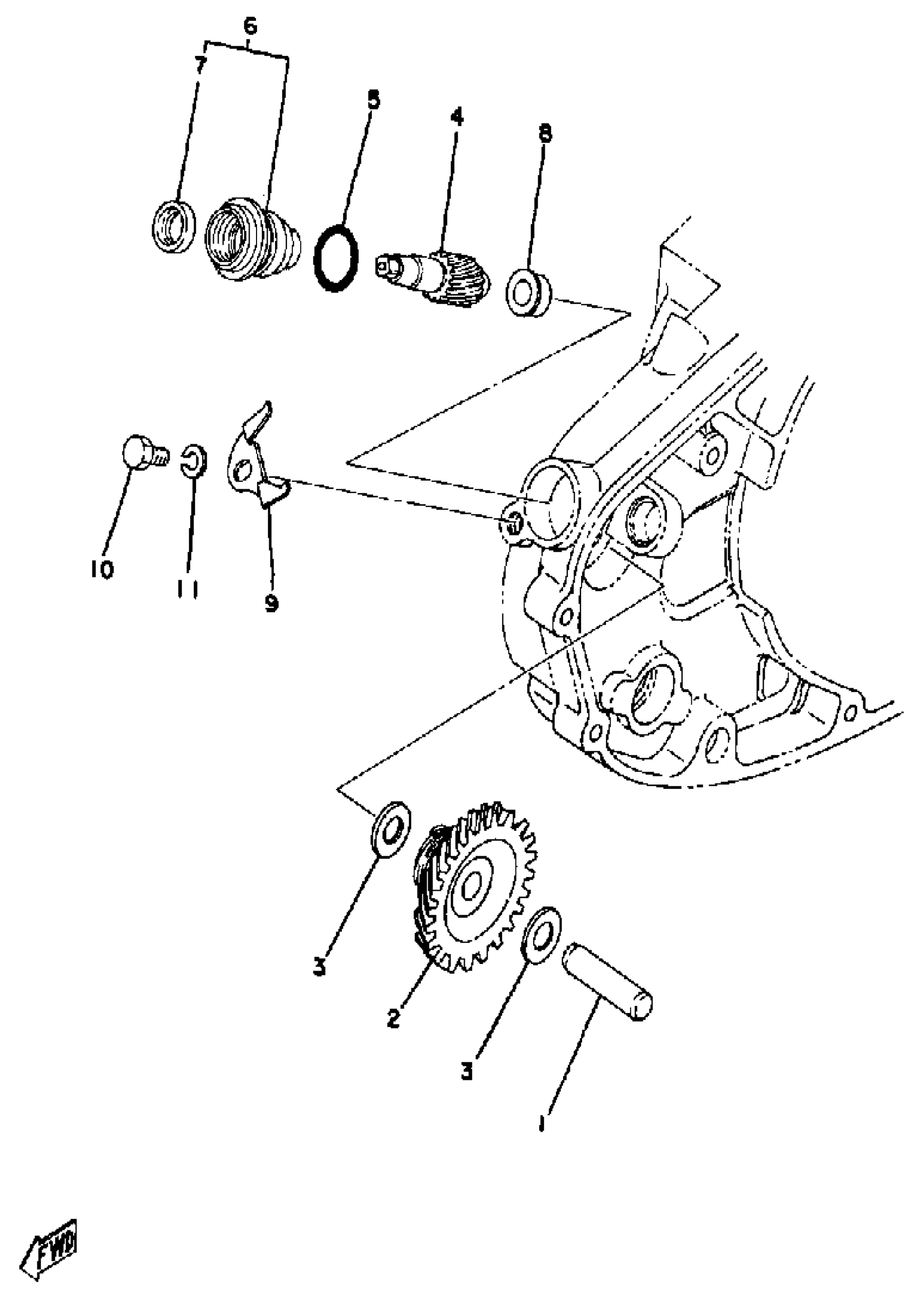

Yamaha DT400E (DT400E) 1978 TACHOMETER GEAR Diagram

#

Description

Price

1

AXLE, DRIVE GEAR

237-17861-00-00

Unavailable

2

GEAR, DRIVE

1M1-17831-00-00

Unavailable

3

SHIM

248-17837-00-00

Unavailable

4

GEAR, DRIVEN

443-17841-00-00

Unavailable

5

O-RING (1J7)

93210-16314-00

$4.29

6

HOUSING, TACH GEAR

438-17811-01-00

Unavailable

7

OIL SEAL (7X13X4-256)

93104-07036-00

Unavailable

8

BUSH (214-17843-00)

90381-08002-00

$11.49

9

STOPPER

438-17812-00-00

Unavailable

10

BOLT (661)

97013-06012-00

$5.60

11

WASHER, SPRING

92995-06100-00

Unavailable
