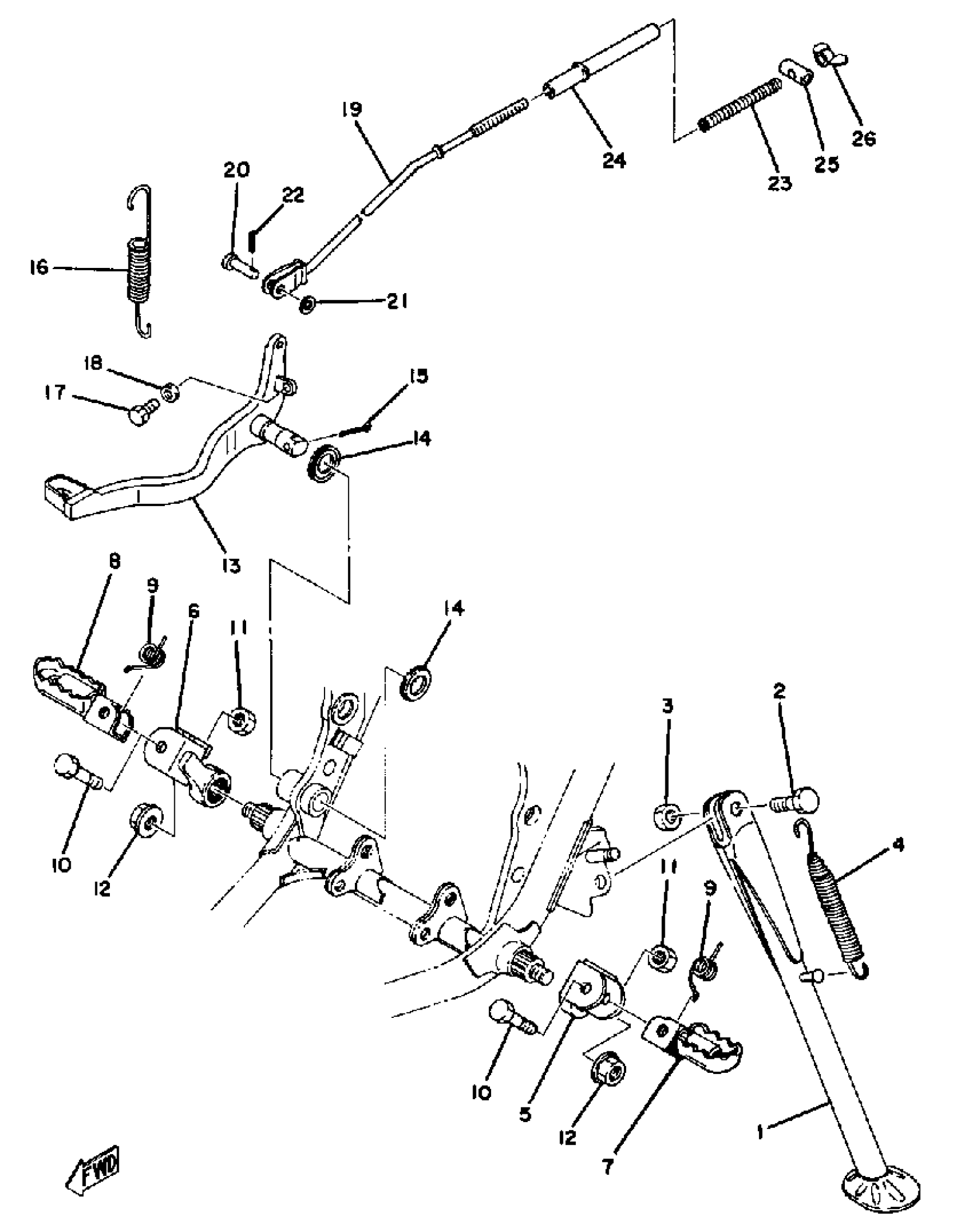

Yamaha DT400E (DT400E) 1978 STAND FOOTREST BRAKE PEDAL Diagram

#

Description
Price

1

STAND, SIDE

2Y0-27311-00-33

Unavailable

2

BOLT

90109-10473-00

$8.49

3

NUT, U

90185-10037-00

$9.49

4

SPRING, TENSION (498)

90507-29021-00

$23.99

5

BRACKET, FOOTREST 1

1M1-27412-00-00

Unavailable

6

BRACKET, FOOTREST 2

(1M1-27422-00-00)

Unavailable

7

FOOTREST 1

22W-27411-01-90

$32.99

8

FOOTREST 2

22W-27421-01-90

$32.99

9

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

10

BOLT

(90101-08244-00)

Unavailable

11

NUT, U

95617-08100-00

$9.49

12

NUT, SELF LOCKING (1M1)

90185-12072-00

$9.49

13

PEDAL, BRAKE

1M1-27211-01-33

Unavailable

14

COVER, DUST

498-27235-00-00

$10.99

15

PIN, COTTER

91490-30030-00

$8.49

16

SPRING, TENSION

90506-18289-00

Unavailable

17

BOLT

(90109-06339-00)

Unavailable

18

NUT(650)

95380-06700-00

Unavailable

19

ROD, BRAKE

483-27231-00-00

Unavailable

20

PIN, CLEVIS (24X)

90240-06103-00

Unavailable

21

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

22

PIN, COTTER

91490-20025-00

Unavailable

23

SPRING, (180-27236-00)

90501-10245-00

Unavailable

24

COVER, SPRING

1M1-27244-00-00

Unavailable

25

PIN 1562723700

90249-12008-00

Unavailable

26

NUT (25K)

90179-06411-00

Unavailable
