1978 Yamaha DT400E (DT400E) Shift CAM Fork Diagram

← All diagrams

Find the part on the Shift CAM Fork diagram for your 1978 Yamaha DT400E (DT400E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

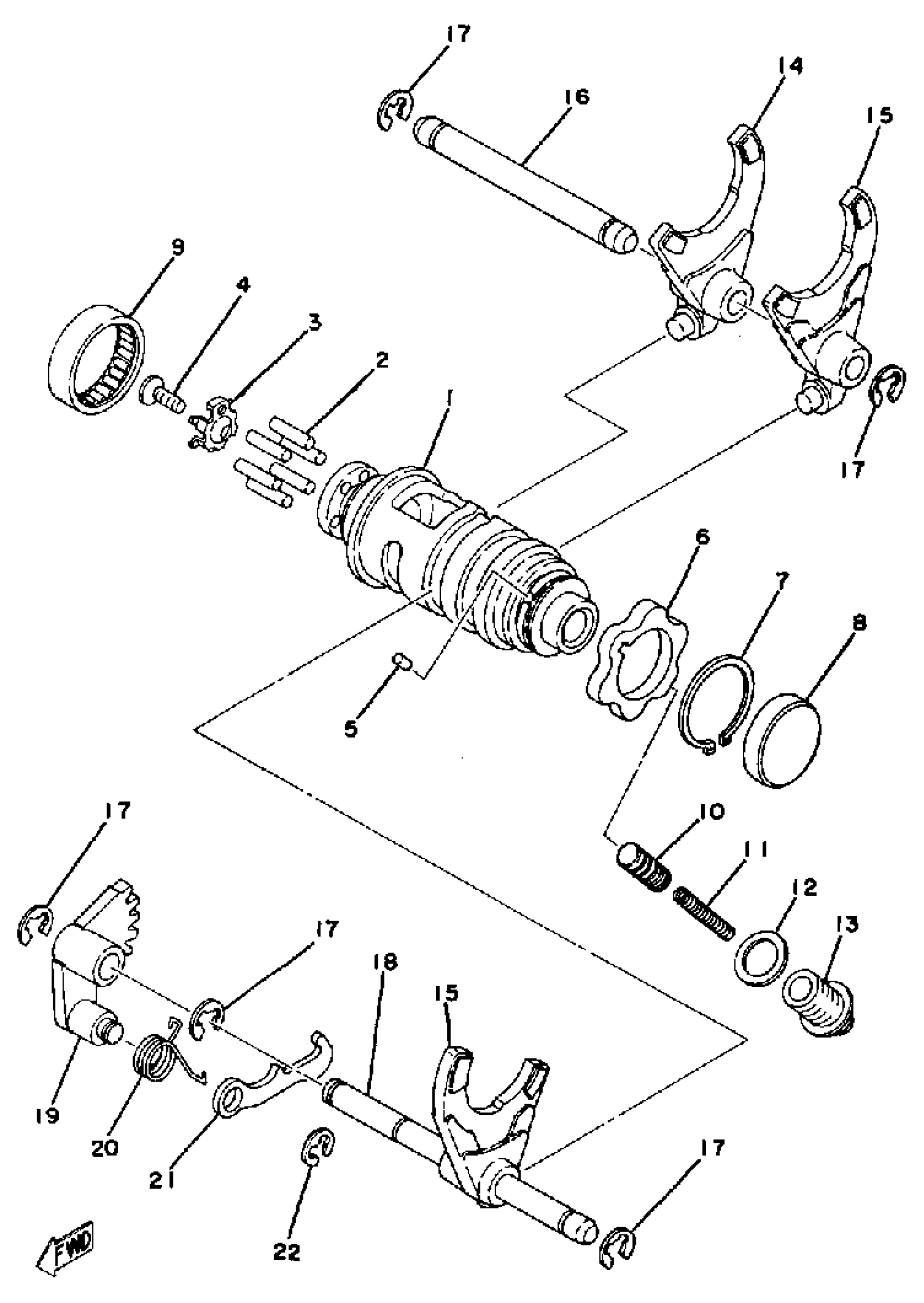

1978 Yamaha DT400E (DT400E) Shift CAM Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAM, SHIFT

1W4-18541-00-00

1
Out of stock

2

PIN, DOWEL (363)

93604-18100-00

1

$2.22

In stock

3

PLATE, SIDE

434-18561-00-00

1
Out of stock

4

SCREW, FLAT

98707-05012-00

1
Out of stock

5

PIN, DOWEL (278)

93604-08071-00

1

$6.17

In stock

6

PLATE, STOPPER

1E6-18141-01-00

1
Out of stock

7

CIRCLIP(4A6)

99009-30400-00

1

$6.55

In stock

8

PLUG(3AJ)

90338-22207-00

1

$3.92

In stock

9

BRG,CYL-CAL ROLLER 18G KY

93315-23208-00

1

$29.23

In stock

10

STOPPER, CAM

353-18547-00-00

1
Out of stock

11

SPRING COMPRESSION278185570000

90501-10062-00

1
Out of stock

12

WASHER, PROTECTOR

4F4-14766-00-00

1

$6.11

In stock

13

BOLT (1K8)

90109-14485-00

1
Out of stock

14

FORK, SHIFT 1

99999-01610-00

1
Out of stock

15

FORK, SHIFT 2

99999-01609-00

1
Out of stock

16

BAR, SHIFT FORK GUIDE 2

363-18535-00-00

—
Out of stock

17

CIRCLIP(2R6)

99001-08600-00

—
Out of stock

18

BAR, SHIFT FORK GUIDE 1

1M1-18531-00-00

1
Out of stock

19

LEVER, CHANGE 2

434-18122-00-00

—
Out of stock

20

SPRING, TORSION (1M1)

90508-08334-00

—
Out of stock

21

LEVER, CHANGE 3

498-18151-03-00

—
Out of stock

22

CIRCLIP

99080-07600-00

1

$2.89

In stock
