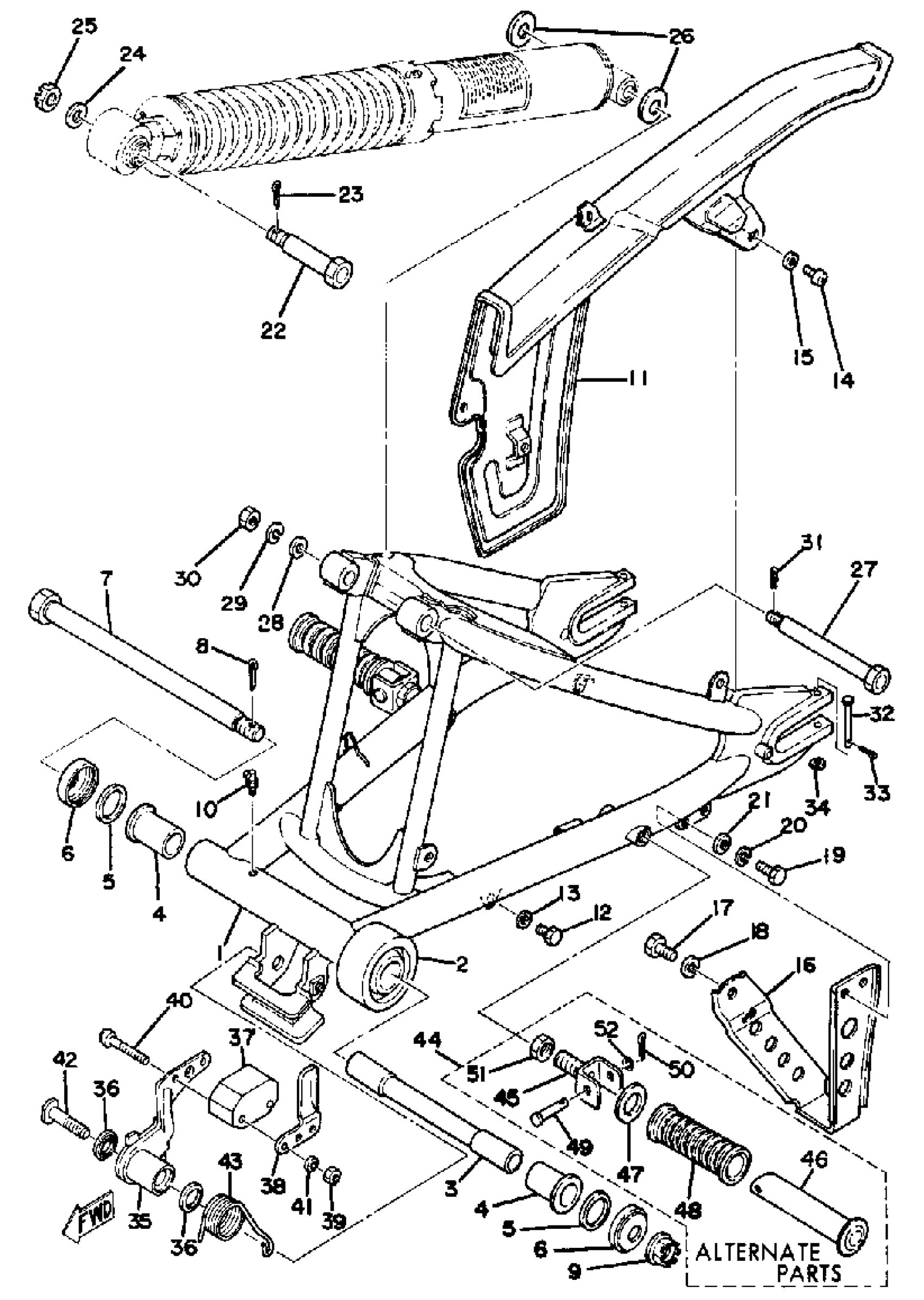

Yamaha DT400E (DT400E) 1978 REAR ARM CHAIN CASE Diagram

#

Description
Price

1

REAR ARM

(2N6-22110-00-33)

Unavailable

2

SEAL, GUARD

1M1-22151-00-00

Unavailable

3

COLLAR (322-22124-00)

90387-16398-00

Unavailable

4

BUSH

3Y1-22184-01-00

$38.99

5

SHIM,REAR ARM

240-22127-00-00

$6.99

6

COVER, THRUST

322-22128-01-00

$35.99

7

SHAFT, PIVOT

1M1-22141-00-00

Unavailable

8

PIN, COTTER

91490-30030-00

$8.49

9

NUT, CASTLE (4V7)

90171-14031-00

Unavailable

10

NIPPLE, GREASE

93700-06M03-00

Unavailable

11

CASE, CHAIN

4E7-22311-00-33

Unavailable

12

BOLT, HEXAGON

97013-05010-00

$0.59

13

WASHER, PLAIN (646)

92990-05600-00

$0.80

14

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

15

WASHER, PLAIN (646)

92990-05600-00

$0.80

16

GUARD, CHAIN

1M1-22318-00-00

Unavailable

17

BOLT, HEXAGON

97017-08016-00

Unavailable

18

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

19

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

22

BOLT (1M1)

90109-10453-00

Unavailable

23

PIN, COTTER

91490-20025-00

Unavailable

24

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

25

NUT, CASTLE

95307-10900-00

Unavailable

26

COVER, THRUST 1

483-22128-00-00

Unavailable

27

BOLT

90109-08452-00

Unavailable

28

WASHER, PLAIN

92990-08200-00

Unavailable

29

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

30

. NUT

95380-08700-00

Unavailable

31

CLIP (156-83525-00)

90468-10050-00

Unavailable

32

PIN, CLEVIS (1M1)

91701-06042-00

Unavailable

33

PIN, COTTER

91490-20025-00

Unavailable

34

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

35

ARM, TENSIONER

1M1-22179-00-00

Unavailable

36

OIL SEAL (2K8)

93109-14021-00

Unavailable

37

TENSIONER (2N0-22178-00-00)

ACC-11130-00-25

Unavailable

38

GUIDE, CHAIN

1M1-22187-00-00

Unavailable

39

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

40

SCREW, PAN HEAD

(92501-05040-00)

Unavailable

41

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

42

BOLT (1J4)

90109-10483-00

Unavailable

43

SPRING, TORSION (1J4)

90508-35350-00

Unavailable

44

REAR FOOTREST ASSY

120-27430-02-00

Unavailable

45

. BRACKET 1

120-27432-02-00

Unavailable

46

FOOTREST, REAR 1

2GV-27431-00-00

Unavailable

47

WASHER, PLATE (888)

90201-20279-00

Unavailable

48

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

49

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

50

PIN, COTTER

91490-16020-00

Unavailable

51

NUT, HEXAGON SMALL

95317-12700-00

Unavailable

52

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable
