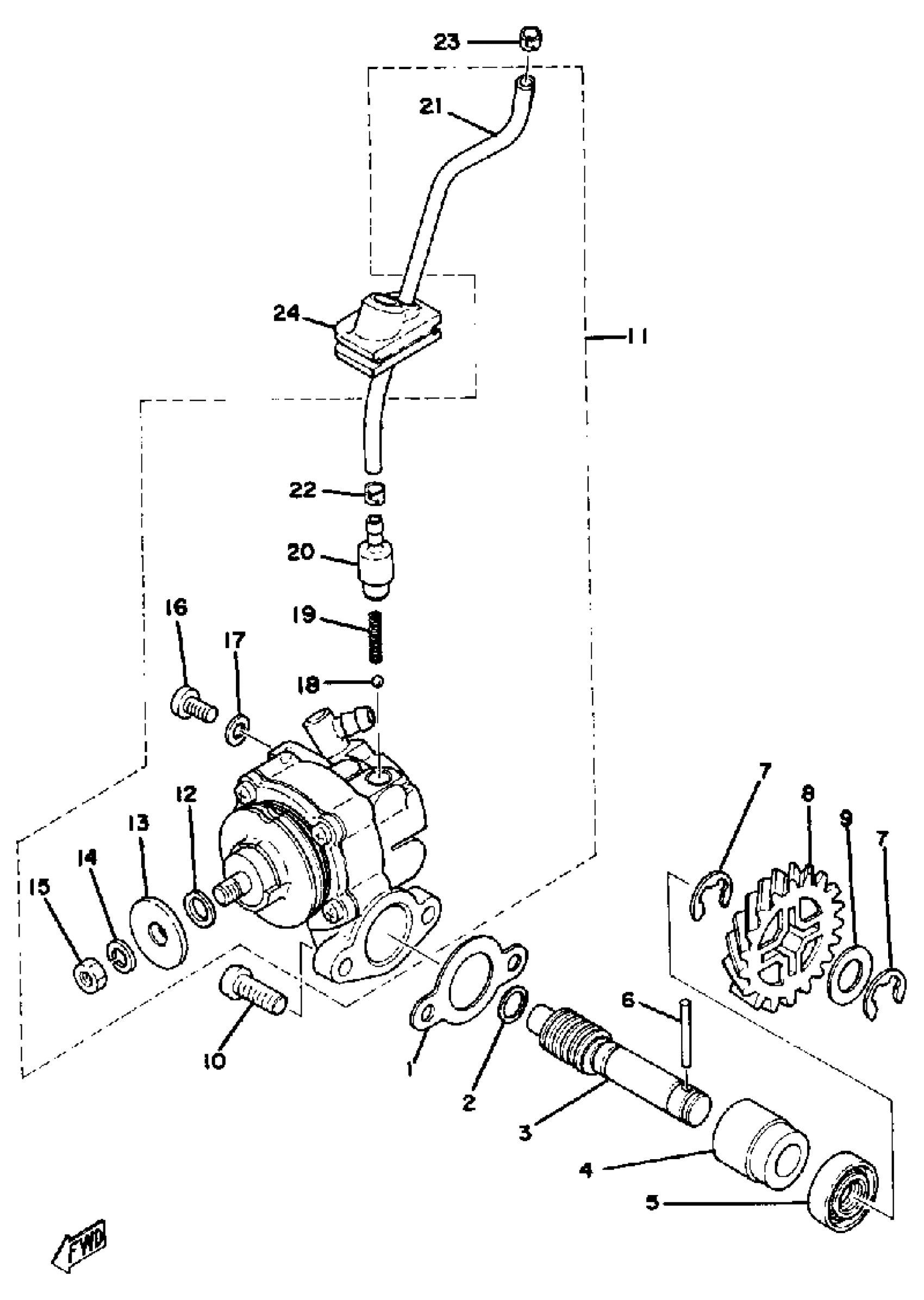

Yamaha DT400E (DT400E) 1978 OIL PUMP Diagram
#
Description
Price
2
WASHER, PLATE (1E7)
90201-08624-00
Unavailable
3
SHAFT, WORM
(1M2-13175-00-00)
Unavailable
3
SHAFT, WORM
(525-13175-01-00)
Unavailable
4
METAL, WORM SHAFT OUTER
137-13176-00-00
Unavailable
8
GEAR, PUMP DRIVE
1M1-13178-00-00
Unavailable
10
OIL PUMP ASSEMBLY
1M1-13101-01-00
Unavailable
10
OIL PUMP ASSEMBLY
1M2-13101-01-00
Unavailable
13
PLATE, ADJUSTING
137-13138-01-00
Unavailable
14
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
15
NUT, HEXAGON (663)
95380-05600-00
Unavailable
16
SCREW, BIND
98980-04008-00
Unavailable
17
. UNAVAILABLE IN PRICE BOOK
90430-40004-00
Unavailable
18
BALL
93505-32002-00
Unavailable
19
SPRING (278-13169-00)
90501-02018-00
Unavailable
20
NOZZLE
402-13552-00-00
Unavailable
21
HOSE (L700)
90445-05M07-00
Unavailable
21
HOSE (L700)
90445-05M07-00
Unavailable
22
CLIP (214-13164-00)
90468-02033-00
Unavailable
23
CLIP (214-13164-00)
90468-02033-00
Unavailable
24
HOLDER, OIL PIPE
(1M1-13174-00-00)
Unavailable
