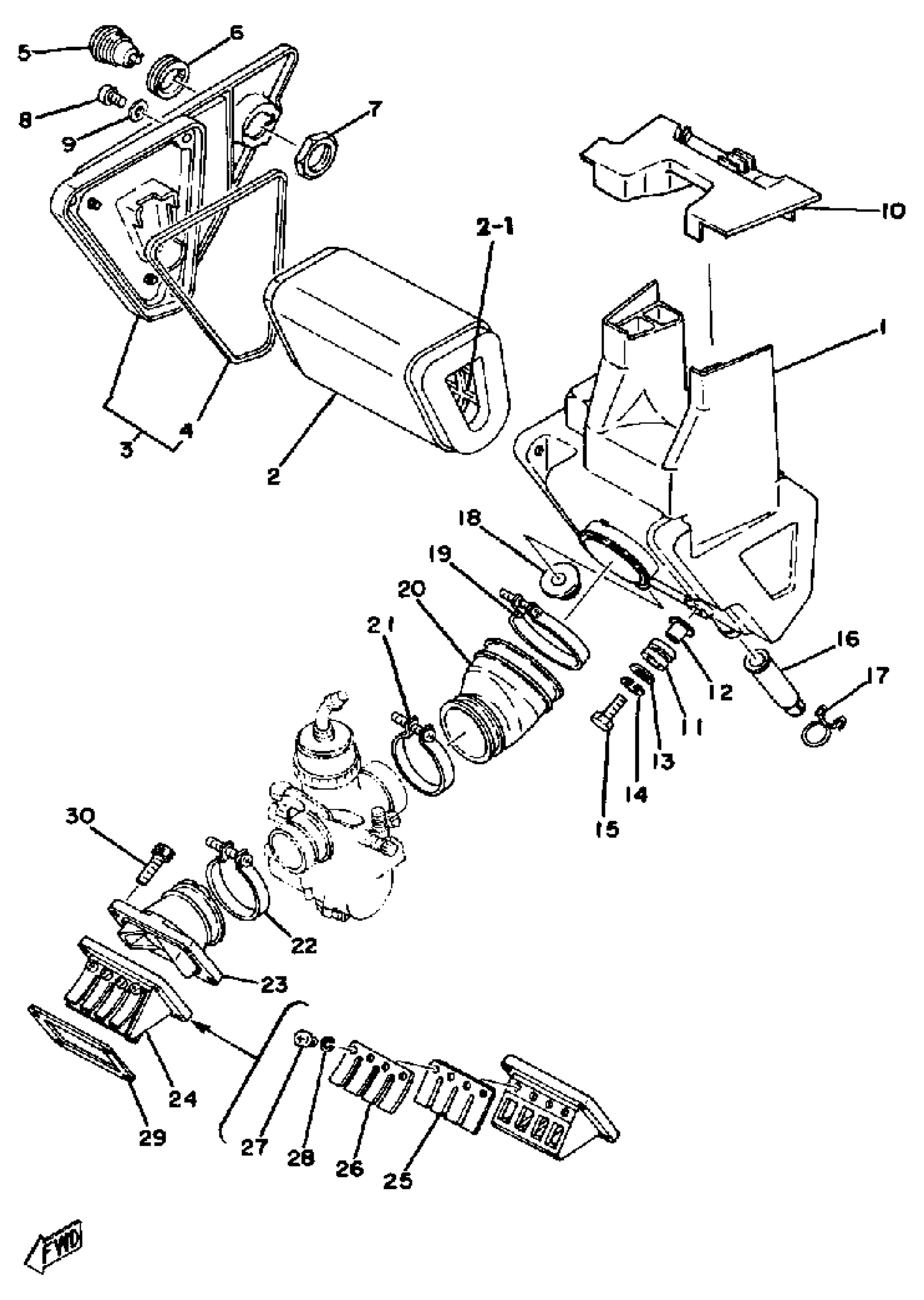

Yamaha DT400E (DT400E) 1978 INTAKE Diagram

#

Description
Price

1

AIR CLEANER CASE ASSEMBLY

(1M1-14401-00-00)

Unavailable

1

GUIDE, ELEMENT

1M1-14458-01-00

Unavailable

2

ELEMENT, AIR CLEANER

1M1-14451-01-00

$23.99

3

SIDE COVER ASSEMBLY 3

1M1-21730-00-00

Unavailable

4

SEAL

51Y-14462-00-00

$18.49

5

LOCK ASSY 2

1E6-21708-00-00

$61.99

6

GROMMET (1E6)

90480-24186-00

$8.49

7

NUT, HEXAGON (1E6)

90170-22187-00

$9.49

8

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

9

WASHER, PLAIN (646)

92990-05600-00

$0.80

10

COVER 2

(1M1-14418-00-00)

Unavailable

11

GROMMET 839774310000

90480-14023-00

$7.49

12

COLLAR 437216330000

90387-07391-00

Unavailable

13

WASHER, PLATE

90201-06380-00

$0.60

14

WASHER, SPRING

92995-06100-00

Unavailable

15

BOLT, HEXAGON

97017-06025-00

Unavailable

16

SEAL (509-14457-01)

509-14457-00-00

Unavailable

17

CLIP (806-24358-00)

90467-15012-00

Unavailable

18

GROMMET (509)

90480-18171-00

Unavailable

19

HOSE CLAMP ASSY

90450-64004-00

Unavailable

19

CLAMP

90465-10108-00

Unavailable

20

JOINT, AIR CLEANER 1

1M1-14453-00-00

Unavailable

20

JOINT, AIR CLEANER 1

1M2-14453-00-00

Unavailable

21

CLAMP HOSE 278144550000

90460-49058-00

Unavailable

21

CLAMP HOSE 304144550000

90460-51059-00

Unavailable

22

HOSE CLAMP ASSY(1MX)

90450-44046-00

Unavailable

22

CLAMP, HOSE

90460-51109-00

Unavailable

23

JOINT, CARBURETOR

1M1-13565-01-00

Unavailable

23

JOINT, CARBURETOR

(1M2-13565-01-00)

Unavailable

24

REED VALVE ASSY

46Y-13610-00-00

Unavailable

25

REED, VALVE

8AT-13613-00-00

Unavailable

26

STOPPER,REED VALVE

46Y-13616-00-00

Unavailable

27

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

28

WASHER, SPRING

92990-03100-00

Unavailable

29

GASKET, MANIFOLD

8Y7-13556-01-00

Unavailable

30

BOLT,SOCKET

91317-06025-00

Unavailable
