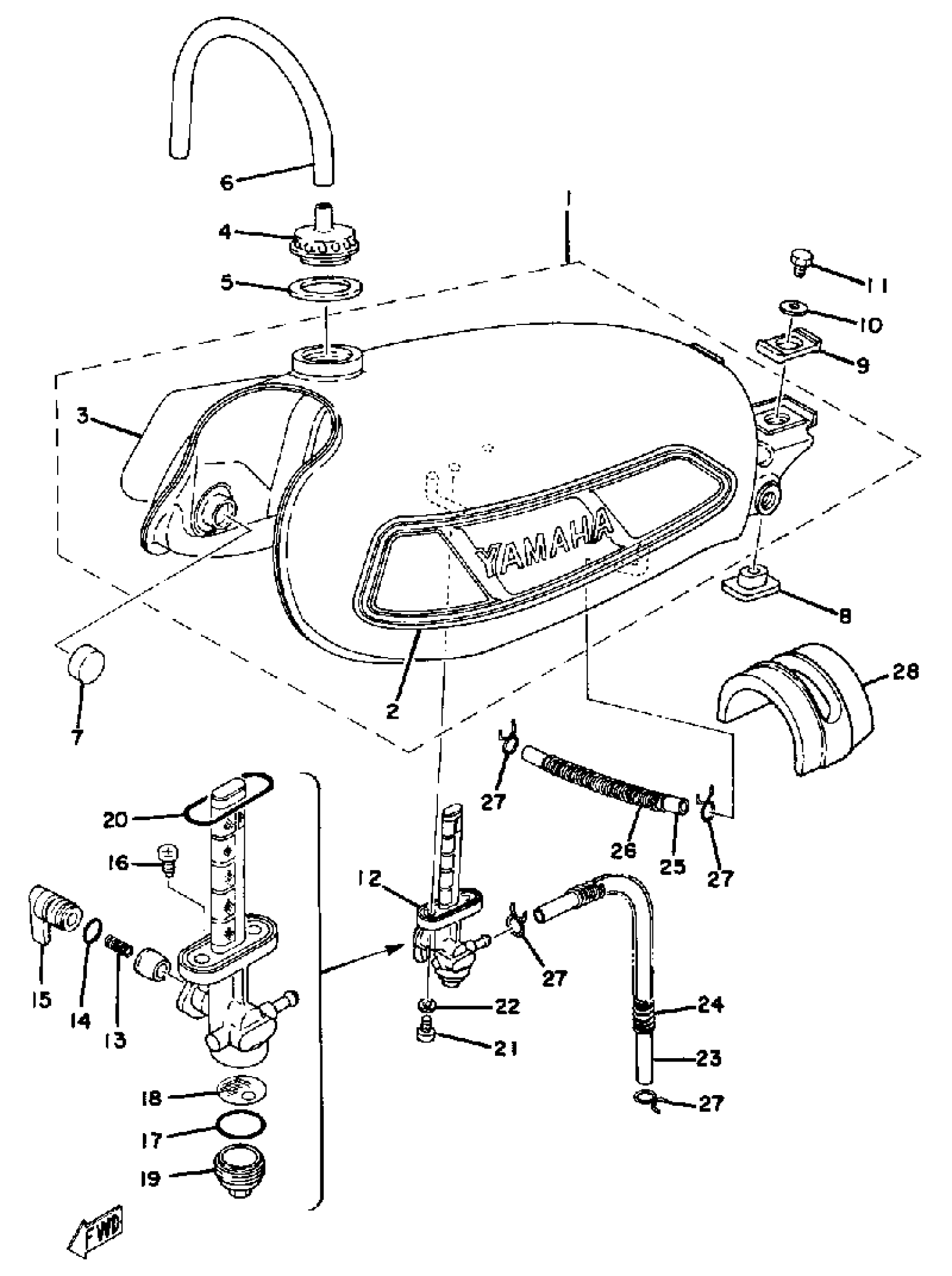

Yamaha DT400E (DT400E) 1978 FUEL TANK Diagram

FUEL TANK

(1M1-24110-00-06)

Unavailable

FUEL TANK

(1M1-24110-00-07)

Unavailable

GRAPHIC, FUEL TANK 1

(1M1-24244-02-00)

Unavailable

. GRAPHIC, FUEL TANK 2 RIGHT

1M1-24245-02-00

Unavailable

BODY, CAP

322-24611-02-00

$57.99

PACKING, CAP

1W1-24612-00-00

$9.99

HOSE (L1500)

90445-090F6-00

$31.99

DAMPER, LOCATING 1

3TB-24181-00-00

$14.49

DAMPER, LOCATING

1A0-24181-00-00

$6.99

WASHER, SPECIAL

1A0-24186-00-00

$5.49

WASHER, SPECIAL SHAPE

90209-06139-00

Unavailable

BOLT(3JP)

97017-06010-00

$3.76

FUEL COCK ASSEMBLY 1

1M1-24500-03-00

Unavailable

. SPRING

1A0-24529-01-00

Unavailable

O-RING

1A0-24512-00-00

Unavailable

. LEVER, COCK

1A0-24524-01-00

Unavailable

SCREW, LEVER FITTING

(1M1-24535-00-00)

Unavailable

GASKET, FILTER

498-24522-00-00

Unavailable

. STRAINER

1M1-24536-00-00

Unavailable

. CUP, FILTER

1A0-24521-01-00

Unavailable

GASKET, BODY

214-24512-00-00

Unavailable

SCREW 256241430000

90149-06011-00

Unavailable

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

HOSE

(90445-10309-00)

Unavailable

HOSE (L590)

90445-10020-00

Unavailable

SPRING, COMPRESSION (10L)

90501-08668-00

Unavailable

HOSE (L200)

90445-10752-00

Unavailable

SPRING, COMPRESSION

(90501-08429-00)

Unavailable

CLIP

90467-100A1-00

Unavailable

DAMPER, LOCATING 2

(1M1-24182-00-00)

Unavailable
