1978 Yamaha DT400E (DT400E) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1978 Yamaha DT400E (DT400E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

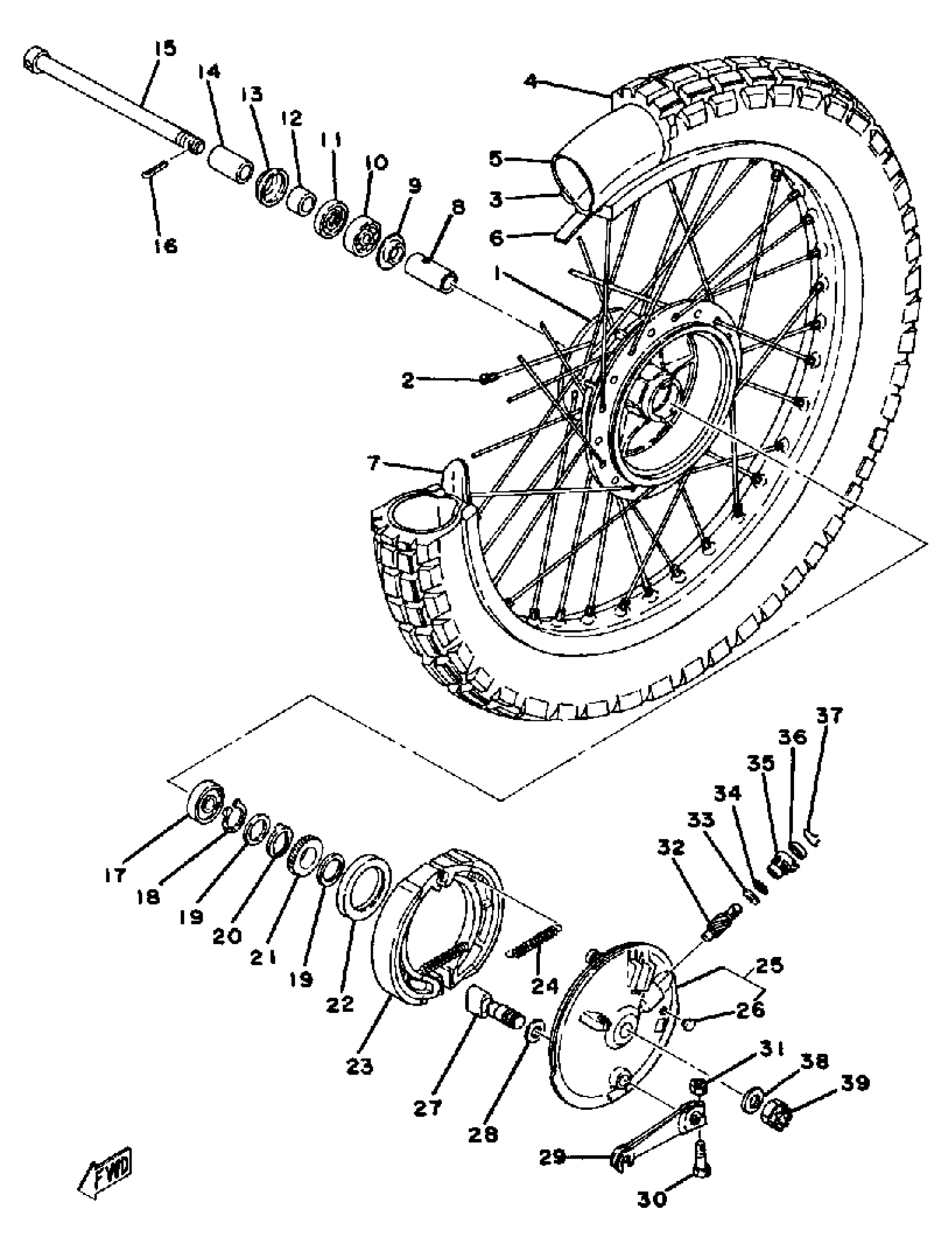

1978 Yamaha DT400E (DT400E) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

1E6-25111-00-98

1
Out of stock

2

SPOKE SET, FRONT

1E6-25104-01-00

1
Out of stock

3

RIM 1.60X21

94416-21326-00

1
Out of stock

4

TUBE, FRONT (2A6)

94227-21123-00

1

$43.59

In stock

5

TUBE, FRONT (2A6)

94227-21123-00

1

$43.59

In stock

6

UNAVAILABLE IN PRICE BOOK

94237-21024-00

1
Out of stock

7

SPACER, BEAD

1T1-25194-00-00

—

$53.98

In stock

8

SPACER(1EE)

90560-15293-00

—
Out of stock

9

FLANGE, SPACER

146-25116-00-00

1
Out of stock

10

BEARING

93306-20205-00

1

$32.63

In stock

11

OIL SEAL (20X35X7-136)

93102-20009-00

1

$9.10

In stock

12

COLLAR (322-25183-00)

90387-15418-00

1
Out of stock

13

COVER, HUB DUST

322-25118-00-00

1

$16.17

In stock

14

COLLAR

90387-15556-00

1
Out of stock

15

AXLE, WHEEL

275-25181-00-00

1
Out of stock

16

PIN, COTTER

91490-30030-00

—

$7.15

In stock

17

BEARING(3DL)

93306-20226-00

—

$33.15

In stock

18

CIRCLIP(1EY)

99009-22400-00

—

$6.17

In stock

19

WASHER PLATE 214251470000

90201-22283-00

—

$5.38

In stock

20

CLUTCH, METER

214-25149-01-00

—

$6.68

In stock

21

GEAR, DRIVE

308-25135-00-00

1
Out of stock

22

OIL SEAL (50X62X7-214)

93105-50010-00

—

$13.85

In stock

23

BRAKE SHOE SET-2PCS

431-W2536-00-00

1
Out of stock

24

—

$8.09

In stock

25

BRAKE SHOE PLATE ASSEMBLY

(1E6-25016-10-98)

1
Out of stock

26

GROMMET (397)

90480-10068-00

—

$6.77

In stock

27

CAMSHAFT

1E6-25151-00-00

1
Out of stock

28

SHIM, CAM SHAFT

148-25353-00-00

—

$6.40

In stock

29

LEVER, CAM SHAFT

2N6-25155-00-00

—

$199.85

In stock

30

BOLT, HEXAGON (538)

90101-06278-00

—

$1.82

In stock

31

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

32

GEAR, METER

308-25138-00-00

1
Out of stock

33

WASHER, PLATE 1832514600

90201-07076-00

—

$5.75

In stock

34

O-RING (26H)

93210-14579-00

—

$5.69

In stock

35

BUSHING

109-25136-00-00

—

$8.78

In stock

36

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

37

RING, STOP

102-25137-00-00

—
Out of stock

38

WASHER, PLAIN

92990-14200-00

—

$1.71

In stock

39

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock
