1978 Yamaha DT400E (DT400E) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1978 Yamaha DT400E (DT400E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

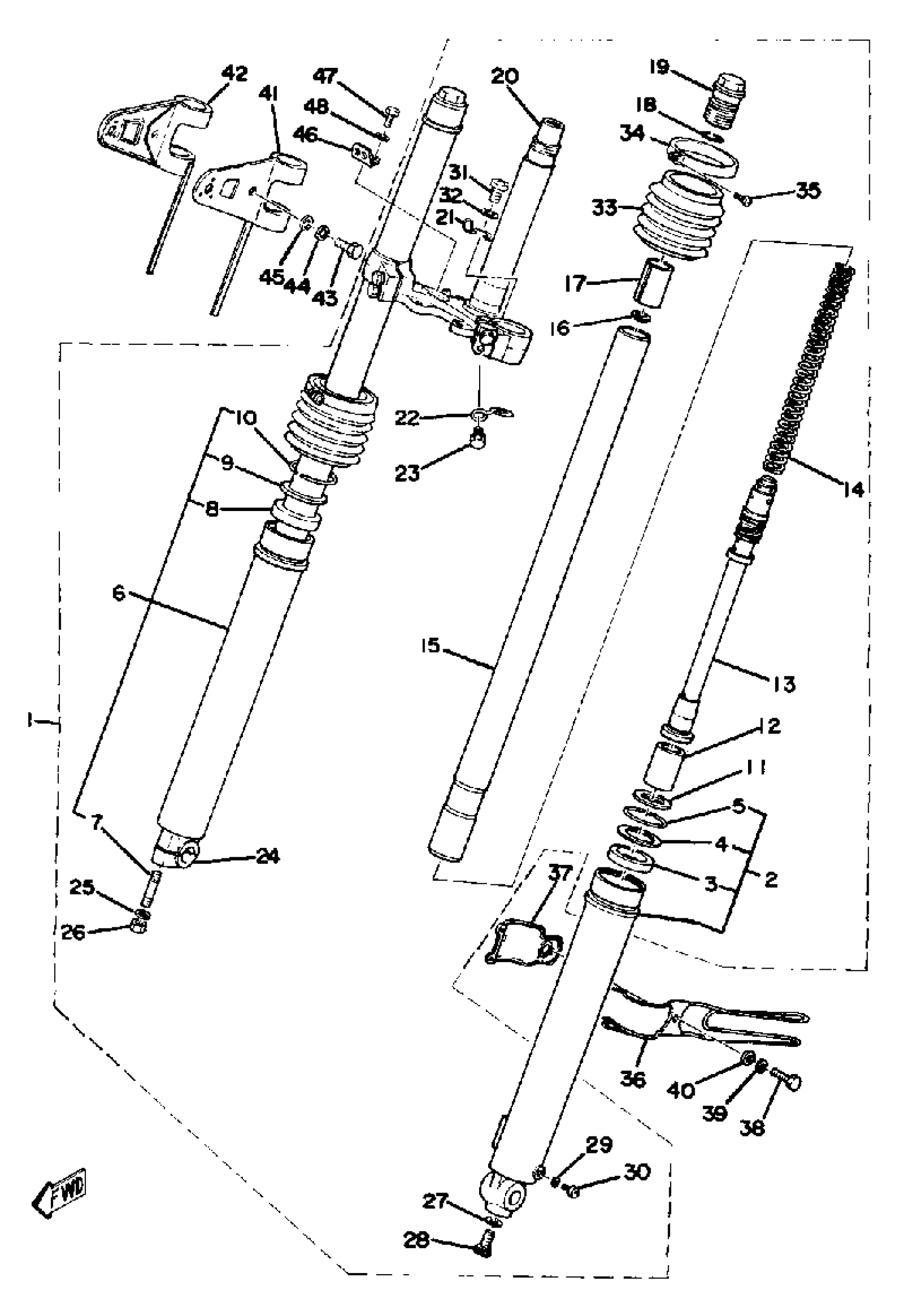

1978 Yamaha DT400E (DT400E) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(1M1-23101-40-00)

1
Out of stock

2

TUBE, OUTER 1

(1M1-23126-00-00)

1
Out of stock

3

OIL SEAL

584-23145-50-00

1

$52.72

In stock

4

.. WASHER, OIL SEAL

214-23146-00-00

1
Out of stock

5

.. CLIP, OIL SEAL

214-23156-00-00

1
Out of stock

6

TUBE, OUTER 2

(1M1-23136-00-00)

1
Out of stock

7

BOLT, STUD (278)

90116-08261-00

1
Out of stock

8

OIL SEAL

584-23145-50-00

1

$52.72

In stock

9

.. WASHER, OIL SEAL

214-23146-00-00

1
Out of stock

10

.. CLIP, OIL SEAL

214-23156-00-00

1
Out of stock

11

. CIRCLIP, INNER

93450-30033-00

1
Out of stock

12

PISTON, FRONT FORK

(509-23171-00-00)

1
Out of stock

13

CYLINDER, FRONT FORK

(1M1-23170-00-00)

1
Out of stock

14

SPRING, FRONT FORK

(1M1-23141-01-00)

1
Out of stock

15

. TUBE, INNER 1

1M1-23124-00-00

1
Out of stock

16

. SEAT, SPRING UPPER

278-23142-50-00

1
Out of stock

17

SPACER

(33Y-23118-00-00)

1
Out of stock

18

. GASKET

214-23114-00-00

1
Out of stock

19

. BOLT, CAP

366-23111-60-00

1
Out of stock

20

UNDER BRACKET

(1M1-23340-40-33)

1
Out of stock

21

CLIP

(90468-20085-00)

1
Out of stock

22

CLIP

(90468-20087-00)

1
Out of stock

23

BOLT, AXLE HOLDER

18G-23128-00-00

—

$7.77

In stock

24

. HOLDER, AXLE (291-23167-60)

291-23167-61-00

1
Out of stock

25

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

26

NUT, HEXAGON

(90170-08176-00)

1
Out of stock

27

GASKET

509-23158-L0-00

—

$14.34

In stock

28

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

29

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

30

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

31

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

32

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

33

. BOOT, FRONT FORK

1M1-23191-40-00

1
Out of stock

34

BAND

(214-23192-40-00)

1
Out of stock

35

SCREW

509-23194-L0-00

—

$4.12

In stock

36

HOLDER, CABLE 1

(1M1-23318-00-00)

1
Out of stock

37

HOLDER, CABLE 2

(1M1-23319-00-00)

1
Out of stock

38

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

39

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

40

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

41

STAY, HEADLIGHT 1

1M2-84118-00-33

1
Out of stock

42

STAY, HEADLIGHT 2

1M2-84119-00-33

1
Out of stock

43

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

44

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

45

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

46

BRACKET, HORN

(1M1-21343-00-00)

1
Out of stock

47

BOLT (661)

97013-06012-00

—

$4.71

In stock

48

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
