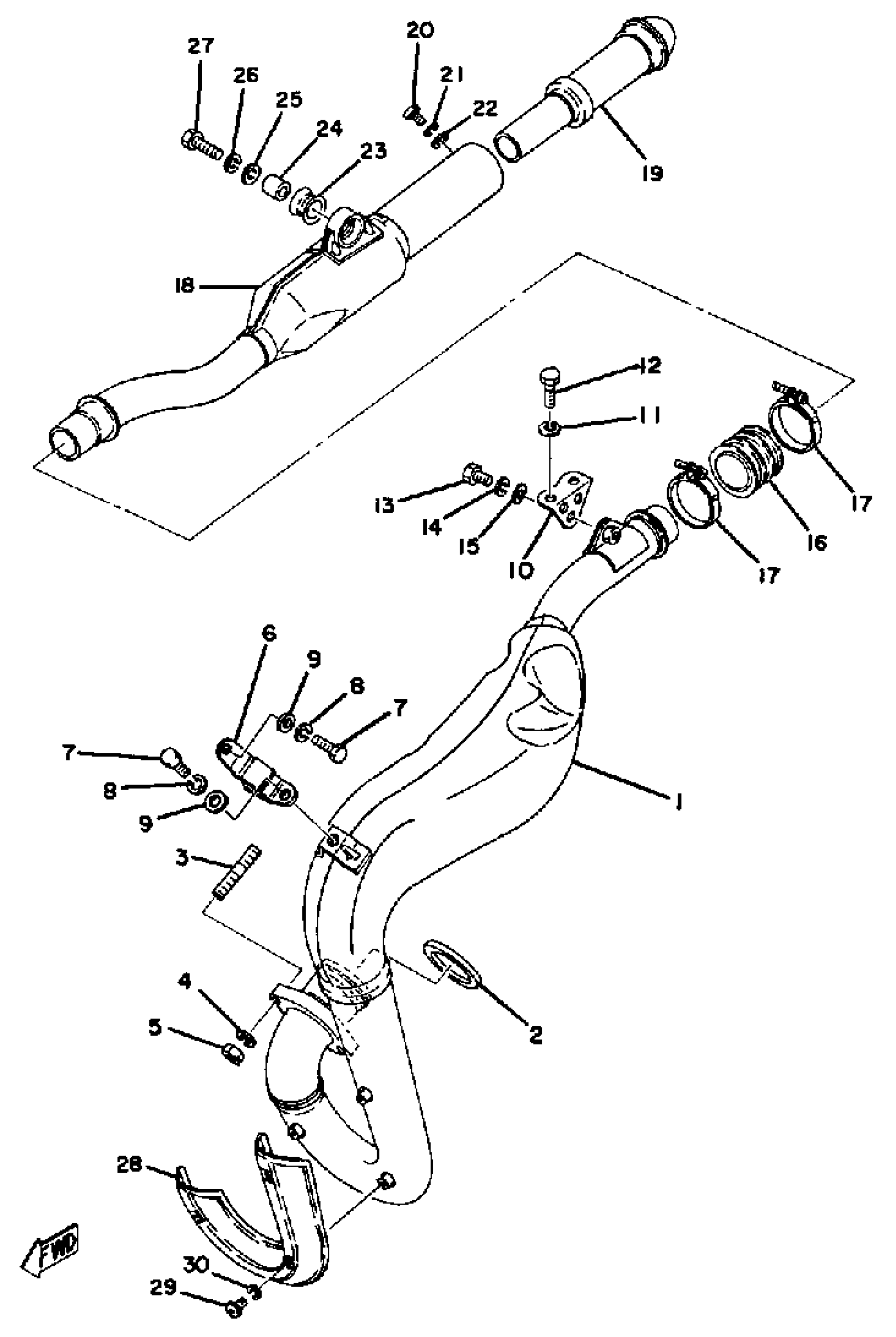

Yamaha DT400E (DT400E) 1978 EXHAUST Diagram
#
Description
Price
1
EXHAUST PIPE ASSEMBLY L
(1M2-14610-03-00)
Unavailable
1
EXHAUST PIPE ASSEMBLY L
1N6-14610-00-00
Unavailable
3
BOLT, STUD (17W)
90116-08408-00
Unavailable
6
STAY, MUFFLER 2
1M1-14772-00-00
Unavailable
8
WASHER, SPRING
92995-06100-00
Unavailable
10
STAY, MUFFLER 1
1M1-14771-01-00
Unavailable
11
WASHER, SPRING
92995-06100-00
Unavailable
15
.. WASHER, PLATE
92990-08600-00
Unavailable
16
GASKET, MUFFLER JOINT
1M1-14714-00-00
Unavailable
17
CLAMP, HOSE (5H0)
90460-43179-00
Unavailable
18
SILENCER, EXHAUST
1M1-14753-00-00
Unavailable
19
PIPE, OUTLET
1M1-14752-01-00
Unavailable
20
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
21
WASHER, SPRING
92995-06100-00
Unavailable
23
DAMPER
565-14747-00-00
Unavailable
24
COLLAR (437)
90387-08258-00
Unavailable
25
WASHER, PLATE(8AT)
90201-081R9-00
Unavailable
27
BOLT, HEXAGON
97013-08030-00
Unavailable
28
PROTECTER, MUFFLER 2
1M1-14728-00-00
Unavailable
29
SCREW, BINDING
98907-06010-00
Unavailable
30
WASHER, SPRING
92907-06100-00
Unavailable
