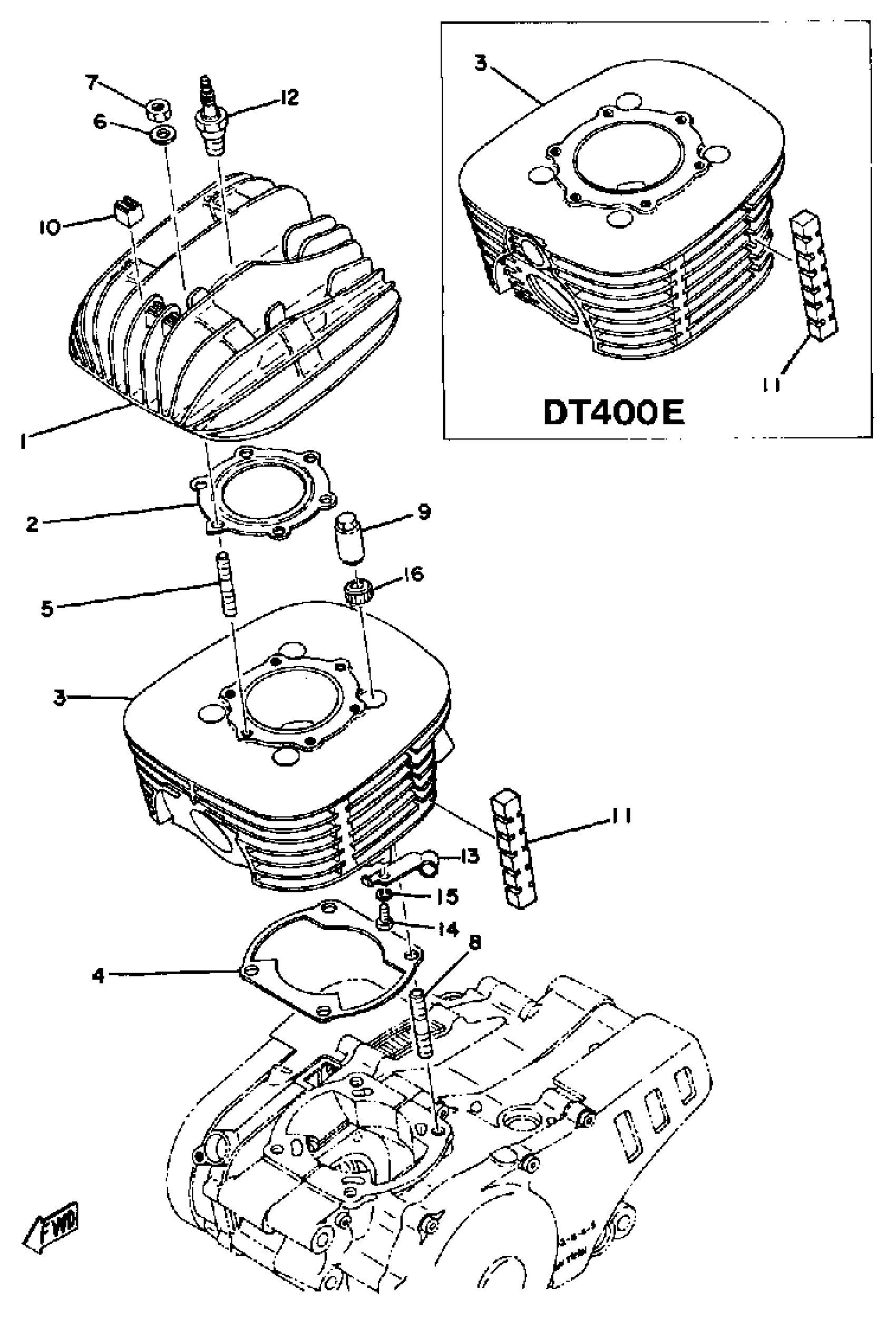

Yamaha DT400E (DT400E) 1978 CYLINDER CYLINDER HEAD Diagram

#

Description
Price

1

HEAD, CYLINDER 1

(1M1-11111-01-00)

Unavailable

1

HEAD, CYLINDER 1

(1M2-11111-00-00)

Unavailable

2

GASKET, CYLINDER HEAD

434-11181-00-00

$31.99

2

GASKET, CYLINDER HEAD

500-11181-00-00

$75.99

3

CYLINDER 1

(1M1-11311-00-00)

Unavailable

3

CYLINDER 1

(1M2-11311-00-00)

Unavailable

4

GASKET, CYLINDER

1M1-11351-01-00

Unavailable

4

GASKET, CYLINDER

1M2-11351-01-00

Unavailable

5

BOLT STUD 363111790000

90116-08104-00

$17.99

6

WASHER, PLATE (397)

90201-08100-00

$8.49

7

NUT(6L2)

95333-08600-00

$2.49

8

BOLT (363-11361-00)

90116-10087-00

$17.99

9

NUT

90179-10021-00

$25.99

10

ABSORBER

363-11161-00-00

$7.99

11

ABSORBER 1

(1M1-11161-00-00)

Unavailable

11

ABSORBER 1

1M2-11161-00-00

Unavailable

12

BR8ES NGK SCREW TOP 4PK

BR8-ES000-00-00

Unavailable

13

HOLDER, CLCH CABLE

1M1-15441-00-00

Unavailable

14

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

15

WASHER, SPRING

92995-06100-00

Unavailable

16

WASHER, PLATE

(90201-11648-00)

Unavailable
