CRANKSHAFT PISTON

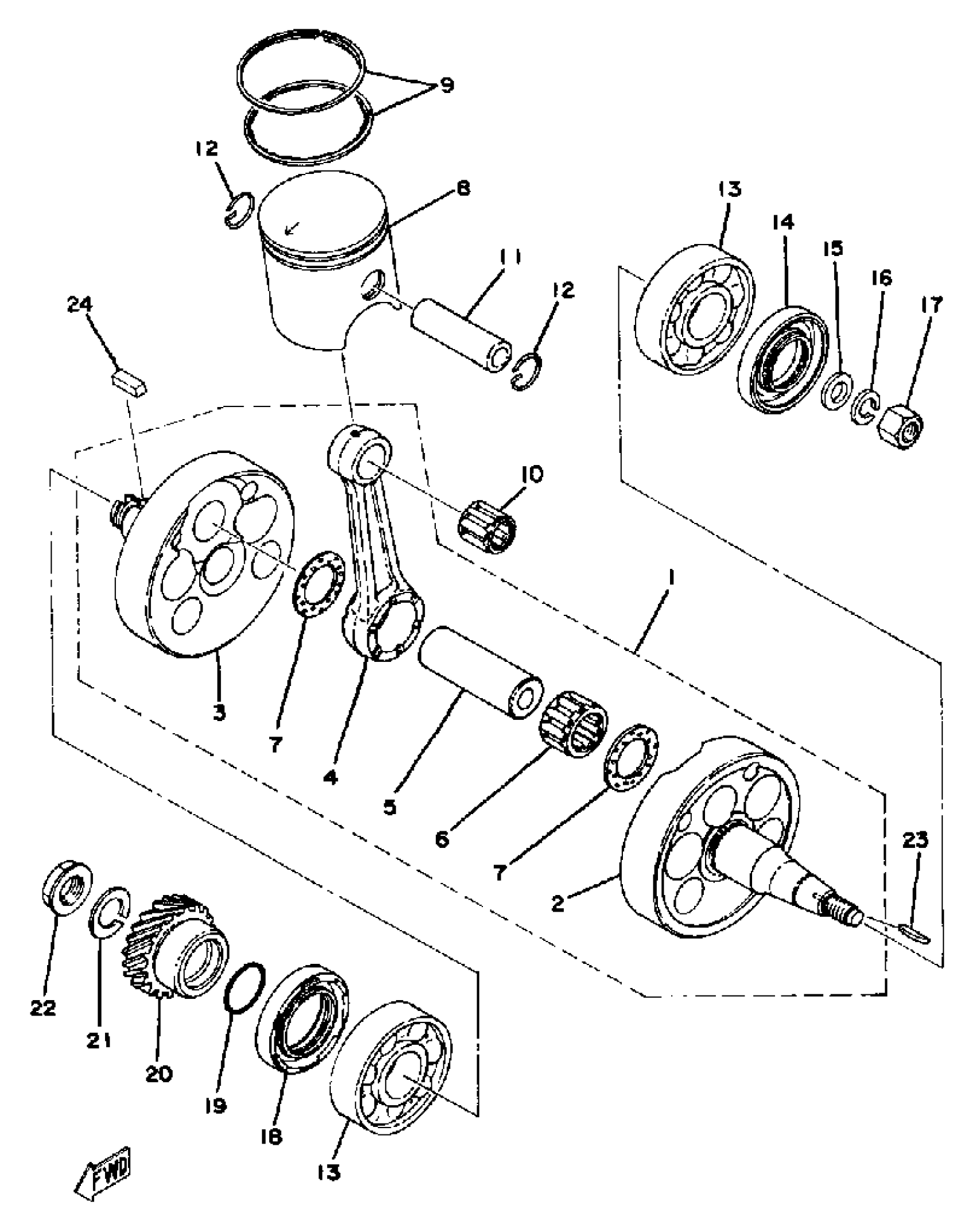

Yamaha DT400E (DT400E) 1978 CRANKSHAFT PISTON Diagram
#
1
CRANKSHAFT ASSEMBLY
(1M1-11400-01-00)
Unavailable
1
CRANKSHAFT ASSEMBLY
(1M2-11400-00-00)
Unavailable
2
CRANK 1
(1M1-11412-01-00)
Unavailable
2
CRANK 1
(1M2-11412-01-00)
Unavailable
3
CRANK 2
(1M1-11422-00-00)
Unavailable
3
CRANK 2
(1M2-11422-01-00)
Unavailable
4
.. ROD, CONNECTING
498-11651-00-00
Unavailable
6
BEARING, CYLINDRICAL(4JW)
93310-425P2-00
Unavailable
8
PISTON STD (69.96MM STD)
1M1-11631-01-96
Unavailable
8
PISTON 1 O/S 0.25 (70.25MM 1ST O.S.)
1M1-11635-01-00
Unavailable
8
PISTON 2 O/S 0.50 (70.50MM 2ND O.S.)
1M1-11636-01-00
Unavailable
8
PISTON 3 O/S 0.75 (70.75MM 3RD O.S.)
1M1-11637-01-00
Unavailable
8
PISTON 4 O/S 1.00 (4TH O.S.)
1M1-11638-01-00
Unavailable
8
PISTON STD (84.96MM STD)
1M2-11631-01-96
Unavailable
8
PISTON 1 O/S 0.25 (85.25MM 1ST O.S.)
1M2-11635-01-00
Unavailable
8
PISTON 2 O/S 0.50 (85.50MM 2ND O.S.)
1M2-11636-01-00
Unavailable
8
PISTON 3 O/S 0.75 (85.75MM 3RD O.S.)
1M2-11637-01-00
Unavailable
8
PISTON 4 O/S 1.00 (86.00MM 4TH O.S.)
1M2-11638-01-00
Unavailable
9
PISTON RINGSET STD (STD)
1M1-11610-00-00
Unavailable
9
PISTON RINGSET 1ST (1ST O.S.)
1M1-11610-10-00
Unavailable
9
PISTON RINGSET 2ND (2ND O.S.)
1M1-11610-20-00
Unavailable
9
PISTON RINGSET 3RD (3RD O.S.)
1M1-11610-30-00
Unavailable
9
PISTON RINGSET 4TH (4TH O.S.)
1M1-11610-40-00
Unavailable
9
PISTON KIT STD
(1M1-11630-01-00)
Unavailable
9
PISTON KIT 1ST
(1M1-11630-11-00)
Unavailable
9
PISTON KIT 2ND
(1M1-11630-21-00)
Unavailable
9
PISTON KIT 3RD
(1M1-11630-31-00)
Unavailable
9
PISTON 4 O/S 1.00 (4TH O.S.)
1M1-11638-01-00
Unavailable
9
PISTON RINGSET STD (STD)
1M2-11610-01-00
Unavailable
9
PISTON RINGSET 1ST (1ST O.S.)
1M2-11610-11-00
Unavailable
9
PISTON RINGSET 2ND (2ND O.S.)
1M2-11610-21-00
Unavailable
9
PISTON RINGSET 3RD (3RD O.S.)
1M2-11610-31-00
Unavailable
9
PISTON RINGSET 4TH (4TH O.S.)
1M2-11610-41-00
Unavailable
9
PISTON KIT STD
(1M2-11630-00-00)
Unavailable
9
PISTON KIT 1ST
(1M2-11630-10-00)
Unavailable
9
PISTON KIT 2ND
(1M2-11630-20-00)
Unavailable
9
PISTON KIT 3RD
(1M2-11630-30-00)
Unavailable
9
PISTON KIT 4TH
(1M2-11630-40-00)
Unavailable
10
BRG,CYL-CAL ROLLER 15.6G KY
93310-218A6-00
Unavailable
11
PIN, PISTON
214-11633-00-00
Unavailable
11
PIN, PISTON
275-11633-00-00
Unavailable
12
CLIP 6041163400
93450-20026-00
Unavailable
13
BEARING (5X5)
93306-20627-00
Unavailable
13
BRG,R-B 6306 72MM 351G KY
93306-30615-00
Unavailable
14
OIL SEAL(38V)
93103-30150-00
Unavailable
15
WASHER, PLATE (583)
90201-12593-00
Unavailable
16
YBS67-12 WASHER,SPRING
92990-12100-00
Unavailable
17
NUT(55K)
90170-12347-00
Unavailable
18
OIL SEAL (434)
93103-40091-00
Unavailable
19
O-RING (498)
93210-29282-00
Unavailable
20
GEAR, PRI DRIVE
(1M1-16111-00-00)
Unavailable
21
WASHER(N15)
92907-18100-00
Unavailable
22
NUT (498)
90179-18172-00
Unavailable
23
KEY, WOODRUFF
90280-05001-00
Unavailable
24
.. ROD, CONNECTING
498-11651-00-00
Unavailable
24
CONNECTING ROD ASSY
5X5-11650-00-00
Unavailable
24
KEY, STRAIGHT (498)
90282-07019-00
Unavailable
24
BEARING, CYLINDRICAL(4JW)
93310-425P2-00
Unavailable
