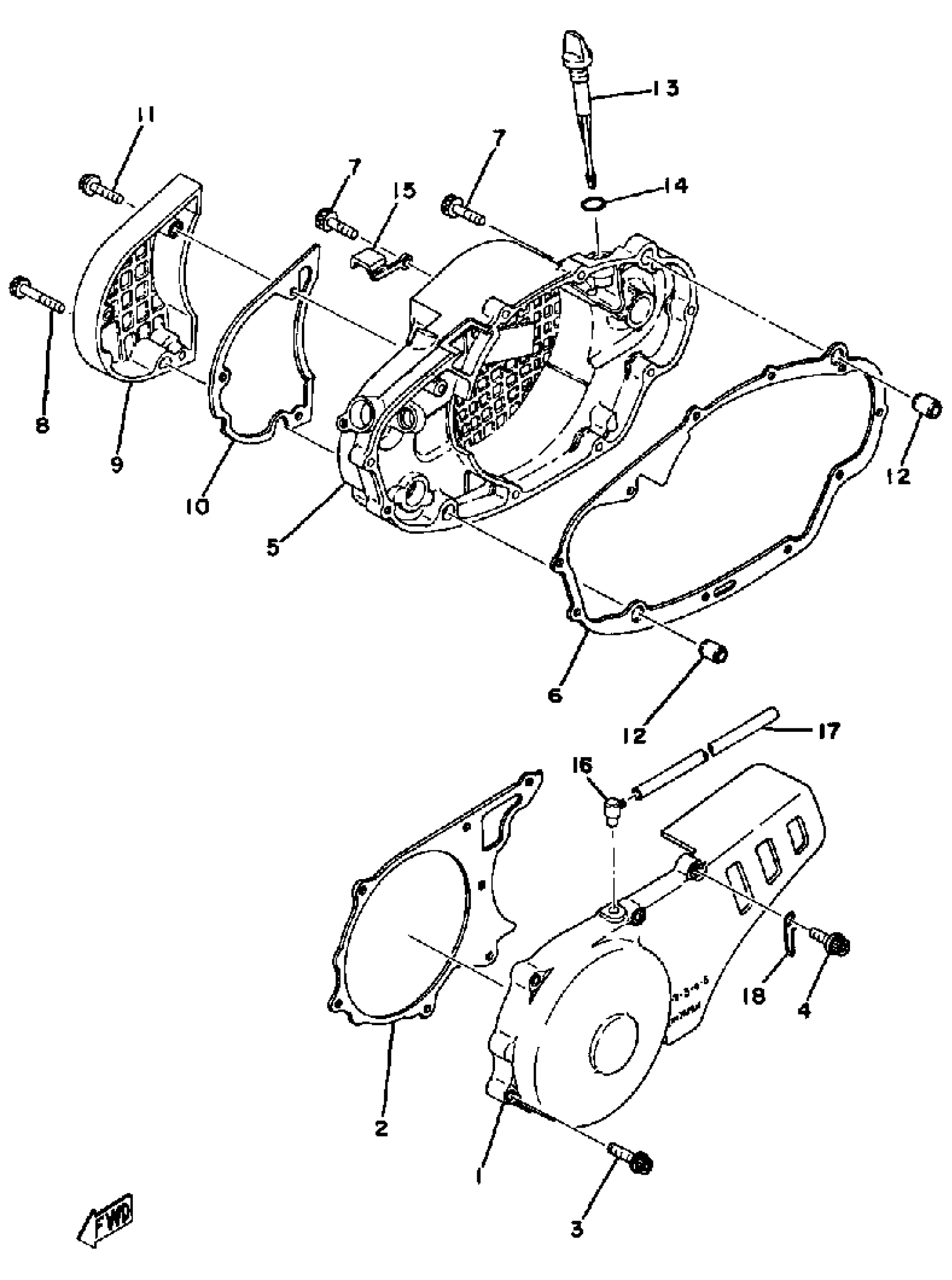

Yamaha DT400E (DT400E) 1978 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE R

1M2-15421-02-00

Unavailable

1

COVER, CRANKCASE R

1M2-15421-02-00

Unavailable

2

GASKET, CRCS COVER

1M1-15451-01-00

Unavailable

3

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

4

BOLT,SOCKET

91317-06025-00

$5.60

5

COVER, CRANKCASE 3

1M1-15431-00-00

Unavailable

6

GASKET, CRANK CASE COVER (R.H)

1M1-15461-01-00

$37.99

7

BOLT,SOCKET

91317-06025-00

$5.60

8

BOLT,SOCKET

91317-06040-00

$3.76

9

COVER, OIL PUMP

1M1-15416-01-00

Unavailable

10

GASKET,O/PMP CVR1

1M1-15456-01-00

Unavailable

11

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

12

PIN, DOWEL

99530-12016-00

$4.89

13

PLUG, OIL

1M1-15363-00-00

Unavailable

14

O-RING (26H)

93210-14579-00

$7.49

15

CLAMP

(90465-10096-00)

Unavailable

16

BREATHER

583-15371-00-00

Unavailable

17

HOSE (L1050)

90445-072G8-00

Unavailable

18

CLAMP

90465-20035-00

Unavailable
