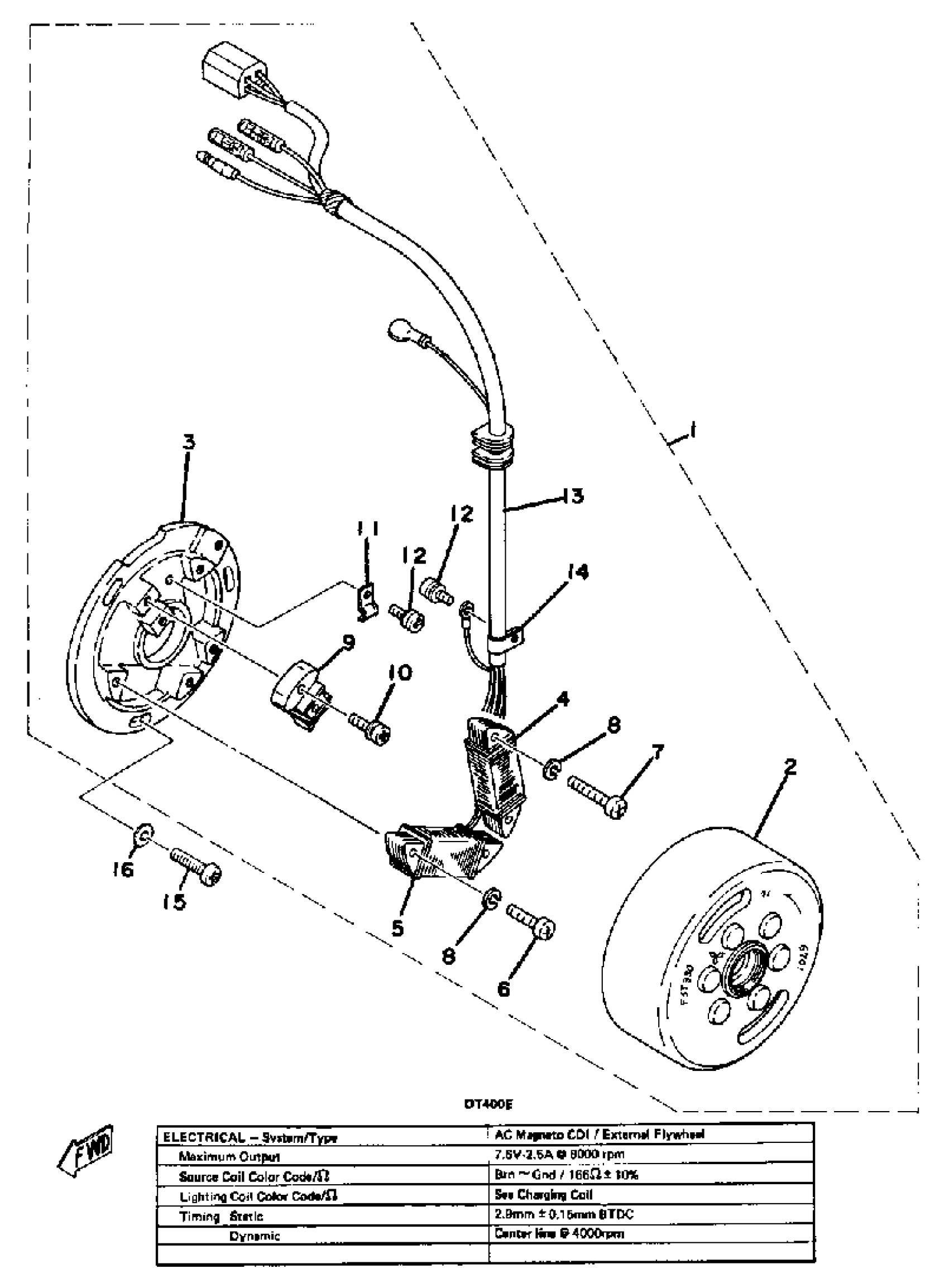

Yamaha DT400E (DT400E) 1978 CDI MAGNETO DT400E Diagram

#

Description

Price

1

CDI MAGNETO ASSEMBLY

(1M2-85500-22-00)

Unavailable

2

ROTOR ASSEMBLY

(1M2-85550-21-00)

Unavailable

3

. BASE, MAGNETO

1M2-85509-20-00

Unavailable

4

. COIL SOURCE 2

1M2-85512-20-00

Unavailable

5

. COIL, LIGHTING 1

1M2-85513-22-00

Unavailable

6

SCREW, PAN HEAD (686)

98580-05035-00

Unavailable

7

SCREW, PAN HEAD

(92503-05025-00)

Unavailable

8

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

9

. COIL, PULSER

1M2-85580-20-00

Unavailable

10

SCREW, PAN HEAD

98517-04025-00

Unavailable

11

CLAMP, LEAD

(445-85528-20-00)

Unavailable

12

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

13

LEAD WIRE ASSEMBLY

(1M2-85515-21-00)

Unavailable

14

CLAMP, READ

445-81328-20-00

Unavailable

15

SCREW PAN HEAD

98580-06020-00

$8.49

16

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable
