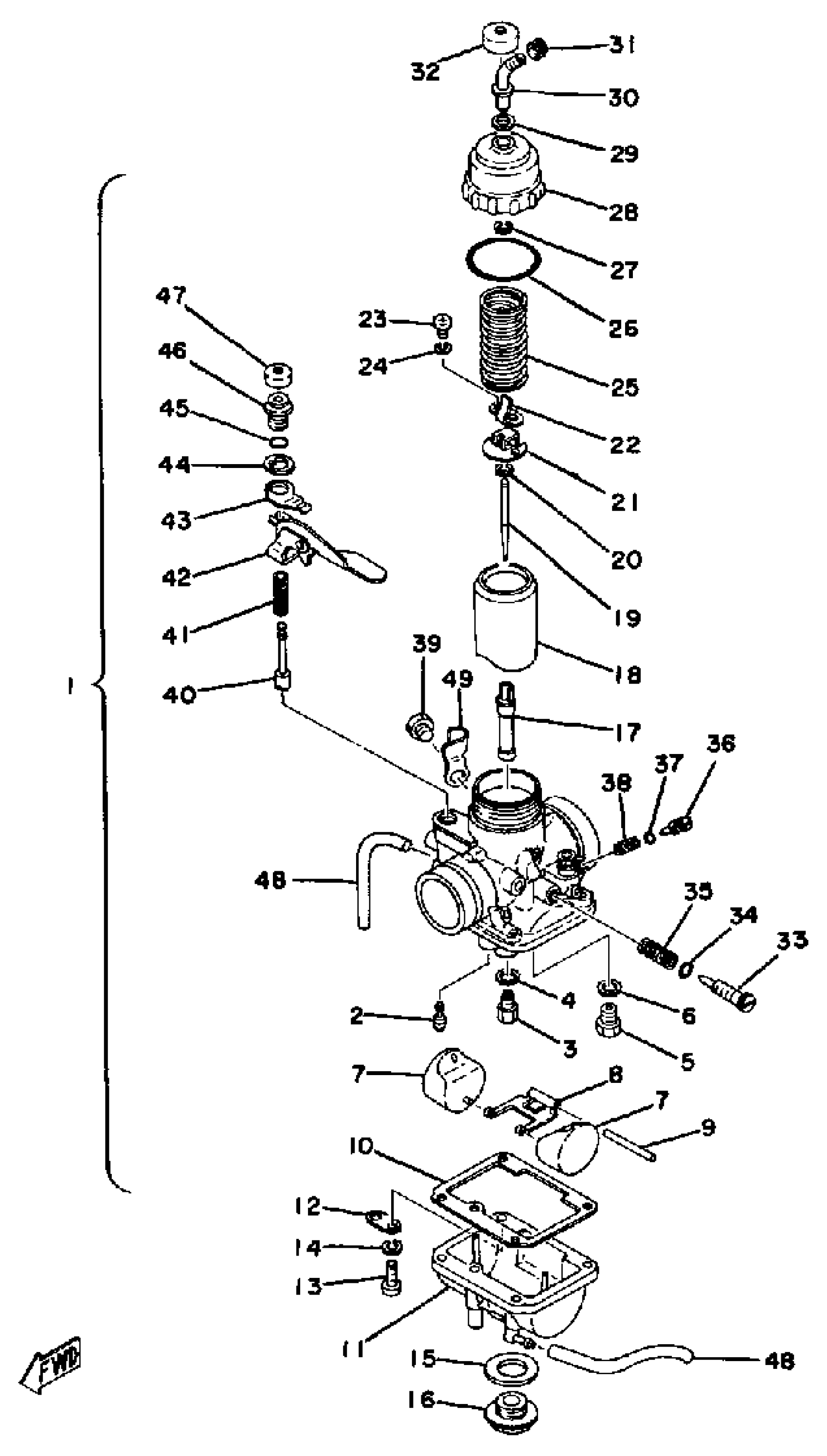

Yamaha DT400E (DT400E) 1978 CARBURETOR DT250E Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

(1M1-14101-01-00)

Unavailable

2

JET, PILOT (# 50)

193-14142-50-00

$8.99

3

JET, MAIN #135

137-14143-27-00

Unavailable

3

JET, MAIN #140

137-14143-28-A0

Unavailable

3

JET, MAIN #150

137-14143-30-00

$7.99

4

WASHER,MAIN JET

137-14153-00-00

$7.99

5

VALVE SEAT ASSY

168-14190-28-00

$36.99

6

WASHER, VALVE SEAT

214-14195-00-00

$7.99

7

. FLOAT

280-14185-00-00

Unavailable

8

. ARM, FLOAT

280-14187-00-00

Unavailable

9

PIN, FLOAT

127-14186-00-00

$6.65

10

GASKET, FLOAT CHAMBER

360-14184-01-00

$37.99

11

BODY, FLOAT CHAMBER 1

(402-14181-12-00)

Unavailable

12

PLATE

132-14146-00-00

Unavailable

13

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

14

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

15

WASHER,SCREW PLUG

278-14117-00-00

Unavailable

16

. PLUG, SCREW

(278-14115-00-00)

Unavailable

17

NOZZLE, MAIN

(278-14141-28-00)

Unavailable

18

VALVE, THROTTLE 1

(1M1-14112-15-00)

Unavailable

19

. NEEDLE

168-14116-33-00

Unavailable

20

CLIP

3FA-14137-00-00

Unavailable

21

PLATE

(1A0-14243-00-00)

Unavailable

22

SPRING

(1A0-14253-00-00)

Unavailable

23

SCREW PAN HEAD

98580-03010-00

Unavailable

24

WASHER, SPRING

92990-03100-00

Unavailable

25

SPRING, THROTTLE VALVE

248-14131-00-00

Unavailable

26

. O-RING

361-14147-00-00

Unavailable

27

CLIP

363-14137-00-00

Unavailable

28

. TOP, MIXING CHAMBER (498-14158-00)

498-14158-00-33

Unavailable

29

GASKET

509-14198-00-00

Unavailable

30

. CABLE ADJUST SCREW SET

23X-14106-00-00

Unavailable

31

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

32

CAP

3X3-14169-00-00

Unavailable

33

. SCREW, THROTTLE

493-14122-00-00

Unavailable

34

O-RING

214-14147-00-00

Unavailable

35

. SPRING, THROTTLE STOP

493-14133-00-00

Unavailable

36

AIR SCREW SET

10W-14104-00-00

Unavailable

37

O-RING (493-CARB.)

354-14147-00-00

Unavailable

38

SPRING, AIR ADJUSTING

127-14134-00-00

Unavailable

39

. SCREW

1A0-14991-00-00

Unavailable

40

. PLUNGER, STARTER

1A0-14171-00-00

Unavailable

41

. SPRING, PLUNGER

256-14135-00-00

Unavailable

42

LEVER, STARTER 1

(1A0-14175-00-00)

Unavailable

43

. PLATE, STARTER LEVER

(170-14178-00-00)

Unavailable

44

WASHER, STARTER LEVER

(1A0-14179-00-00)

Unavailable

45

O-RING (248)

93220-09001-00

Unavailable

46

CAP, PLUNGER

(500-14174-00-00)

Unavailable

47

. COVER, PLUNGER CAP

802-14173-00-00

Unavailable

48

PIPE

23F-14197-00-00

Unavailable

49

CLAMP

90465-10108-00

Unavailable
