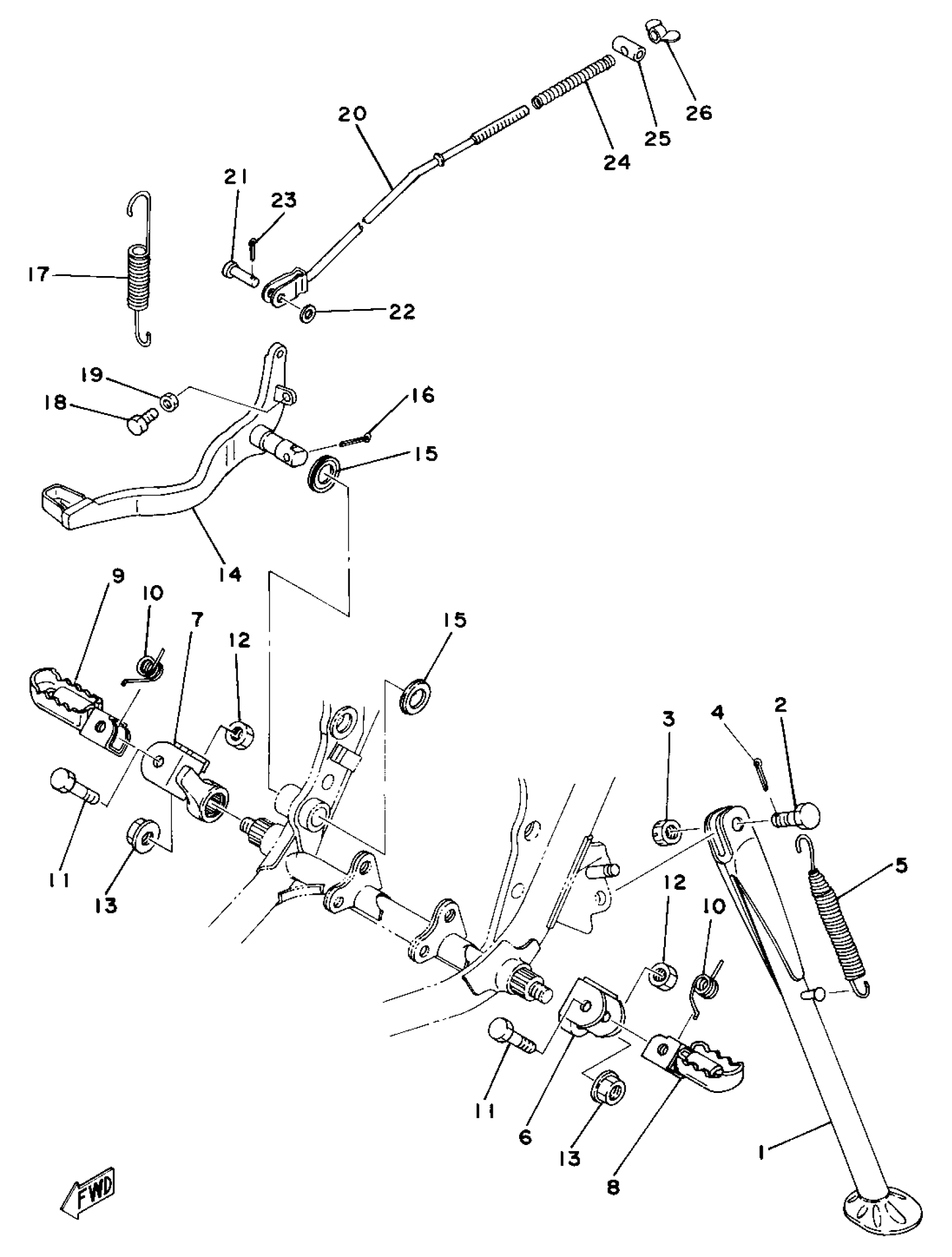

Yamaha DT400D (DT400D) 1977 STAND - FOOTREST - BRAKE PEDAL Diagram

#

Description
Price

1

STAND, SIDE

2Y0-27311-00-33

Unavailable

2

BOLT, HEXAGON (278-2731700)

90102-10006-00

$10.49

3

NUT, CASTLE

95307-10900-00

Unavailable

4

PIN, COTTER

91490-20025-00

$1.99

5

SPRING (460)

90507-29009-00

$20.99

6

BRACKET, FOOTREST 1

1M1-27412-00-00

Unavailable

7

BRACKET, FOOTREST 2

(1M1-27422-00-00)

Unavailable

8

FOOTREST 1

22W-27411-01-90

$32.99

9

FOOTREST 2

22W-27421-01-90

$32.99

10

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

11

BOLT

(90101-08244-00)

Unavailable

12

NUT, U

95617-08100-00

$9.49

13

NUT(3GG)

90179-12588-00

$7.49

14

PEDAL, BRAKE

1M1-27211-01-33

Unavailable

15

COVER, DUST

498-27235-00-00

$10.99

16

PIN, COTTER

91490-30030-00

Unavailable

17

SPRING, TENSION

90506-18289-00

Unavailable

18

BOLT

(90109-06339-00)

Unavailable

19

NUT(650)

95380-06700-00

Unavailable

20

ROD, BRAKE

483-27231-00-00

Unavailable

21

PIN, CLEVIS (24X)

90240-06103-00

Unavailable

22

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

23

PIN, COTTER

91490-25020-00

Unavailable

24

SPRING, (180-27236-00)

90501-10245-00

Unavailable

25

PIN 1562723700

90249-12008-00

Unavailable

26

NUT (25K)

90179-06411-00

Unavailable
