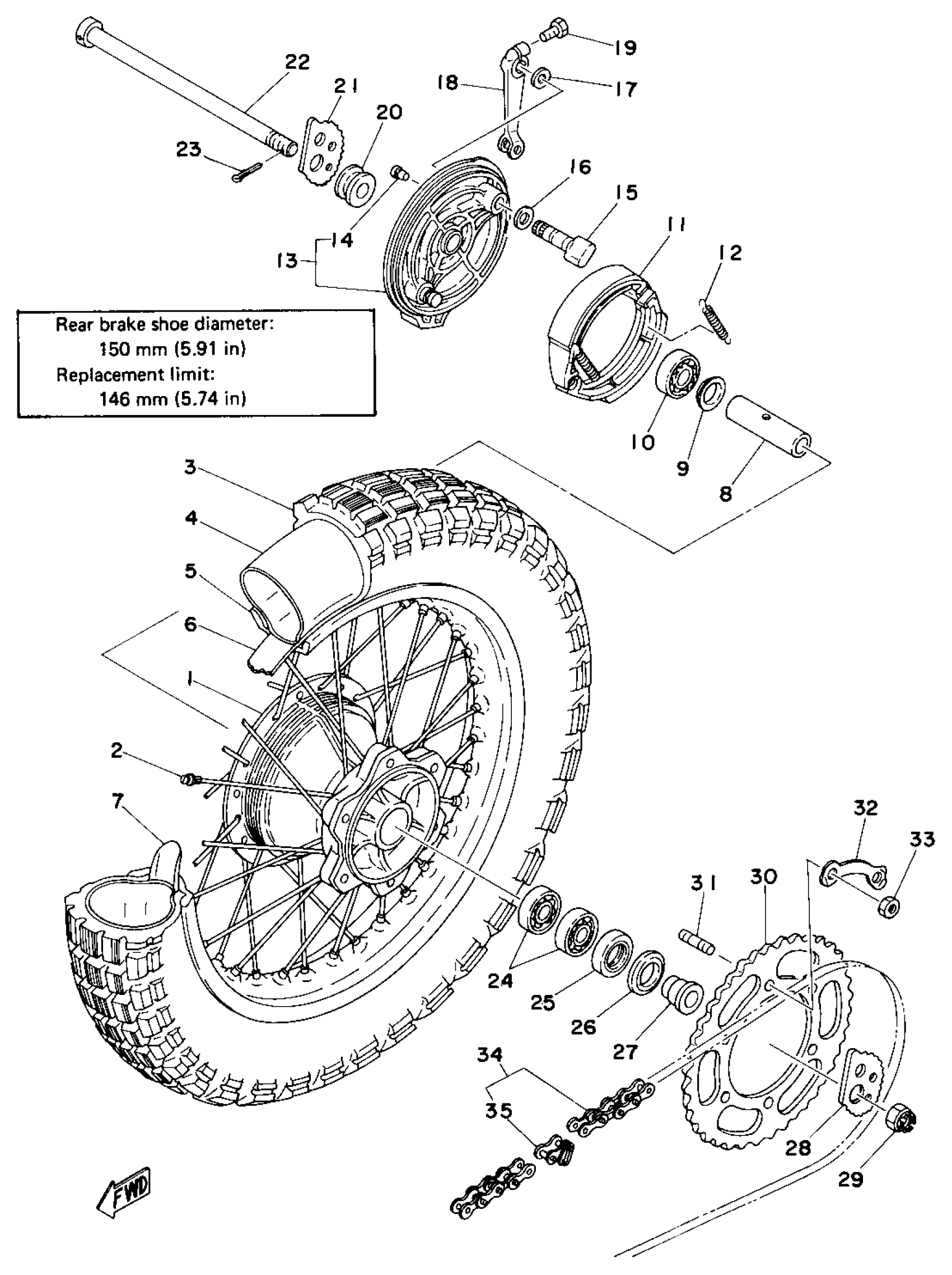

Yamaha DT400D (DT400D) 1977 REAR WHEEL (DT250D) Diagram

#

Description
Price

1

HUB, REAR

(1M1-25311-00-98)

Unavailable

2

SPOKE SET, REAR

1M1-25304-00-00

Unavailable

3

400X18 DUN TRI UNI

(94140-18317-00)

Unavailable

4

TUBE (5A8)

94212-18188-00

$35.99

5

RIM 1.85X18

(94418-18192-00)

Unavailable

6

BAND, RIM (2J4)

94340-18086-00

$17.99

7

SPACER, BEAD

1T2-25394-00-00

Unavailable

8

SPACER

90560-17233-00

Unavailable

9

FLANGE, SPACER

483-25315-00-00

Unavailable

10

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

11

BRAKE SHOE KIT

3GW-W253A-00-00

$42.99

12

SPRING, TENSION 2462533300

90507-20002-00

$8.49

13

BRAKE SHOE PLATE ASSEMBLY

(1M1-25026-10-98)

Unavailable

14

GROMMET (397)

90480-10068-00

$8.49

15

CAMSHAFT

214-25351-01-00

Unavailable

16

SHIM, CAM SHAFT

148-25353-00-00

Unavailable

17

SEAL, CAM SHAFT

148-25359-00-00

Unavailable

18

. LEVER, CAMSHAFT (168-25355-00)

4V5-25355-00-00

Unavailable

19

BOLT, HEXAGON

97017-06025-00

Unavailable

20

COLLAR(3SX)

90387-170X9-00

Unavailable

21

PULLER, CHAIN 2

1M1-25389-01-00

Unavailable

22

AXLE,WHEEL

150-25381-01-00

Unavailable

23

PIN, COTTER

91490-30030-00

Unavailable

24

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

25

OIL SEAL, DD-TYPE (DD-25-40-9)

93106-25003-00

Unavailable

26

COVER, HUB DUST

431-25367-00-00

Unavailable

27

COLLAR

90387-17555-00

Unavailable

28

PULLER, CHAIN 1

1M1-25388-01-00

Unavailable

29

NUT, CASTLE

90171-16007-00

Unavailable

30

SPROCKET, DRIVEN 47T

1M1-25447-10-00

Unavailable

30

SPROCKET, DRIVEN 47T

1M1-25447-10-00

Unavailable

31

BOLT, STUD

90116-10234-00

Unavailable

32

WASHER

1M1-25412-00-00

Unavailable

33

NUT (3WP1)

95317-10700-00

Unavailable

34

CHAIN 520DS-104L

9Y585-20103-00

Unavailable

35

JOINT, CHAIN

94681-68001-00

Unavailable
