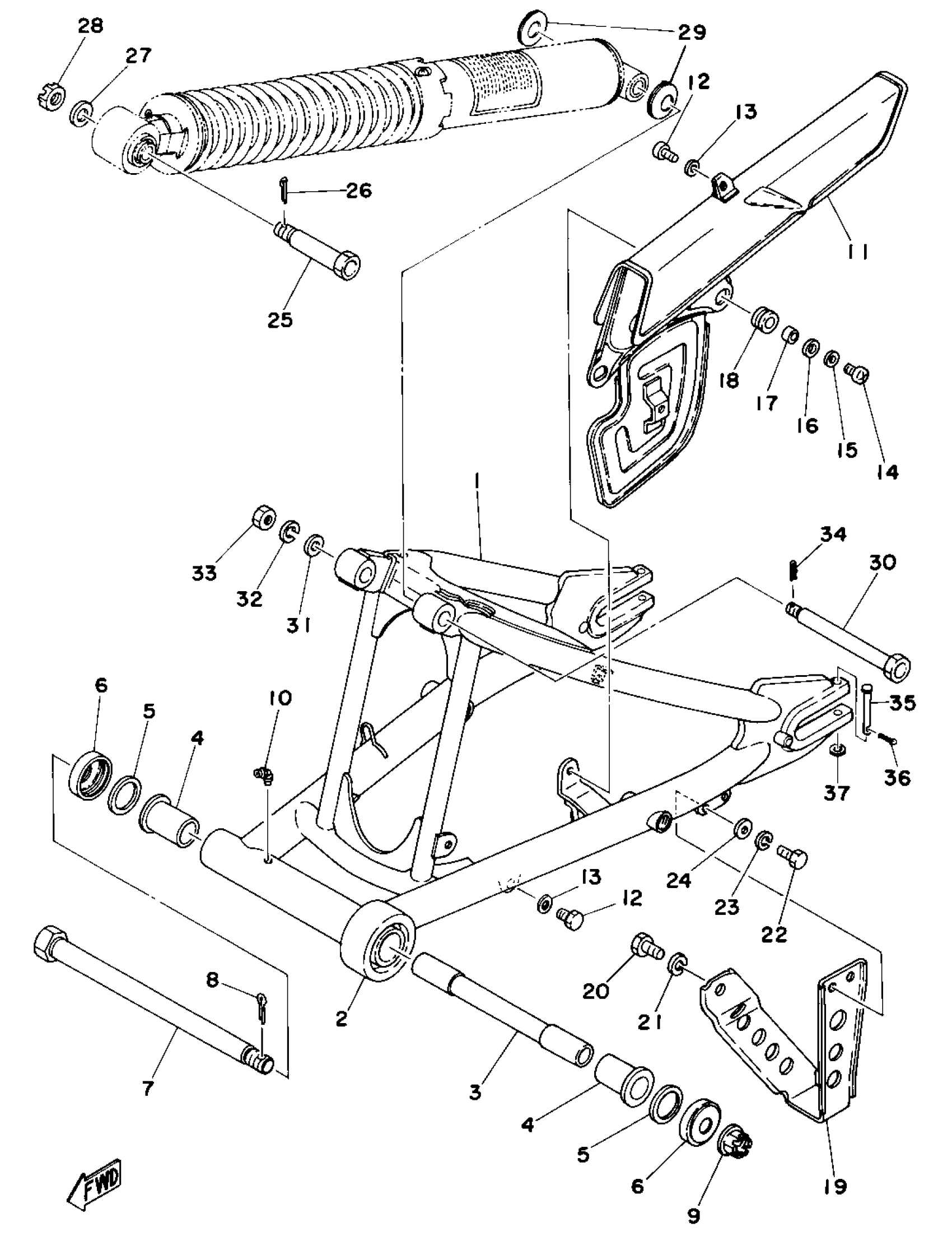

Yamaha DT400D (DT400D) 1977 REAR ARM - CHAIN CASE Diagram

#

Description
Price

1

REAR ARM

(2N6-22110-00-33)

Unavailable

2

SEAL, GUARD

1M1-22151-00-00

Unavailable

3

COLLAR (322-22124-00)

90387-16398-00

Unavailable

4

BUSH

3Y1-22184-01-00

$38.99

5

SHIM,REAR ARM

240-22127-00-00

$6.99

6

COVER, THRUST

322-22128-01-00

$35.99

7

SHAFT, PIVOT

1M1-22141-00-00

Unavailable

8

PIN, COTTER

91490-30030-00

$8.49

9

NUT, CASTLE (4V7)

90171-14031-00

Unavailable

10

NIPPLE, GREASE

93700-06M03-00

Unavailable

11

CASE, CHAIN

(1M1-22311-01-33)

Unavailable

12

BOLT, HEXAGON

97013-05010-00

$0.59

13

WASHER, PLAIN (646)

92990-05600-00

$0.80

14

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

15

WASHER, PLAIN (646)

92990-05600-00

$0.80

16

WASHER PLATE 256216150000

90201-06062-00

Unavailable

17

SPACER

90560-05001-00

Unavailable

18

GROMMET (141-82596-00)

90480-12096-00

Unavailable

19

GUARD, CHAIN

1M1-22318-00-00

Unavailable

20

BOLT, HEXAGON

97017-08016-00

Unavailable

21

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

22

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

WASHER, PLAIN (646)

92990-06600-00

Unavailable

25

BOLT (1M1)

90109-10453-00

Unavailable

26

PIN, COTTER

91490-20025-00

Unavailable

27

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

28

NUT, CASTLE

95307-10900-00

Unavailable

29

COVER, THRUST 1

483-22128-00-00

Unavailable

30

BOLT

90109-08452-00

Unavailable

31

WASHER, PLAIN

92990-08200-00

Unavailable

32

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

33

. NUT

95380-08700-00

Unavailable

34

CLIP (156-83525-00)

90468-10050-00

Unavailable

35

PIN, CLEVIS (1M1)

91701-06042-00

Unavailable

36

PIN, COTTER

91490-20025-00

Unavailable

37

WASHER, PLAIN (646)

92990-06600-00

Unavailable
