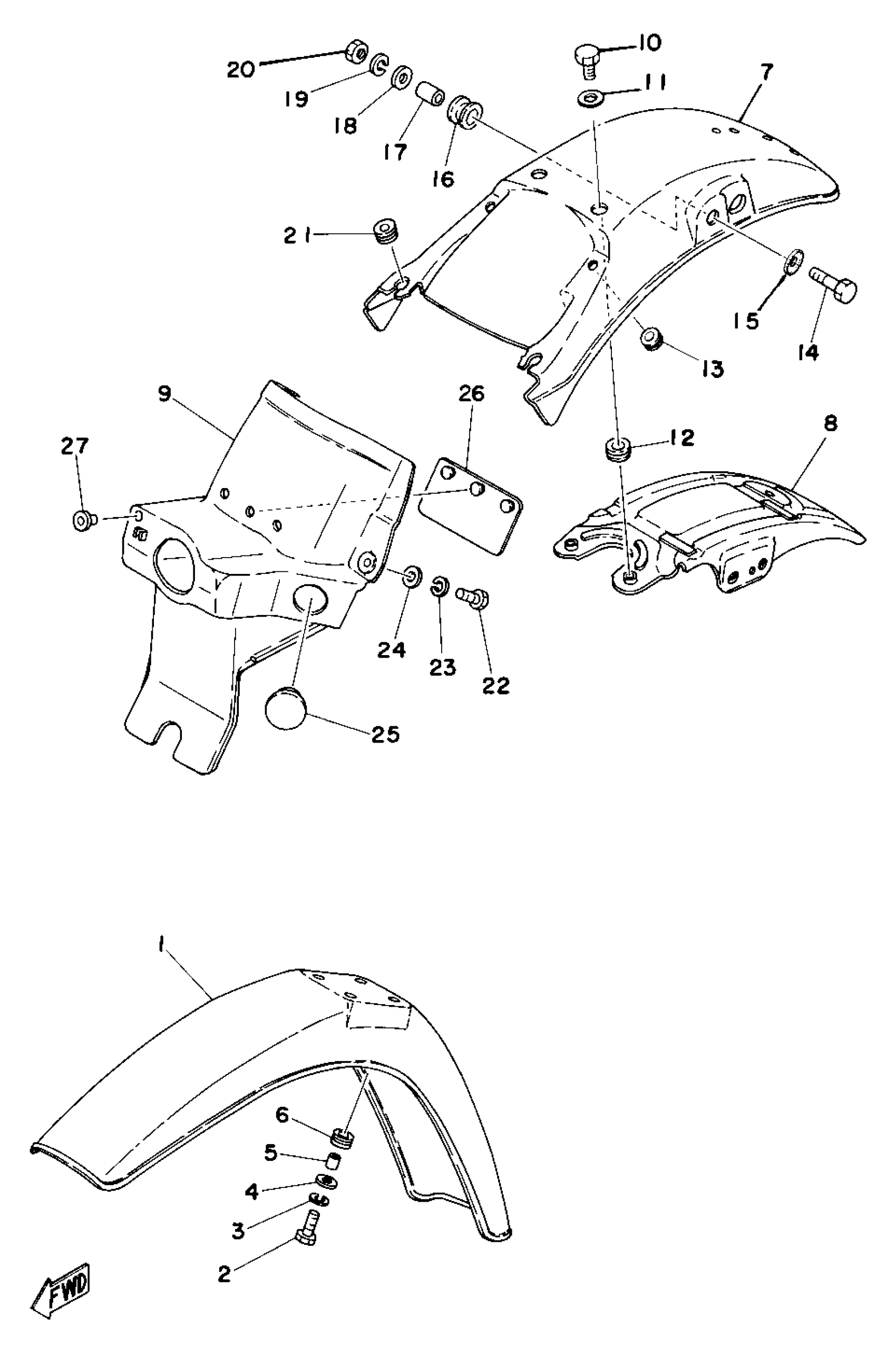

Yamaha DT400D (DT400D) 1977 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

(1M2-21511-00-U4)

Unavailable

1

FENDER, FRONT

453-21511-01-00

Unavailable

2

BOLT, HEXAGON

97017-06025-00

$4.24

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLATE

90201-06380-00

$0.60

5

COLLAR

90387-06158-00

$8.49

6

GROMMET

90480-14198-00

$9.49

7

NO LONGER AVAILABLE

1M1-21611-00-G6

Unavailable

7

FENDER, REAR

(1M2-21611-00-U4)

Unavailable

8

BRACKET, FENDER

1R7-21617-00-00

Unavailable

9

GUARD, MUD

(1M1-21620-00-00)

Unavailable

9

GUARD, MUD

(1M2-21620-00-00)

Unavailable

10

BOLT, HEXAGON

97017-06020-00

$4.06

11

WASHER, PLATE

90201-06380-00

$0.60

12

GROMMET (1E6)

90480-15058-00

$8.49

13

GROMMET

90480-10208-00

Unavailable

14

BOLT, HEXAGON

97013-08030-00

Unavailable

15

WASHER, SPECIAL SHAP

90209-09155-00

Unavailable

16

DAMPER

565-14747-00-00

Unavailable

17

COLLAR (437)

90387-08258-00

Unavailable

18

WASHER, PLAIN

92990-08200-00

Unavailable

19

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

20

NUT(6L2)

95333-08600-00

Unavailable

21

DAMPER, SIDE COVER (437)

90480-12053-00

Unavailable

22

BOLT(8CP)

97017-06014-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

WASHER, PLATE

90201-06380-00

$0.60

25

GROMMET

(90480-30202-00)

Unavailable

26

FLAP

1M1-21621-00-00

Unavailable

27

DAMPER 1

(395-21638-00-00)

Unavailable
