FRAME - SIDE COVER

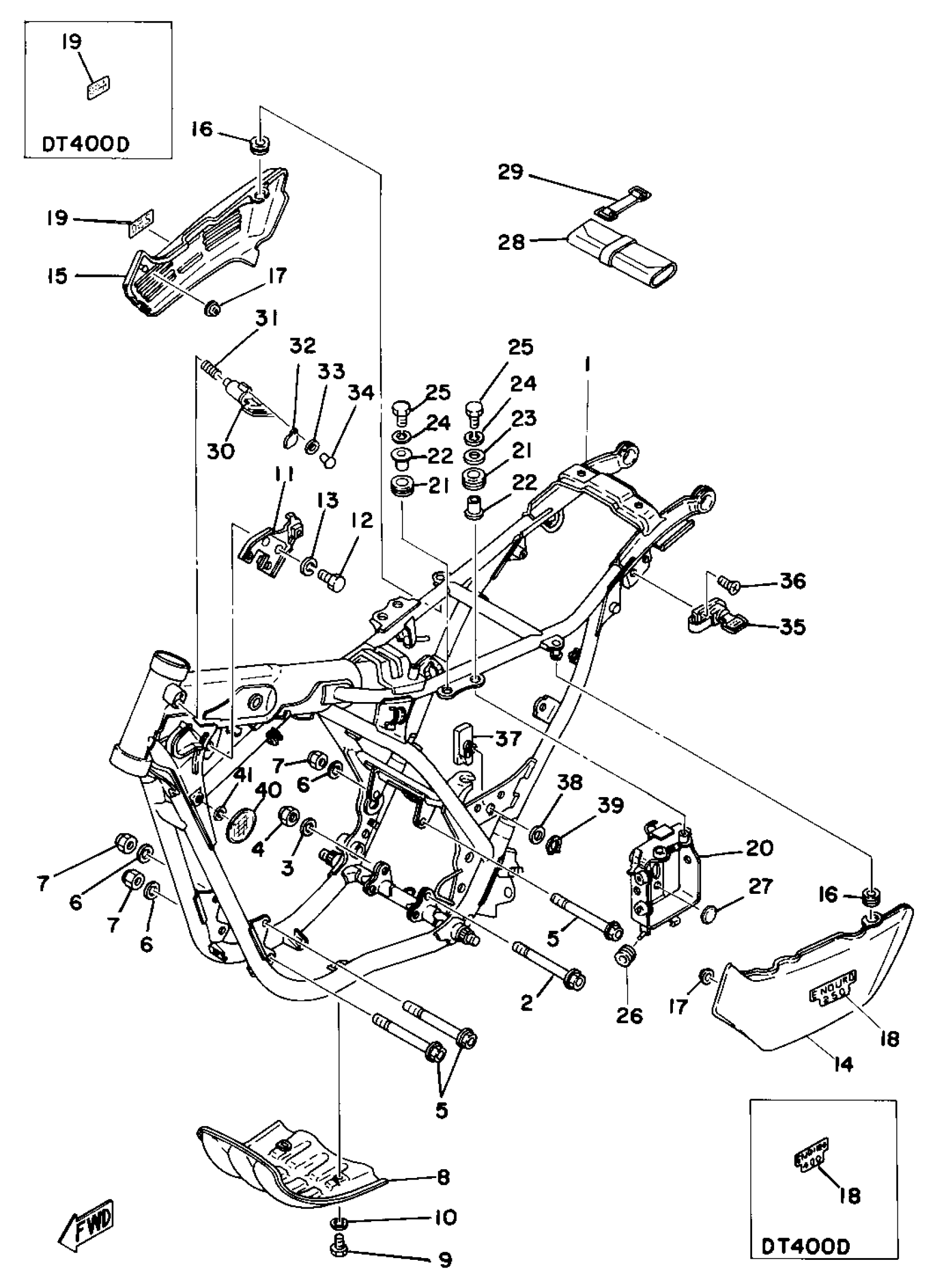

Yamaha DT400D (DT400D) 1977 FRAME - SIDE COVER Diagram
#
1
FRAME
(1M1-21110-01-33)
Unavailable
6
WASHER, PLAIN
92990-08200-00
Unavailable
8
PROTECTOR, ENGINE
1M1-21471-00-90
Unavailable
10
WASHER, SPRING
92995-06100-00
Unavailable
11
PROTECTOR, ENGINE
1M1-21471-00-90
Unavailable
13
WASHER, SPRING
92995-06100-00
Unavailable
14
SIDE COVER ASSEMBLY 1
1M1-21710-00-G6
Unavailable
14
COVER, SIDE 2
(1M1-21721-00-G6)
Unavailable
14
SIDE COVER ASSEMBLY 1
(1M2-21710-00-U4)
Unavailable
14
COVER, SIDE 2
1M2-21721-00-U4
Unavailable
16
DAMPER, SIDE COVER (437)
90480-12053-00
Unavailable
17
GROMMET
90480-13014-00
Unavailable
18
EMBLEM 7
(1M1-21787-00-00)
Unavailable
18
EMBLEM 7
(1M2-21787-00-00)
Unavailable
19
EMBLEM 6
(1M1-21786-00-00)
Unavailable
19
EMBLEM 6
(1M2-21786-00-00)
Unavailable
20
BOX, BATT.
(1M1-21240-00-00)
Unavailable
21
GROMMET 839774310000
90480-14023-00
Unavailable
22
COLLAR 437216330000
90387-07391-00
Unavailable
23
WASHER PLATE 256216150000
90201-06062-00
Unavailable
24
WASHER, SPRING
92995-06100-00
Unavailable
25
BOLT, HEXAGON
97017-06025-00
Unavailable
26
GROMMET (583 SIDE COVER)
90480-01176-00
Unavailable
27
PAD, BATTERY
371-82121-00-00
Unavailable
28
TOOL KIT
2A6-W2810-00-00
Unavailable
29
BAND, TOOL
21V-21376-00-00
Unavailable
30
STEERING LOCK ASSY
2A6-23408-00-00
Unavailable
31
SPRING, CONICAL (1E6)
90502-09024-00
Unavailable
32
CAP, HANDLE LOCK
3DM-23484-00-00
Unavailable
33
WASHER, WAVE
90206-04003-00
Unavailable
34
RIVET 214234830000
90269-04003-00
Unavailable
35
HELMET HANGER ASSY
5H0-21308-01-00
Unavailable
36
SCREW, OVAL HEAD
98603-06018-00
Unavailable
37
PORTECTOR, CHAIN
583-22147-01-00
Unavailable
38
WASHER, WAVE (583 CHAIN PROTEC
90206-15023-00
Unavailable
39
CIRCLIP(1AR)
99009-15400-00
Unavailable
40
REFLECTOR, FRONT 1
355-85111-01-00
Unavailable
41
WASHER, PLATE(3AJ)
90202-05191-00
Unavailable
