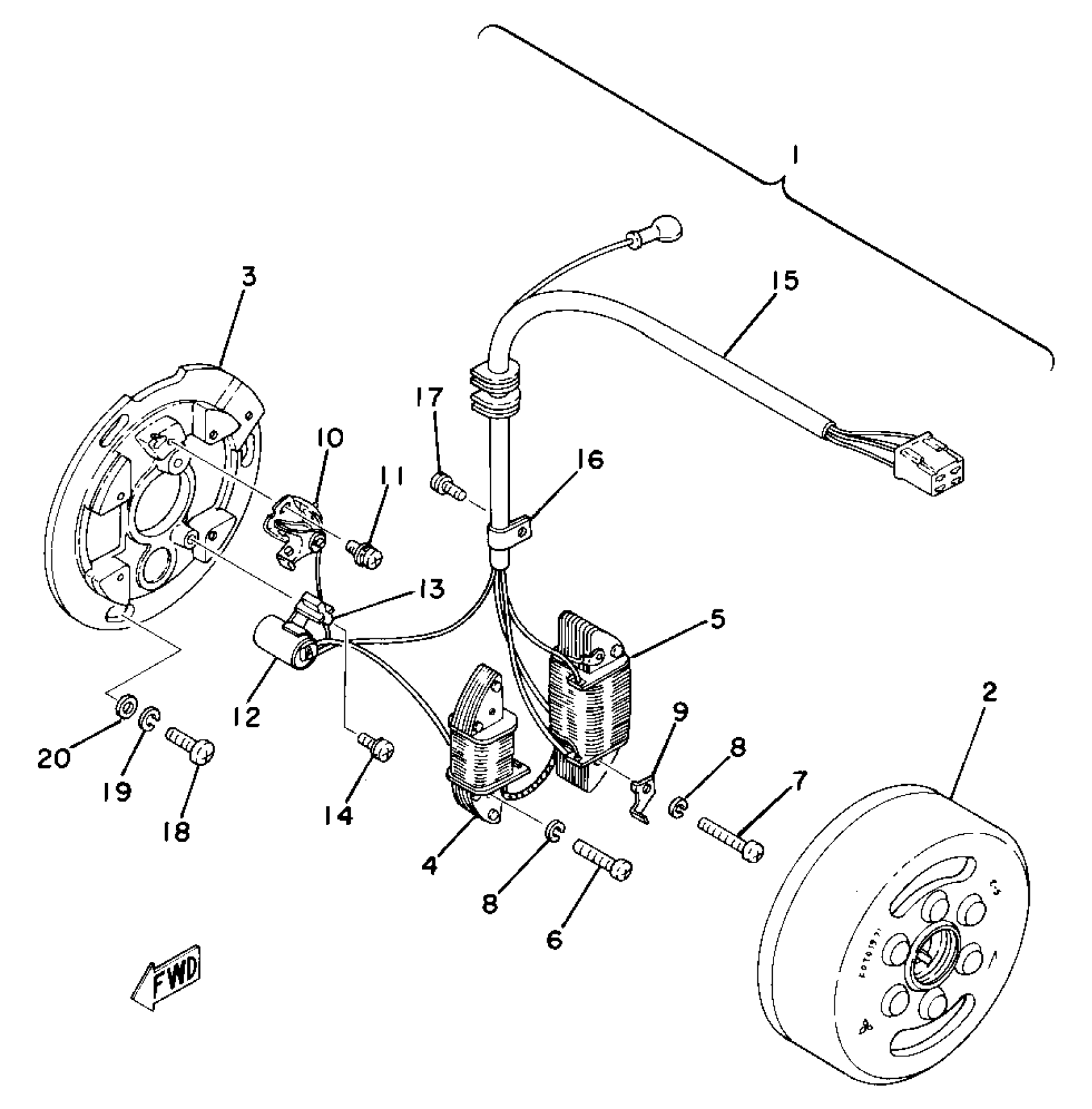

Yamaha DT400D (DT400D) 1977 FLYWHEEL MAGNETO (DT250D) Diagram

#

Description
Price

1

FLYWHEEL MAGNETO ASSEMBLY

(1M1-81300-22-00)

Unavailable

2

. ROTOR ASSEMBLY

1M1-81350-20-00

Unavailable

3

BASE, MAGNETO

(438-81309-20-00)

Unavailable

4

. COIL, SOURCE

498-81312-22-00

Unavailable

5

. COIL, LIGHTING 1

1M1-81313-21-00

Unavailable

6

SCREW, PANHEAD (A93)

98580-05525-00

$2.00

7

SCREW, PAN

98507-05035-00

$8.49

8

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

9

PLATE, TIMING

(438-81332-20-00)

Unavailable

10

CONTACT BREAKER ASSY

1M1-81321-20-00

$114.99

11

SCREW, PAN HEAD

110-81346-21-00

$5.49

12

CONDENSER

654-81325-20-00

$44.99

13

. LUBRICATOR

116-81331-20-00

Unavailable

14

SCREW, PAN HEAD

110-81346-21-00

$5.49

15

LEAD WIRE ASSEMBLY

(1M1-81315-21-00)

Unavailable

16

CLAMP, LEAD

104-81328-20-00

Unavailable

17

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

18

SCREW PAN HEAD

98580-06020-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

Unavailable
