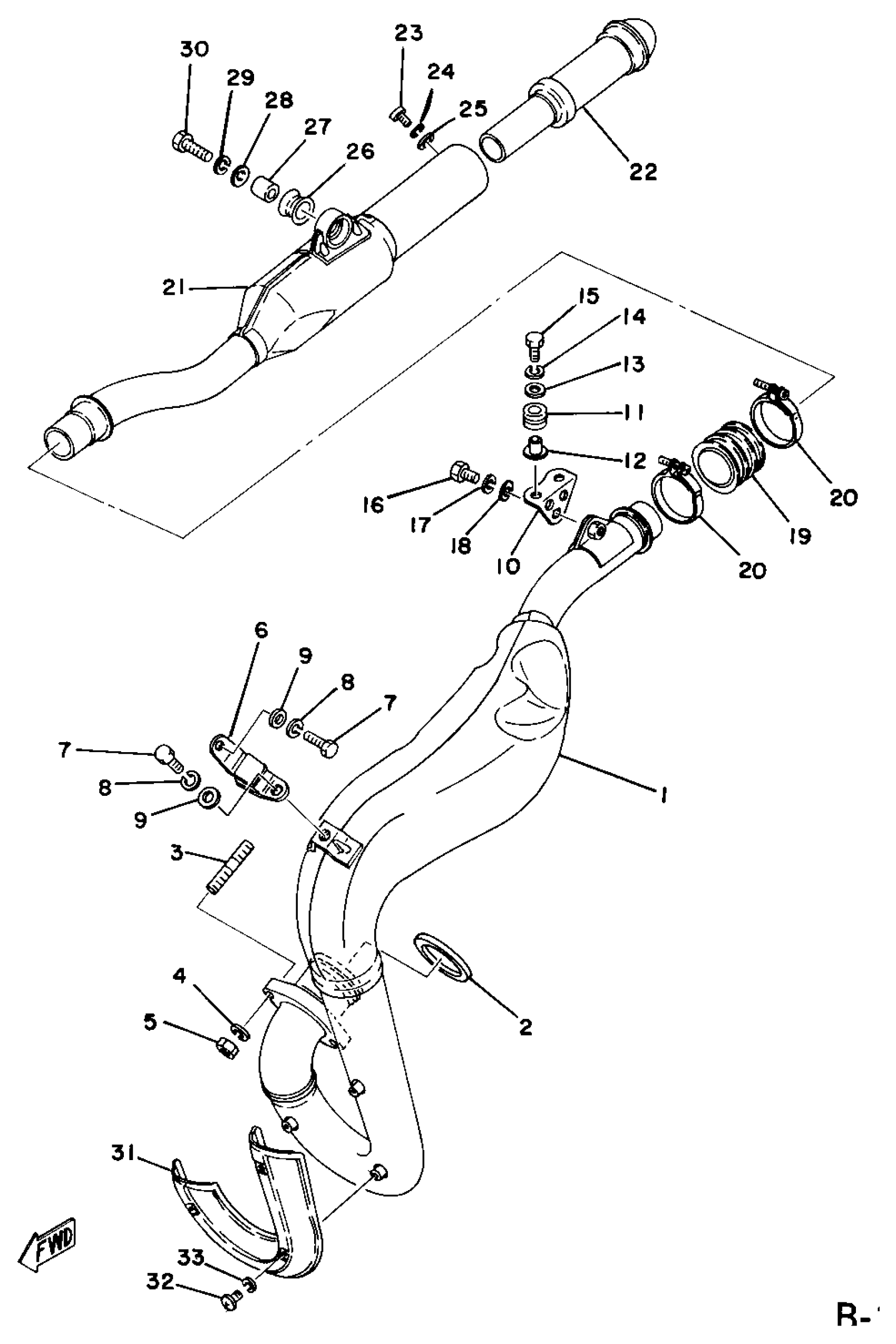

Yamaha DT400D (DT400D) 1977 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

(1M2-14610-03-00)

Unavailable

1

EXHAUST PIPE ASSEMBLY L

1N6-14610-00-00

Unavailable

2

GASKET, EXHAUST PIPE

214-14613-09-00

$14.81

3

BOLT STUD 811135580000

90116-08042-00

$6.87

4

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

5

NUT(6L2)

95333-08600-00

$2.98

6

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

8

WASHER, SPRING

92995-06100-00

$2.95

9

WASHER, PLAIN (646)

92990-06600-00

$1.84

10

STAY, MUFFLER 1

1M1-14771-01-00

Unavailable

11

GROMMET 839774310000

90480-14023-00

$4.34

12

COLLAR

90387-06158-00

$5.75

13

WASHER, PLAIN (646)

92990-06600-00

$1.84

14

WASHER, SPRING

92995-06100-00

$2.95

15

BOLT, HEXAGON

97017-06025-00

Unavailable

16

BOLT(JA9)

90101-08691-00

Unavailable

17

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

18

.. WASHER, PLATE

92990-08600-00

$2.17

19

GASKET, MUFFLER JOINT

1M1-14714-00-00

Unavailable

20

CLAMP, HOSE (5H0)

90460-43179-00

Unavailable

21

SILENCER, EXHAUST

1M1-14753-00-00

Unavailable

22

PIPE, OUTLET

1M1-14752-01-00

Unavailable

23

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

24

WASHER, SPRING

92995-06100-00

$2.95

25

WASHER, PLAIN (646)

92990-06600-00

$1.84

26

DAMPER

565-14747-00-00

Unavailable

27

COLLAR (437)

90387-08258-00

Unavailable

28

WASHER, PLATE(8AT)

90201-081R9-00

Unavailable

29

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

30

BOLT, HEXAGON

97013-08030-00

Unavailable

31

PROTECTER, MUFFLER 2

1M1-14728-00-00

Unavailable

32

SCREW, BINDING

98907-06010-00

Unavailable

33

WASHER, SPRING

92907-06100-00

Unavailable
