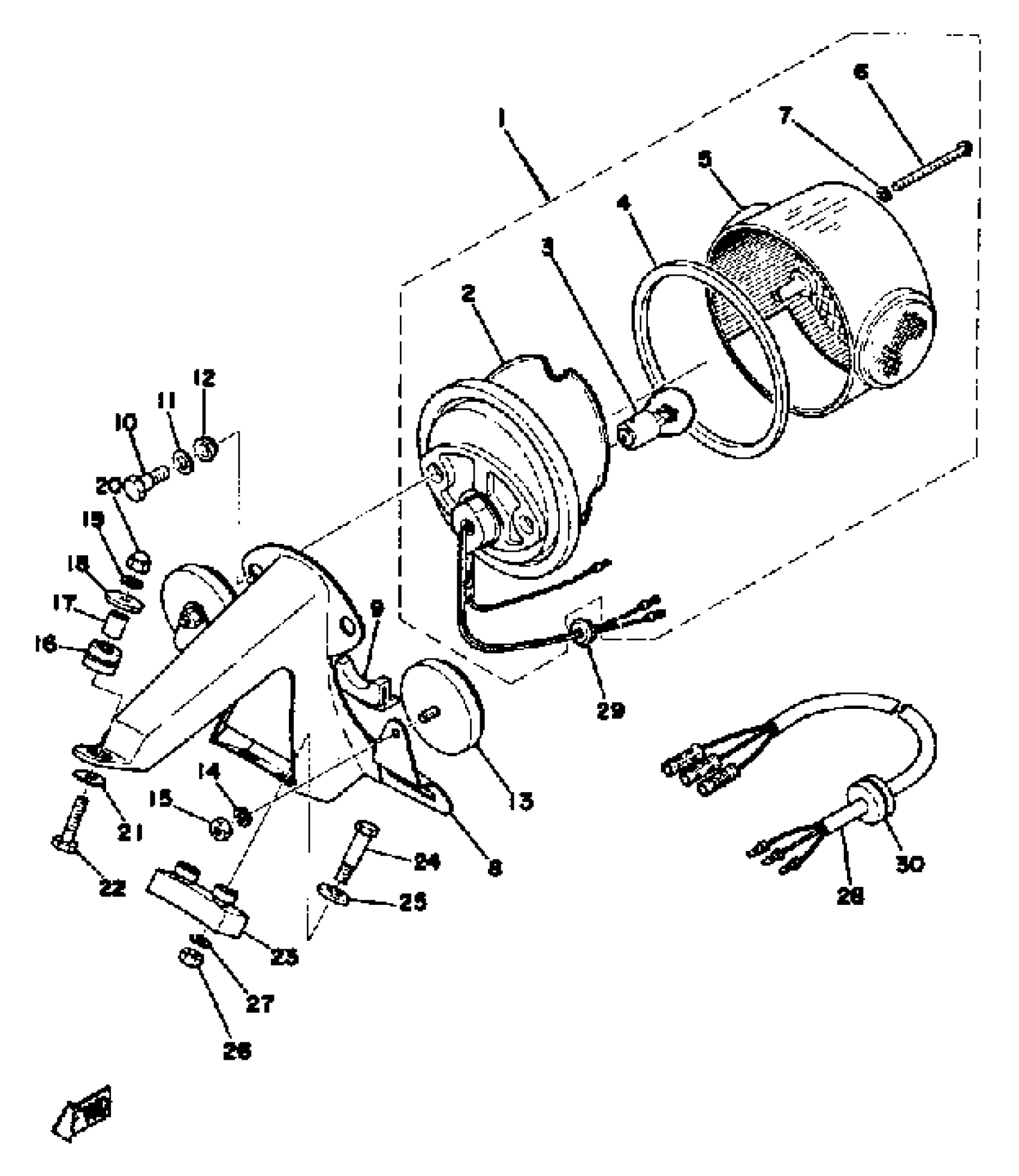

Yamaha DT400B (DT400B) 1975 TAILLIGHT 250B - C - 400B - C Diagram

#

Description
Price

1

TAIL LIGHT UNIT ASSEMBLY

437-84510-62-00

Unavailable

2

BASE, TAILLIGHT

(444-84711-61-00)

Unavailable

3

. BULB

1M1-84514-60-00

Unavailable

4

. GASKET, LENS

275-84523-60-00

Unavailable

5

. LENS, TAIL LIGHT

341-84721-60-00

Unavailable

6

SCREW, PANHEAD (4G7)

98580-04055-00

Unavailable

7

. WASHER

341-84722-60-00

Unavailable

8

BRACKET, LICENCE

(437-84551-61-20)

Unavailable

9

DAMPER

(437-84527-60-00)

Unavailable

10

SCREW

(479-84526-00-00)

Unavailable

11

WASHER, SPECIAL

2H7-84754-00-00

$10.99

12

. DAMPER

275-84527-60-00

Unavailable

13

REFLECTOR, REAR 1

449-85131-02-00

$30.99

14

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

15

NUT, HEXAGON (663)

95380-05600-00

$8.49

16

GROMMET 839774310000

90480-14023-00

Unavailable

17

COLLAR

90387-07020-00

Unavailable

18

WASHER

90209-06012-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

NUT (J17)

95380-06800-00

Unavailable

21

WASHER, PLATE

90201-06380-00

Unavailable

22

BOLT, HEXAGON

97017-06025-00

Unavailable

23

DAMPER

308-84553-00-00

Unavailable

24

BOLT 338845520000

90109-06022-00

Unavailable

25

WASHER, SPECIAL (498)

90209-08125-00

Unavailable

26

NUT, HEXAGON

95380-06600-00

Unavailable

27

WASHER, SPRING

92995-06100-00

Unavailable

28

CORD, TAIL LIGHT

438-84517-00-00

Unavailable

29

GROMMET 152845180000

90480-12013-00

Unavailable

30

GROMMET (438)

90480-15061-00

Unavailable
