Description

Price

1

SEAL, DUST

164-23462-00-00

$7.99

2

RACE, BALL 1

B6E-23411-00-00

$8.49

3

BALL

93501-04011-00

$8.49

4

RACE, BALL 2

B6E-23412-00-00

$13.49

5

RACE, BALL 2

BP2-23412-00-00

$7.49

6

BALL

93503-16003-00

$2.72

7

RACE, BALL 1

BP2-23411-00-00

$11.49

8

COVER, BALL RACE

122-23416-00-00

$7.99

9

NUT

90179-25004-00

$24.99

10

CROWN, HANDLE

(321-23435-01-98)

Unavailable

11

WASHER, SPECIAL SHAPE

90209-14022-00

Unavailable

12

BOLT, WASHER BASED HEAD (10V)

90105-14220-00

$4.72

12

BOLT (322-23451-00)

90109-14235-00

Unavailable

13

BOLT, HEXAGON

97013-08055-00

$2.55

14

WASHER, PLATE 1562722600

90201-08083-00

$9.49

15

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

16

NUT, CROWN

95303-08800-00

Unavailable

17

HOLDER, HANDLE UPPER

401-23441-00-98

Unavailable

18

BOLT

97013-08035-00

Unavailable

19

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

20

CLIP

90468-20055-00

Unavailable

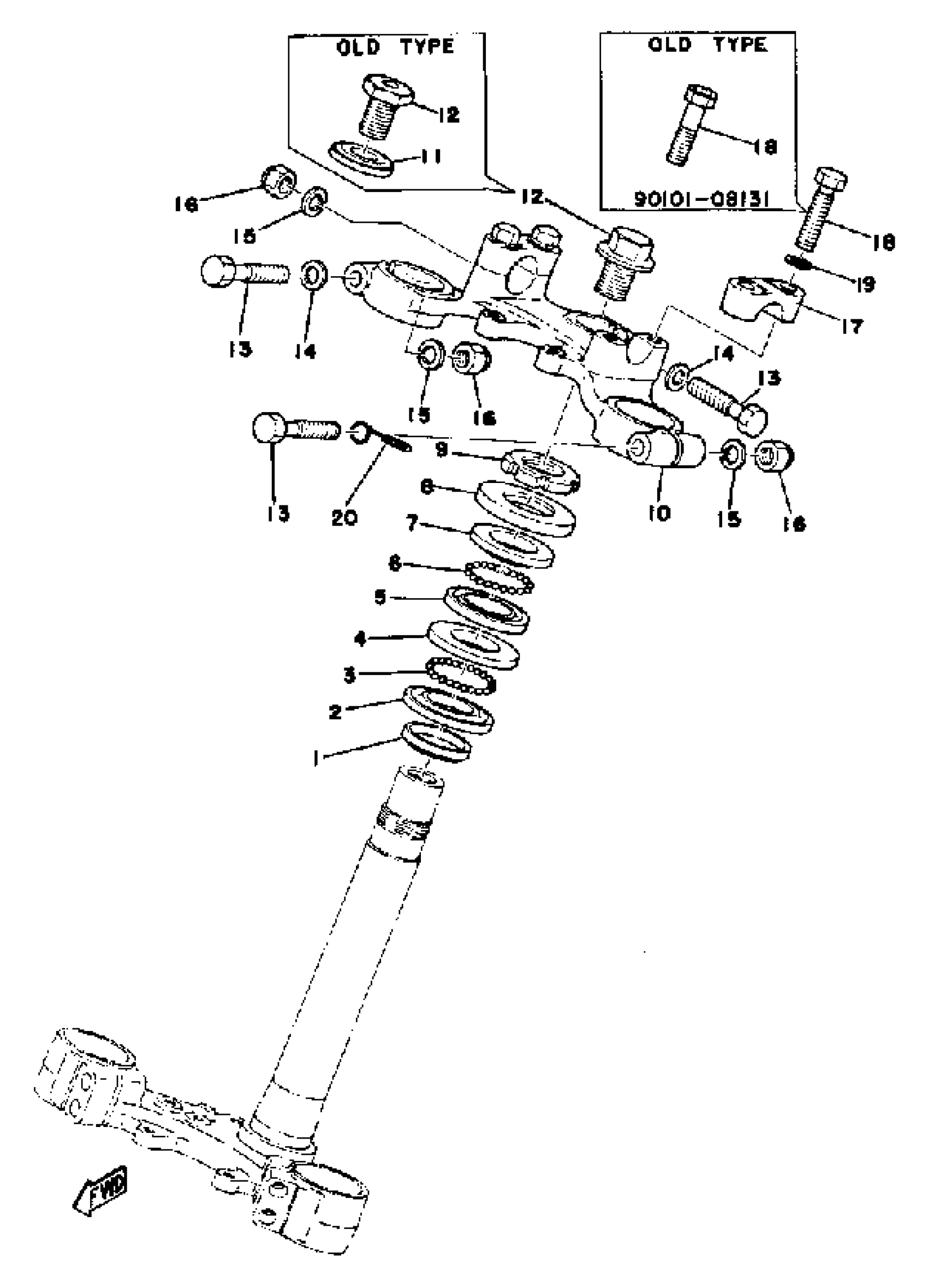

Yamaha DT400B (DT400B) 1975 STEERING 250B - C - 400B - C Diagram

SEAL, DUST

RACE, BALL 1

BALL

RACE, BALL 2

RACE, BALL 2

BALL

RACE, BALL 1

COVER, BALL RACE

NUT

CROWN, HANDLE

WASHER, SPECIAL SHAPE

BOLT, WASHER BASED HEAD (10V)

BOLT (322-23451-00)

BOLT, HEXAGON

WASHER, PLATE 1562722600

YBS67-8 WASHER, SPRING

NUT, CROWN

HOLDER, HANDLE UPPER

BOLT

YBS67-8 WASHER, SPRING

CLIP
