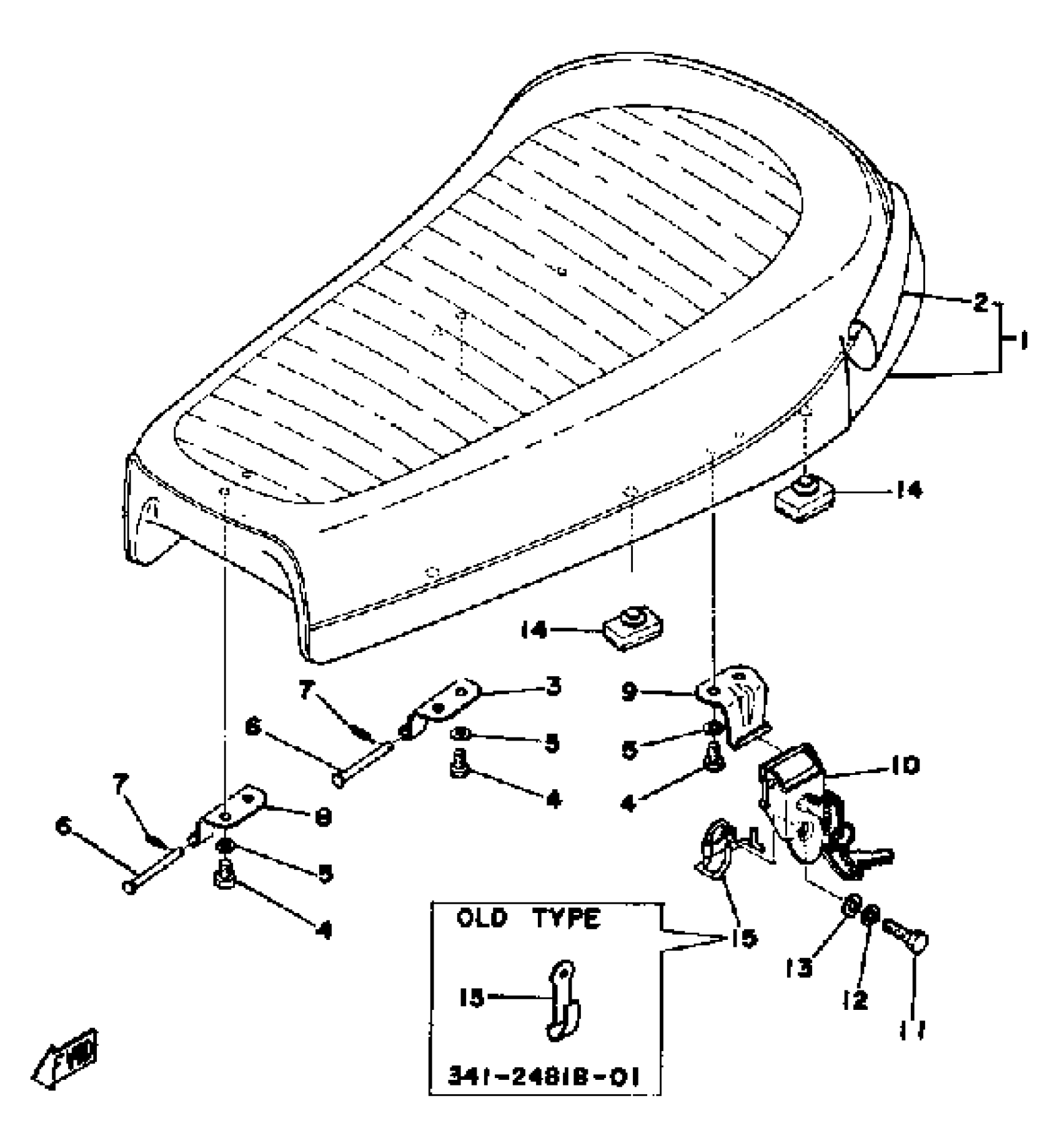

Yamaha DT400B (DT400B) 1975 SEAT 250B - C - 400B - C Diagram

#

Description
Price

1

SINGLE SEAT ASSEMBLY

(498-24710-01-00)

Unavailable

2

COVER,SINGLE SEAT

498-24711-01-00

Unavailable

3

HINGE, SEAT

(437-24726-00-00)

Unavailable

4

BOLT (661)

97013-06012-00

$4.40

5

WASHER, SPRING

92995-06100-00

$2.95

6

PIN, CLEVIS

91701-05055-00

$5.70

7

CLIP (156-83525-00)

90468-10050-00

$2.16

8

HINGE, SEAT

248-24726-00-33

Unavailable

9

BRACKET, SEAT

(214-24728-00-33)

Unavailable

10

SEAT LEVER ASSY

1K8-24705-00-00

Unavailable

11

BOLT, HEXAGON

97017-06025-00

$2.78

12

WASHER, SPRING

92995-06100-00

$2.95

13

WASHER, PLAIN (646)

92990-06600-00

$1.84

14

DAMPER, SEAT

214-24724-00-00

$6.29

15

HOOK, HELMET

341-24818-02-00

Unavailable
