REAR WHEEL 250B - C - 400B - C

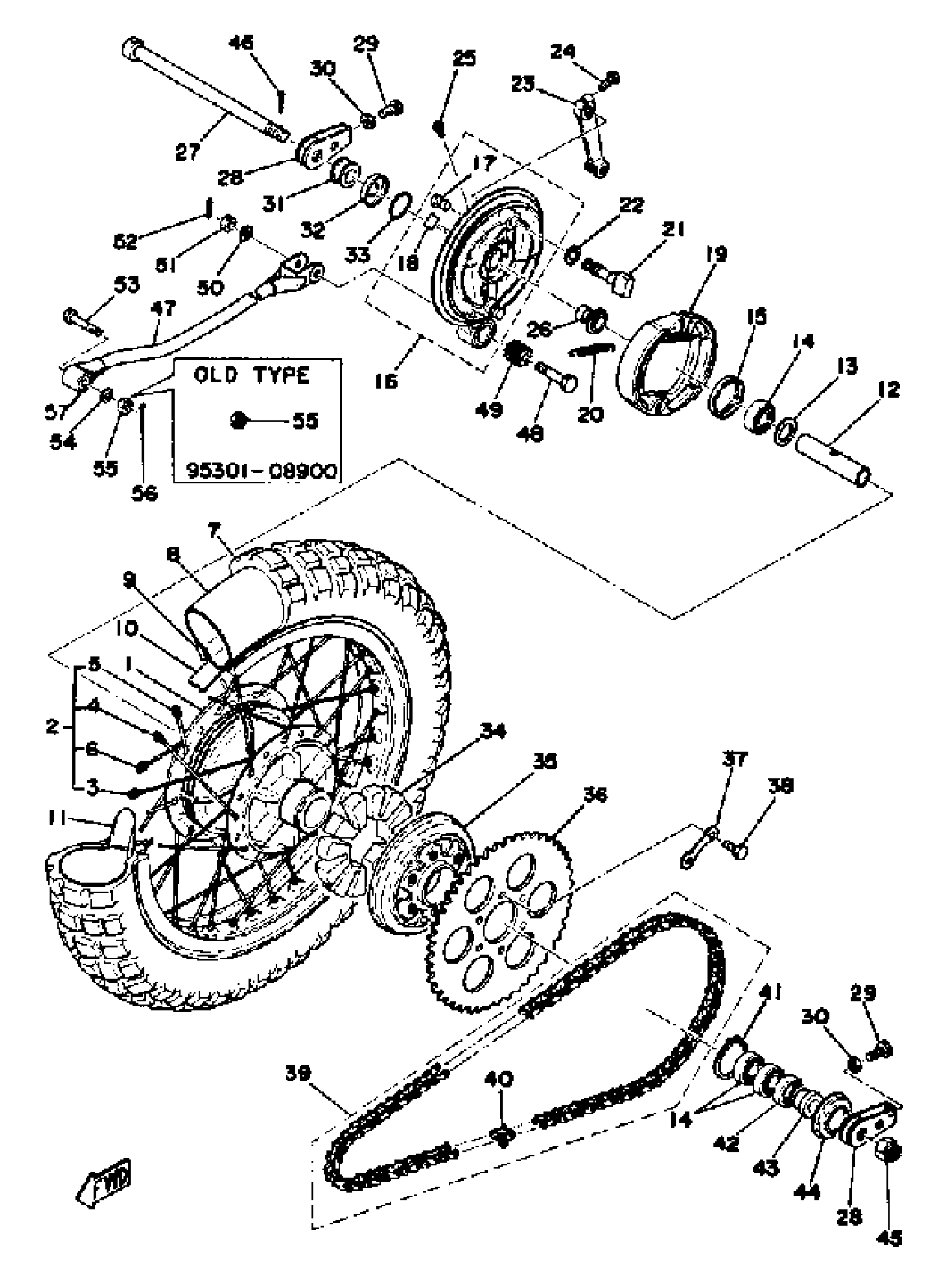

Yamaha DT400B (DT400B) 1975 REAR WHEEL 250B - C - 400B - C Diagram
#
1
HUB, REAR
(438-25311-00-00)
Unavailable
2
SPOKE SET, REAR
438-25304-00-00
Unavailable
3
SPOKE SET, INNER 2
(438-25396-90-00)
Unavailable
4
SPOKE SET, OUTER 2
(438-25397-90-00)
Unavailable
5
SPOKE SET, INNER 1
(438-25391-90-00)
Unavailable
6
SPOKE SET, OUTER 1
(438-25392-90-00)
Unavailable
7
400X18 DUN TRI UNI
(94140-18317-00)
Unavailable
9
RIM 1.85X18 (1.85B-18)
94418-18051-00
Unavailable
11
SPACER, BEAD
1T2-25394-00-00
Unavailable
12
SPACER
90560-17311-00
Unavailable
15
OIL SEAL, SO-TYPE
(93104-46029-00)
Unavailable
16
BRAKE SHOE PLT ASSEMBLY
(438-25320-10-00)
Unavailable
17
GROMMET (397)
90480-10068-00
Unavailable
18
LABEL, INDICATOR
(437-25134-00-00)
Unavailable
19
BRAKE SHOE KIT
3GW-W253A-00-00
Unavailable
20
SPRING, TENSION 2462533300
90507-20002-00
Unavailable
21
CAMSHAFT
214-25351-01-00
Unavailable
22
SHIM, CAM SHAFT
148-25353-00-00
Unavailable
23
. LEVER, CAMSHAFT (168-25355-00)
4V5-25355-00-00
Unavailable
24
BOLT(3DM)
97024-06020-00
Unavailable
25
NIPPLE, GREASE
93700-06M03-00
Unavailable
26
COLLAR
(90387-17450-00)
Unavailable
27
AXLE,WHEEL
150-25381-01-00
Unavailable
28
PULLER,CHAIN 2
12R-25389-00-00
Unavailable
29
BOLT
90101-08060-00
Unavailable
30
. NUT
95380-08700-00
Unavailable
31
COLLAR(3SX)
90387-170X9-00
Unavailable
32
COVER, PLATE
275-25327-00-00
Unavailable
33
O-RING
93210-31MJ5-00
Unavailable
34
DAMPER
275-25364-00-00
Unavailable
35
CLUTCH, HUB
(275-25366-00-00)
Unavailable
36
SPROCKET, DRIVN 39T (39T) (214-25439-10)
214-25439-10-33
Unavailable
36
SPROCKET, DRIVN 40T
(214-25440-10-33)
Unavailable
36
SPROCKET, DRIVN 41T
(214-25441-10-33)
Unavailable
36
SPROCKET, DRIVN 47T
214-25447-10-00
Unavailable
36
SPROCKET, DRIVN 47T
214-25447-10-00
Unavailable
36
SPROCKET, DRIVN 48T
(214-25448-10-33)
Unavailable
37
WASHER, LOCK
22W-25412-00-00
Unavailable
38
BOLT, FITTING
90109-08377-00
Unavailable
39
CHAIN 520DS-104L
9Y585-20103-00
Unavailable
40
JOINT, CHAIN
94681-68001-00
Unavailable
41
CIRCLIP (8L9)
93410-52061-00
Unavailable
42
OIL SEAL, DD-TYPE (DD-25-40-9)
93106-25003-00
Unavailable
43
COLLAR, SHAFT
90387-17140-00
Unavailable
44
COVER, DUST
275-25367-00-00
Unavailable
45
NUT, CASTLE
90171-16007-00
Unavailable
46
PIN, COTTER
91490-30030-00
Unavailable
47
BAR, TENSION
(363-25371-00-00)
Unavailable
48
BOLT, WITH HOLE
(90102-10007-00)
Unavailable
49
BUSH 1
(275-22123-00-00)
Unavailable
50
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
51
NUT (682)
95380-10700-00
Unavailable
52
PIN, COTTER
91490-25020-00
Unavailable
53
BOLT, WITH HOLE
(90102-08019-00)
Unavailable
54
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
55
NUT, SLOTTED
95307-08900-00
Unavailable
55
NUT(6L2)
95333-08600-00
Unavailable
56
PIN, COTTER
91490-20025-00
Unavailable
57
BUSH 1
(363-22123-00-00)
Unavailable
