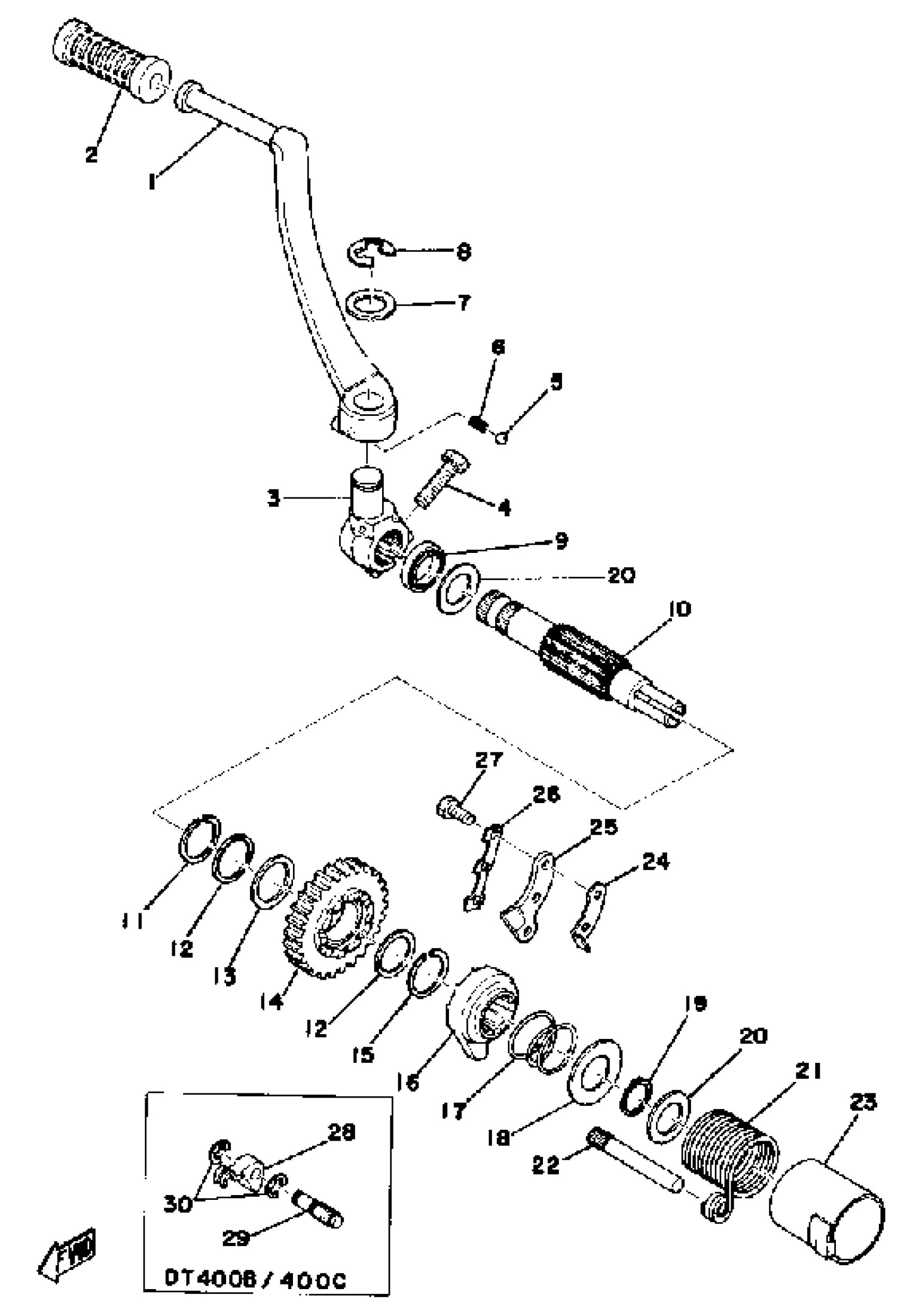

Yamaha DT400B (DT400B) 1975 KICK - STARTER 250B - C - 400B - C Diagram

#

Description
Price

1

CRANK, KICK

498-15611-01-93

Unavailable

2

COVER, KICK LEVER

156-15618-01-00

$7.99

3

BOSS, KICK CRANK

498-15621-00-91

Unavailable

4

BOLT, HEXAGON

97013-08030-00

$2.49

5

BALL (12R)

93507-32031-00

$4.73

6

SPRING COMPRESSION278156220000

90501-12081-00

$8.49

7

WASHER PLATE 278156130000

90201-15234-00

$8.49

8

CIRCLIP

99006-10600-00

$9.49

9

OIL SEAL,SD-TYPE

93102-20309-00

$10.49

10

AXLE, KICK

(498-15661-00-00)

Unavailable

11

1 CIRCLIP, OUTER

93440-25027-00

Unavailable

12

WASHER, PLATE(59W)

90201-253K0-00

$8.49

13

SHIM 1

156-17417-00-01

Unavailable

13

SHIM 1 (25.1-31-0.2)

156-17417-00-02

Unavailable

13

SHIM 1

156-17417-00-03

Unavailable

14

GEAR, KICK

(363-15641-00-00)

Unavailable

15

CIRCLIP (4L0)

93440-25084-00

Unavailable

16

WHEEL, RACHET

583-15671-00-00

Unavailable

17

SPRING COMPRESSION363156750000

90501-23143-00

Unavailable

18

COVER, SPRING

363-15676-00-00

Unavailable

19

CIRCLIP(1EY)

99009-19400-00

Unavailable

20

WASHER PLATE 168171160000

90201-20278-00

Unavailable

21

SPRING, KICK

90508-32060-00

Unavailable

22

STOPPER, KICK SPRING

364-15668-00-00

Unavailable

23

GUIDE, SPRING

(498-15664-00-00)

Unavailable

24

STOPPER

434-15668-00-00

Unavailable

25

GUIDE, RATCHET WHEEL

(363-15674-00-00)

Unavailable

26

WASHER, LOCK

363-15686-00-00

Unavailable

27

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

28

LINK

363-15656-00-00

Unavailable

29

SHAFT

363-15659-00-00

Unavailable

30

CIRCLIP

99080-07600-00

Unavailable

30

CIRCLIP

99080-07600-00

Unavailable
