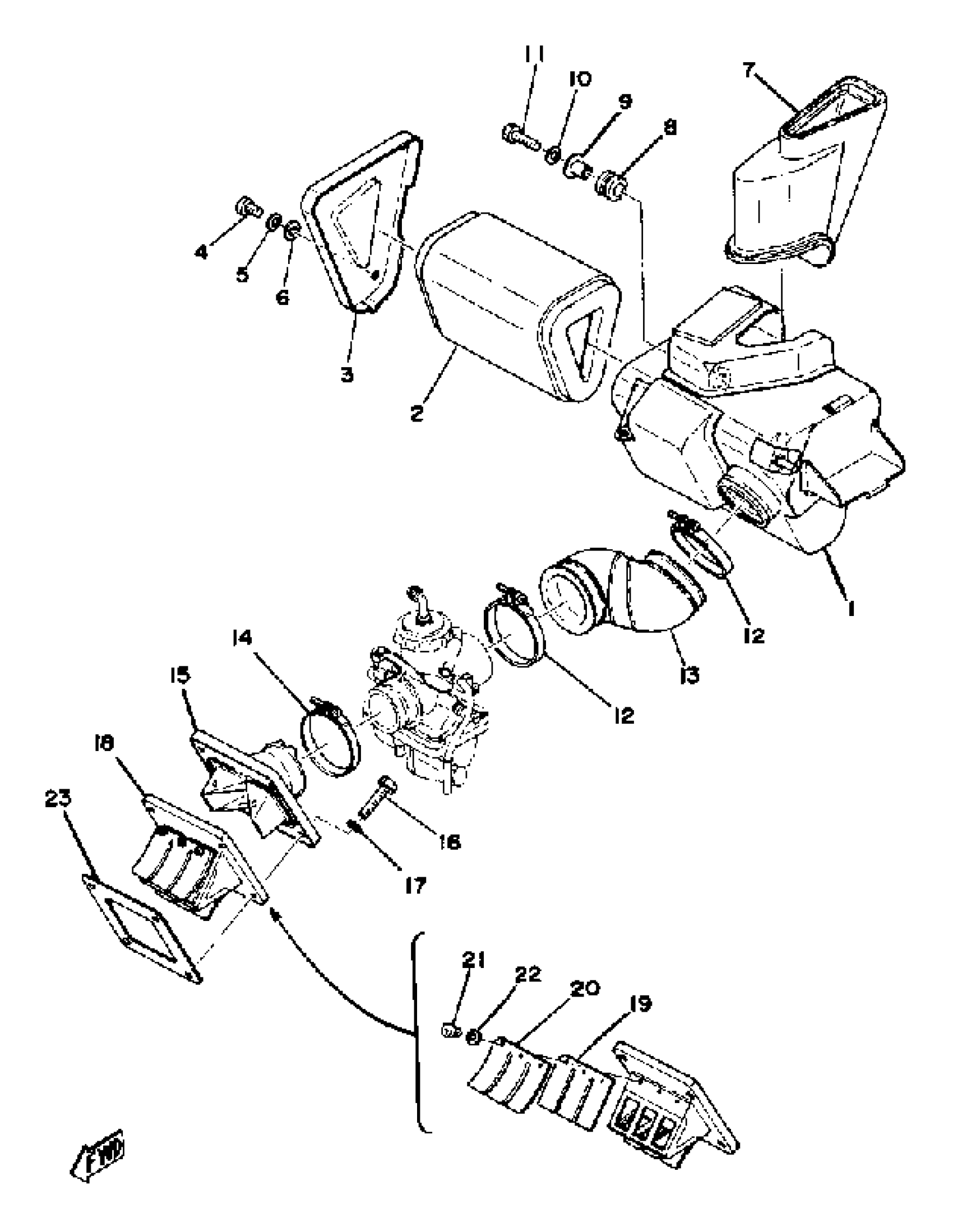

Yamaha DT400B (DT400B) 1975 INTAKE 250B - C - 400B - C Diagram

#

Description
Price

1

CASE, AIR CLEANER 1

(438-14411-01-00)

Unavailable

2

ELEMENT, AIR CLEANER

438-14451-08-00

Unavailable

3

CAP, CLEANER CASE 1

(438-14412-00-00)

Unavailable

4

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

5

WASHER, SPRING

92995-06100-00

Unavailable

6

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

7

DUCT

(438-14437-00-00)

Unavailable

8

GROMMET 839774310000

90480-14023-00

$7.49

9

COLLAR 437216330000

90387-07391-00

Unavailable

10

WASHER, SPRING

92995-06100-00

Unavailable

11

BOLT, HEXAGON

97017-06025-00

$4.24

12

BAND

90460-54062-00

Unavailable

13

JOINT, AIR CLNR 1

498-14453-01-00

Unavailable

13

JOINT, AIR CLNR 1

500-14453-01-00

Unavailable

14

CLAMP, HOSE (5H0)

90460-43179-00

$19.99

14

CLAMP HOSE 304144550000

90460-51059-00

Unavailable

15

JOINT, CARBURETOR

498-13565-02-00

Unavailable

15

JOINT, CARBURETOR

500-13565-01-00

Unavailable

16

BOLT, HEXAGON

97017-06025-00

$4.24

16

BOLT(JF7)

97080-06030-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

REED VALVE ASSEMBLY

(363-13610-00-00)

Unavailable

19

. REED, VALVE

363-13613-00-00

Unavailable

20

. STOPPER, REED VALVE

363-13616-00-00

Unavailable

21

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

22

WASHER, SPRING

92990-03100-00

Unavailable

23

GASKET,VALVE SEAT

363-13621-01-00

Unavailable
